0 reviews | Catalog: HDO4K-DPAUX D | Model: Teledyne LeCroy HDO4K-DPAUX D
DisplayPort AUX Decode Option for HDO4000
Your Price: $2,540.00
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.

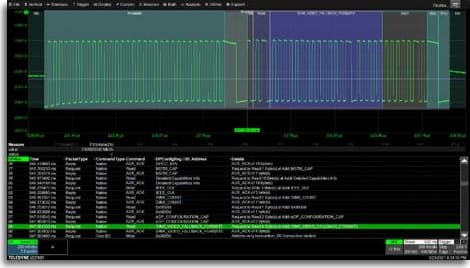

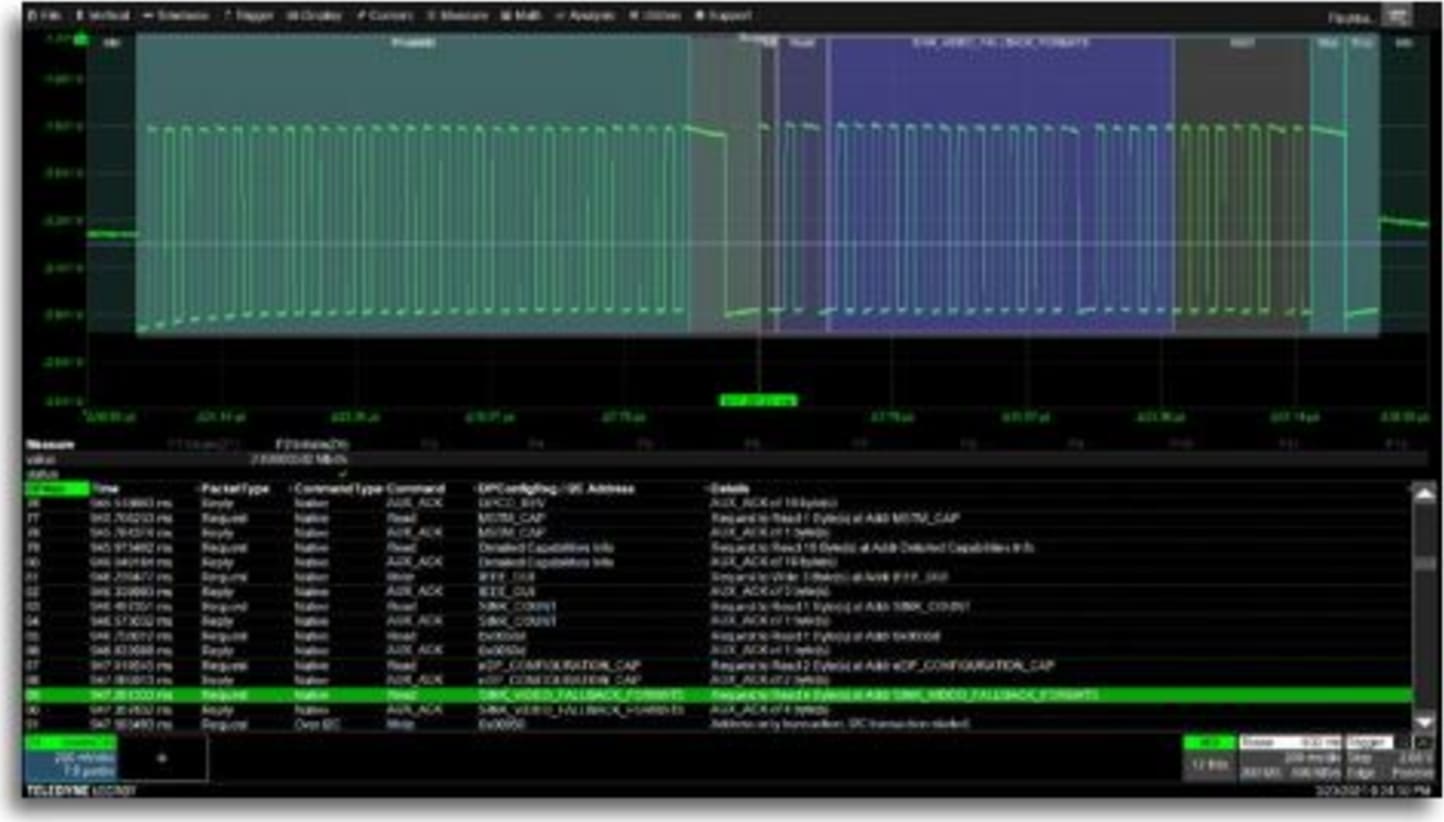

DPAUX (D) turns your oscilloscope into a DisplayPort AUX analyzer with fast and intuitive correlation of protocol data to the physical layer waveforms.

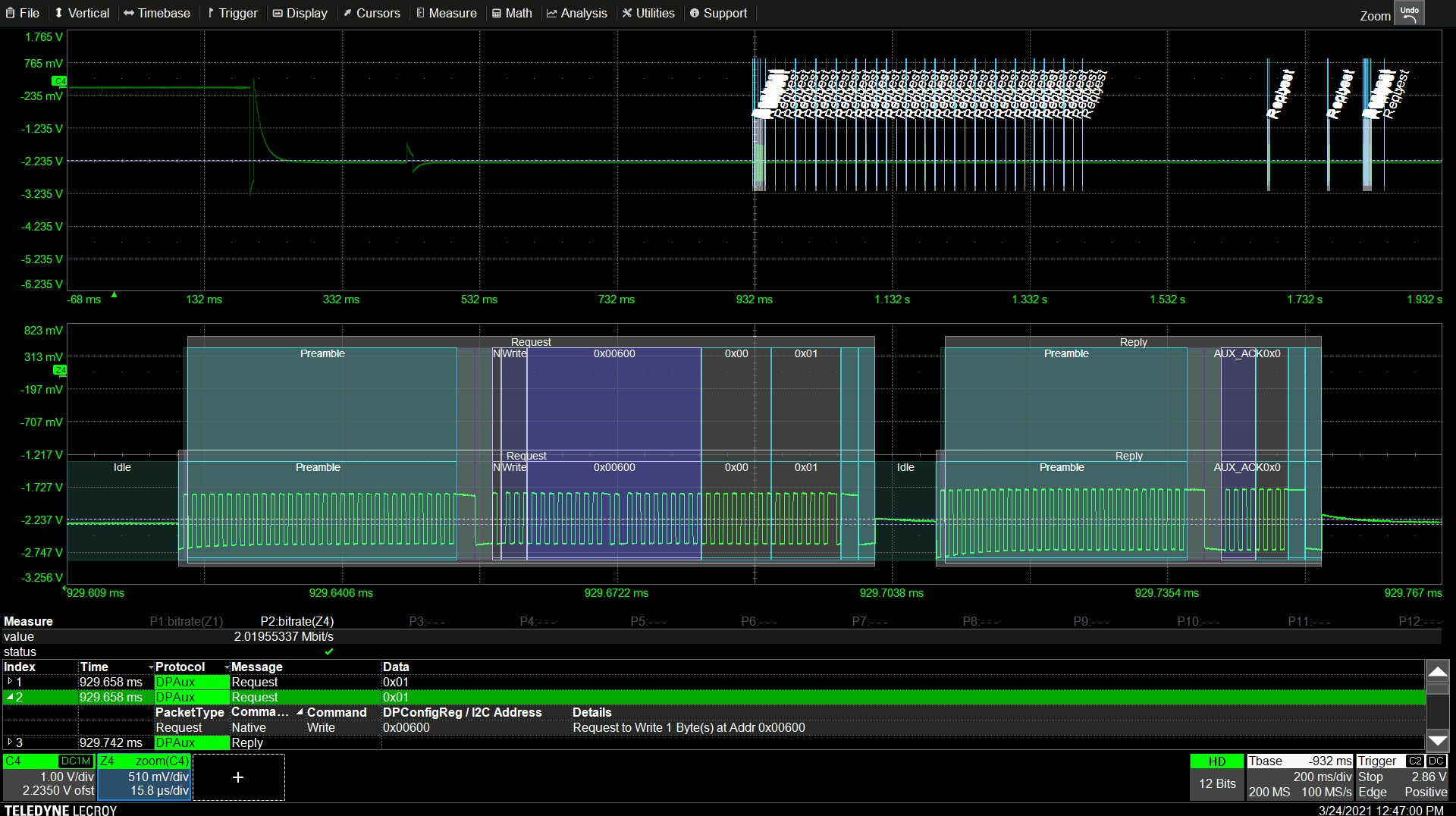

A transparent overlay with color-coding for specific portions of each protocol and the entire message frame makes it easy to understand your serial data information. Unlike other solutions, with protocol decode information away from the signal, our solution correlates the waveform and the protocol decode directly on the display. As the acquisition length is expanded or shortened, the decode overlay will adjust to show you just the right amount of information.

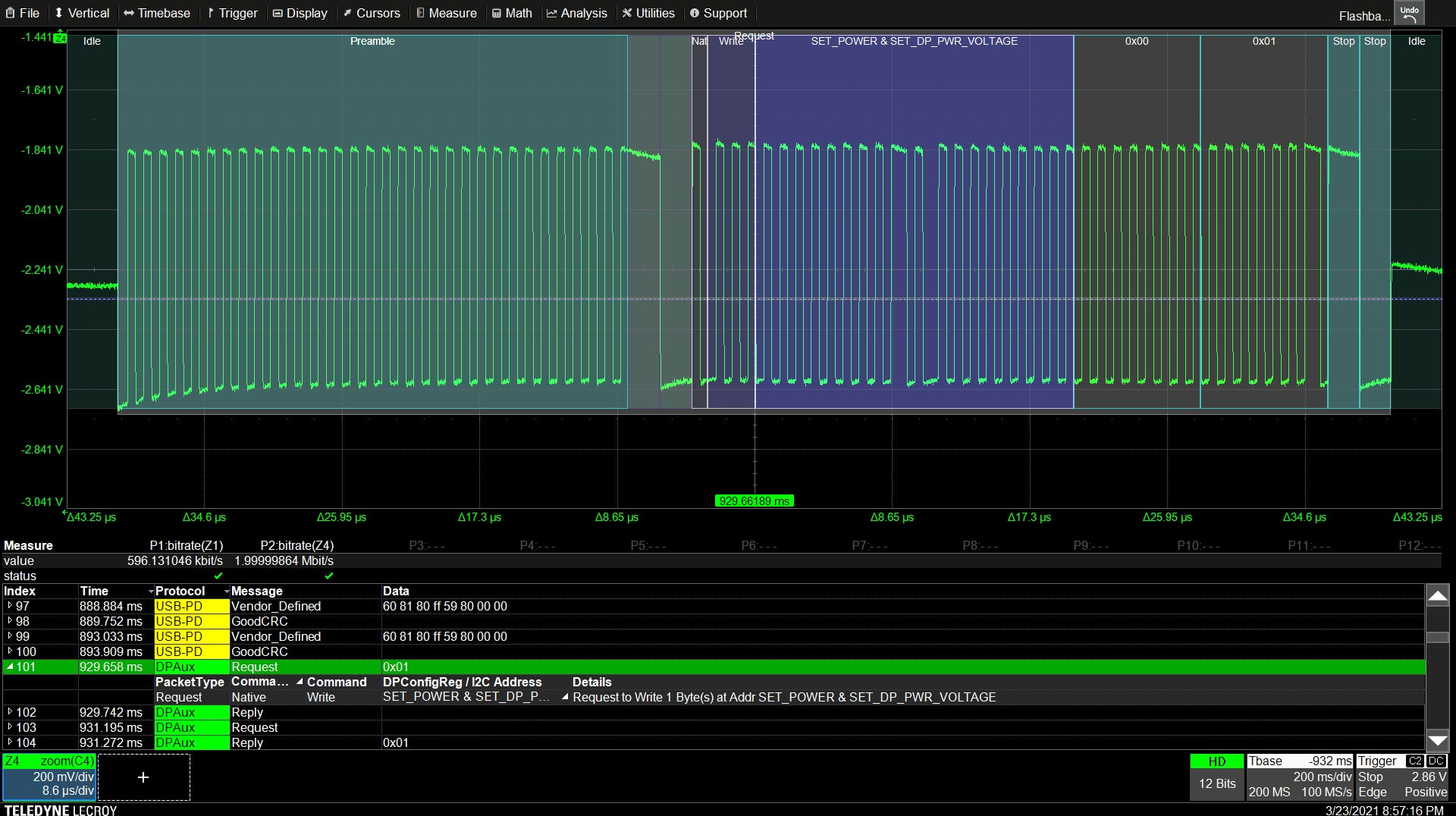

Turn the oscilloscope into a protocol analyzer with a tabular display of decoded information. Customize the table to show only the data of interest and touch a message in the table to automatically zoom to it and display it on the screen. Export the table for offline analysis. Up to four different decoded signals of any type may be simultaneously displayed in the table.

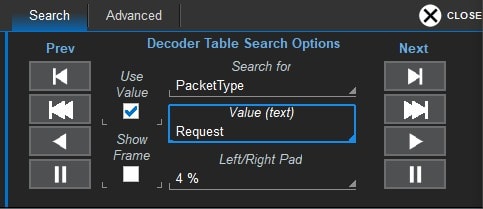

All decoders provide the ability to search through a long record of decoded data by using a variety of search criteria, or values, or simply finding the next occurrence. Pattern Search automatically creates a zoom trace of the acquired waveform and displays the selected location complete with the transparent color-coded overlay.
