Teledyne LeCroy HDO4K-CANBUS TD - CAN Trigger and Decode Option for HDO4000

Name: Teledyne LeCroy HDO4K-CANBUS TD - CAN Trigger and Decode Option for HDO4000
Brand: Teledyne LeCroy
SKU: LeCroyHDO4K-CANBUS TD
Price: 2765.00 USD
Availability: InStock

0 reviews | Catalog: HDO4K-CANBUS TD | Model: Teledyne LeCroy HDO4K-CANBUS TD

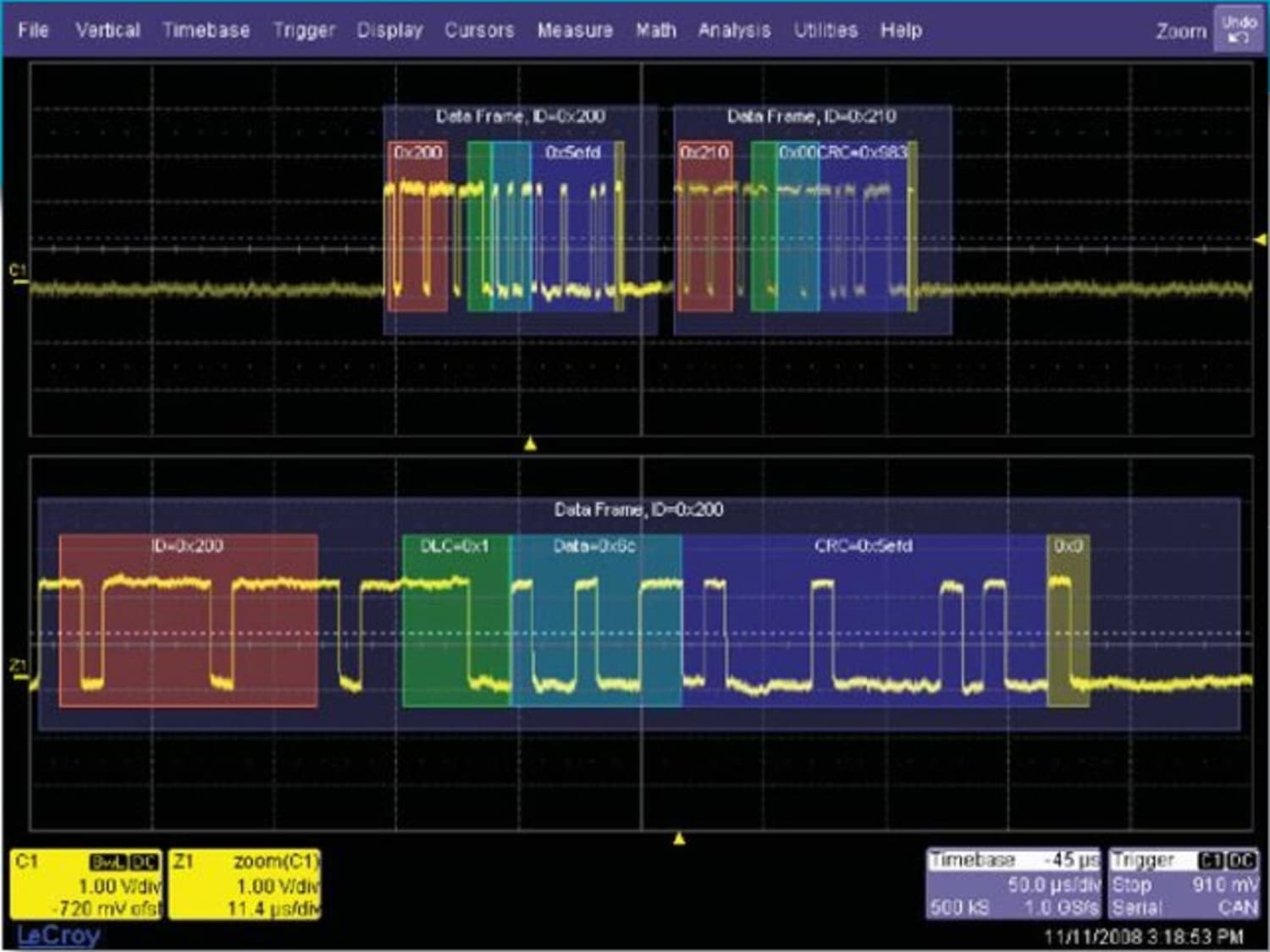

LeCroy -CANBUS TD Can Trigger And Decode Option

Compare

CAN Trigger and Decode Option for HDO4000

CAN Trigger and Decode Option for HDO4000
Error-frame red color decode highlight
DATA trigger pattern setup can be less than full bytes/nibbles and can be spread across bytes
Conditional DATA trigger definition (<, <=, =, >, >=, <>, IN RANGE, OUT of RANGE)
Conditional ID trigger definition (<, <=, =, >, >=, <>, IN RANGE, OUT of RANGE)
Supports 29-bit GM CAN Priority ID, Source ID, Parameter ID trigger and decode
Intuitive, color-coded decode overlays
Interactive protocol table with zoom and pattern search

View Product Details

Your Price: $2,765.00

Sign-in for GSA Pricing!

In Stock:

Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Teledyne LeCroy HDO4K-CANBUS TD CAN Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-CAN FDBUS TD CAN and CAN FD Trigger and Decode Option for HDO4K Osci ...	Teledyne LeCroy HDO4K-ENETBUS D ENET Bus Decode Option for HDO4K	Teledyne LeCroy HDO4K-MANCHESTERBUS D Manchester Bus Decode Option for HDO4K	Teledyne LeCroy HDO4K-NRZBUS D NRZ Bus Decode Option for HDO4K	Teledyne LeCroy HDO4K-AUTO CAN, LIN and FlexRay Trigger and Decode Package for HDO4000	Teledyne LeCroy HDO4K-LINBUS TD LIN Bus Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-FLEXRAYBUS TD FlexRay Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-EMB I2C, SPI, UART and RS-232 Trigger and Decode Package for HDO4000	Teledyne LeCroy HDO4K-I2CBUS TD I2C Bus Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-SPIBUS TD SPI Bus Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-UART-RS232BUS TD UART and RS232 Bus Trigger and Decode Option for HD ...	Teledyne LeCroy HDO4K-AUDIOBUS TD AudioBus trigger and decode option for HDO4000	Teledyne LeCroy HDO4K-DIGRF3GBUS D DigRF 3G Bus Decode option for HDO4000	Teledyne LeCroy HDO4K-DIGRFV4BUS D DigRF V4 Bus Decode option for HDO4000	Teledyne LeCroy HDO4K-DPHYBUS D MIPI D-PHY CSI-2, DSI Bus Decode option for HDO4000	Teledyne LeCroy HDO4K-ARINC429BUS ARINC 429 Bus Symbolic Decode option for HDO4000	Teledyne LeCroy HDO4K-1553 TD MIL-STD-1553 Trigger and decode option for HDO4000	Teledyne LeCroy HDO4K-USB2BUS TD USB 2.0 Bus Trigger and Decode option for HDO4000	Teledyne LeCroy HDO4K-USB2-HSICBUS D USB 2.0 HSIC Decode Option for HDO4000	Teledyne LeCroy HDO4K-PWR Power Analysis Option for HDO4000
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Teledyne LeCroy HDO4K-CANBUS TD - CAN Trigger and Decode Option for HDO4000

Symbolic trigger setup, decode, and data extraction and graph setup using (customer-supplied) DBC file
Error-frame red color decode highlight
DATA trigger pattern setup can be less than full bytes/nibbles and can be spread across bytes
Conditional ID definition (<, <=, =, >, >=, <>, IN RANGE, OUT of RANGE)
Supports 29-bit GM CAN Priority ID, Source ID, Parameter ID trigger and decode

CAN Trigger Decode (TD) Solution

The CAN Trigger Decode (TD) solution provides high performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.

Symbolic (DBC) File Support

CAN and CAN FD Symbolic decode options both support use of a customer-supplied DBC file for signal selection for triggering and CAN to Value serial data DAC setup. Additionally, the decode annotation is in Symbolic format as well, with complete message and signal structures described.

Trigger Flexibly Across Data Bytes

CAN remains the most used vehicle serial data bus. Many vehicle bus software architectures are very message dense, and data for a single message is spread across multiple data bytes. The hexadecimal and measurement toolsets permit isolation of specific bit-level data patterns in one or more data bytes, e.g., data location in bits 17-28 in data bytes 3, 4, and 5. This provides significant advantages in isolating the exact information or behavior you need. Symbolic message/signal setup is even simpler.

LeCroy CANbus TD and TDM Specification
Definition
Protocol Setup	Select Bitrate (10, 25, 33.333, 50, 83.333, 100, 125, 250, 500, 1000 kb/s or user‐defined between 10‐1000 kb/s).
Decode Capability
Format	Hexadecimal
Decode Setup	Threshold definition required. Default is to Percent amplitude. Select Bit Rate.
Decode Input	Any analog Channel, Memory or Math trace.
Number of Decoded Waveforms	Up to 4 buses may be decoded at one time. In addition, zooms can be displayed (with decoded information).
Location	Overlayed over DATA waveform, on Grid. (Use multi‐grid if there is more than one decoder ON)
Visual Aid	Color Coding for FRAME, ID, DLC, DATA, CRC, Ack, Stuff Bits and Errors. Decode information is intelligently annotated based on timebase setting.
Trigger Capability
Format	Hexadecimal or Binary
Trigger Setup	Trigger on All Frames, Frame ID, ID with Data, Remote Frames, or Error Frames.
Address (ID) Condition Setup	Specify one Frame ID or a range of Frame IDs. Frame ID trigger can be combined with Data.
Conditional Trigger Setup	Conditional Frame ID and Conditional Data triggering available. Choose from <=, <, =, >, >=, <>, in range, out of range or don’t care conditions.
Data Setup	Hexadecimal: # Data Bytes = 0 to 8. Data can be defined by nibble. Triggers on that data pattern regardless of position. Binary: Any combination of 0,1, or X for 1‐64 bits. Triggers on that data pattern regardless of position.
Bit Rates	10, 25, 33.333, 50, 83.333, 100, 125, 250, 500, 1000 kb/s or user‐defined between 10‐1000 kb/s.
Trigger Input	Any analog Channel or the EXT input.
Trigger Design	Internal to oscilloscope, settable like any other oscilloscope trigger.
Search Capability
Search Options	Search for Any Frame, Any Error or Frame ID in Hexadecimal format.
Measure and Graph Capability	CANbus TD	CANbus TDM
CAN Timing Measurements	Not Applicable	CAN‐CAN, CAN‐Analog, Time@CAN, CAN Message Bit rate.
CAN Data Extraction	Not Applicable	CAN‐Value.
CAN Bus Load Measurements	Not Applicable	CAN Bus Load %.
Graphing Functions	Not Applicable	Track, Trend and Histogram of CAN measurements.
