| Specifications |
| Data Interfaces |

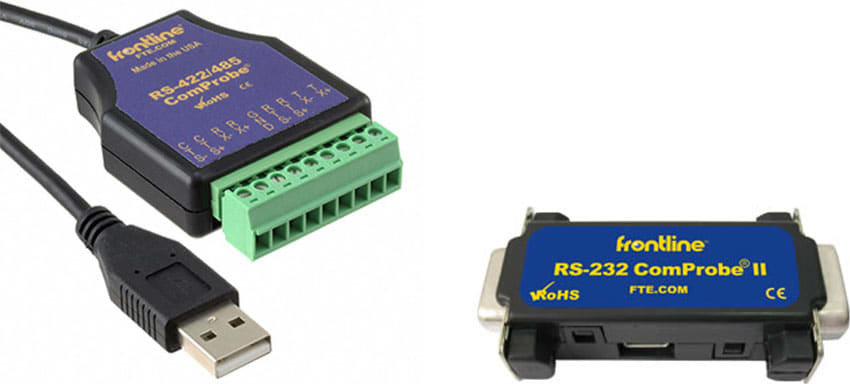

'RS-232 ComProbe II' for Async RS-232 communications; 'RS-422/485 ComProbe' for Async RS-422/485 communications; |
| Data Rates |
Up to 921.6K bps, including support for user-defined non-standard data rates. |
| Operating Modes Monitor |
DTE, Monitor DCE, & Monitor Both available for RS-232 ComProbe II and RS-422/485 ComProbe; Spy Mode and Transmit modes available only for built-in PC serial ports. |
| Communication Modes |
Asynchronous. |
| Bit Order |
LSB (normal) or MSB (reversed) first. |
| Flow Control |
Software (including user-defined Xon/Xoff), Hardware (RTS/CTS and DTR/DSR). |
| Character Sets |
ASCII, 7-bit ASCII, EBCDIC, Baudot. |
| Parity |
None, Even, Odd, Mark, Space. |
| Word Length |
5, 6, 7, or 8 bits. |
| Stop Bits |
1, 1.5, or 2 bits. |
| Timestamping |
Absolute and relative timestamping; <1 microsecond resolution. |
| Additional Features |
Write custom decodes using DecoderScript language; Get all future software updates for free. |
| Protocols Supported |
Modbus RTU, Modbus ASCII, Async PPP, PPP, SLIP, Saia-Burgess S-Bus, TCP/IP (including ARP, RARP, DNS, HTTP, ICMP, IGMP, NBDS, NBNS, NBSS, SMTP, and UDP). |
Minimum System Requirements:
- Windows 7 (32-bit & 64-bit), Windows 8.1 (32-bit & 64-bit), Windows 10 (32-bit & 64-bit)
- Pentium 1Ghz processor or faster.
- RAM: 1 GB minimum, 2 GB recommended.
- 50 MB free Hard Disk space (capture file size is only limited by disk size).
- One USB 2.0 Port (for RS-232 ComProbe II & RS-422/485 ComProbe).
- One Serial Port (optional Transmit Mode).
|
