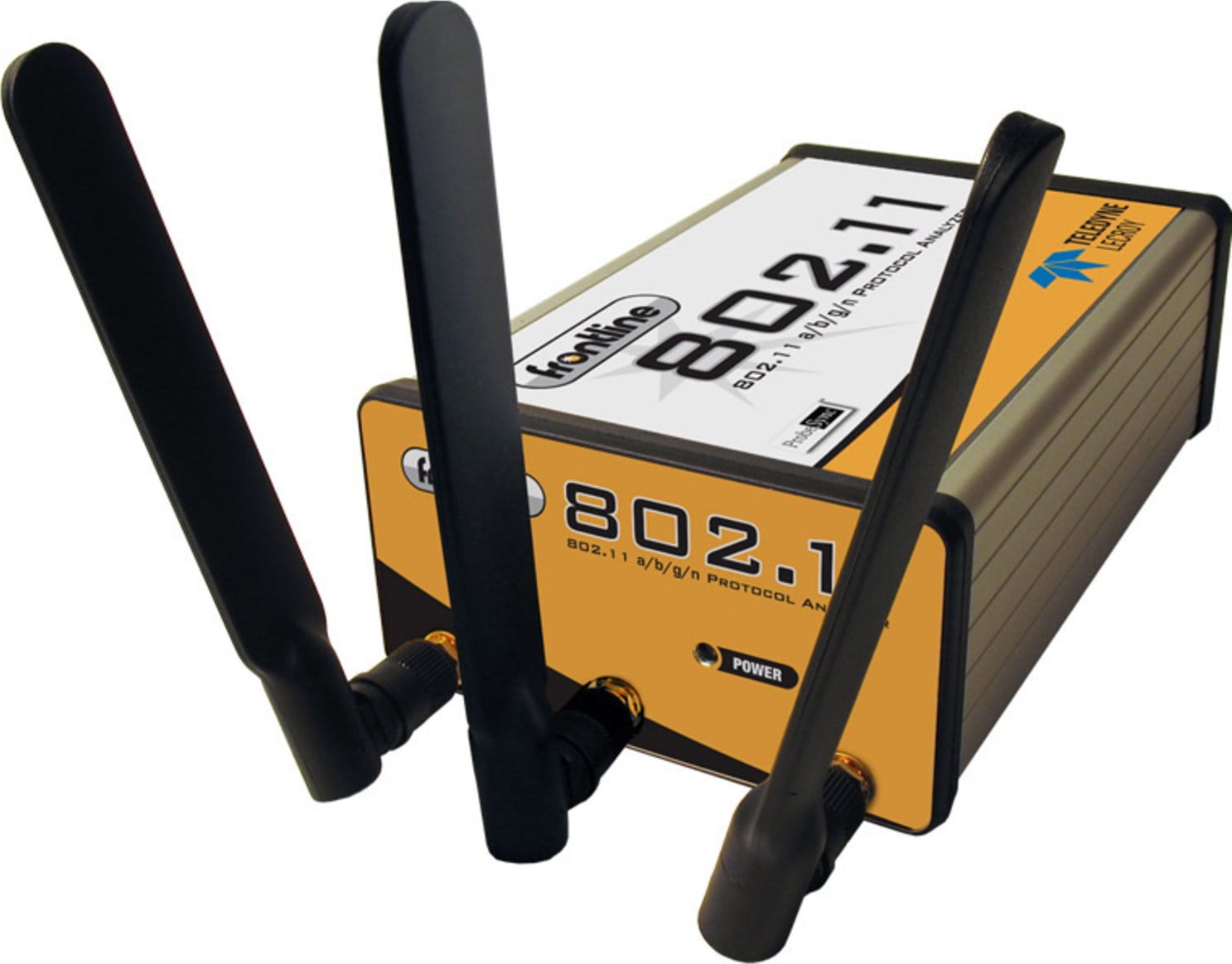

Teledyne LeCroy Frontline 802.11 - a/b/g/n Protocol Analyzer

Bluetooth Coexistence

The analysis of 802.11 and Bluetooth data packets in one view is possibly one of the most challenging tasks for wireless device developers. Capturing the precise timing, size, and frequency of each and every packet is essential to successfully develop and debugging devices using both technologies, and until now has been, at best, an elusive objective.


• Massive buffer - fewer dropped packets
• 3x3 MIMO (3 streams)
• Precise packet synchronization with Bluetooth data with the Frontline Sodera

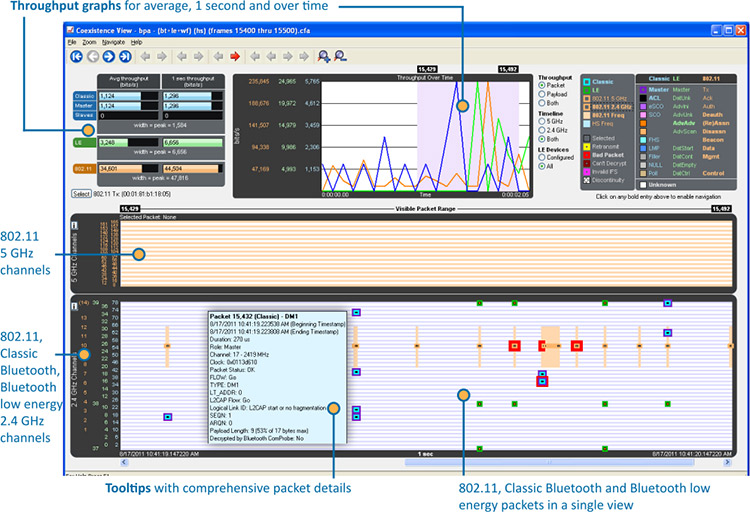

• Improved coexistence view
• Spectrum analysis

Either as a stand-alone 802.11 or in combination with the Frontline Sodera or BPA 600, the Frontline 802.11 is the precise and comprehensive analysis tool you need for 802.11 and Bluetooth over 802.11 wireless communications.

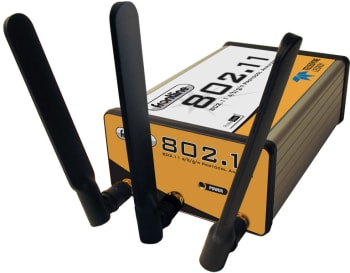

The Frontline 802.11 Hardware Interface

The Frontline 802.11 Protocol Analyzer includes the portable and robust 802.11 3x3 a/b/g/n hardware interface, which supports connectivity to 802.11 wireless communications.

The 802.11 a/b/g/n hardware interface is one member of an extensive arsenal of technology-specific hardware interfaces, all functioning with the powerful Frontline software. This modular approach allows greater flexibility in protocol analysis and debugging, and provides comprehensive views over virtually any combination of protocols.

Supported Configurations

• OS Supported: Windows 7, 8 and 10
• USB Port: USB 2.0 or USB 3.0 High-Speed

Minimum System Requirements

• Processor: Core i5 processor at 2.7 GHz
• RAM: 4 GB
• Free Hard Disk Space: 20 GB

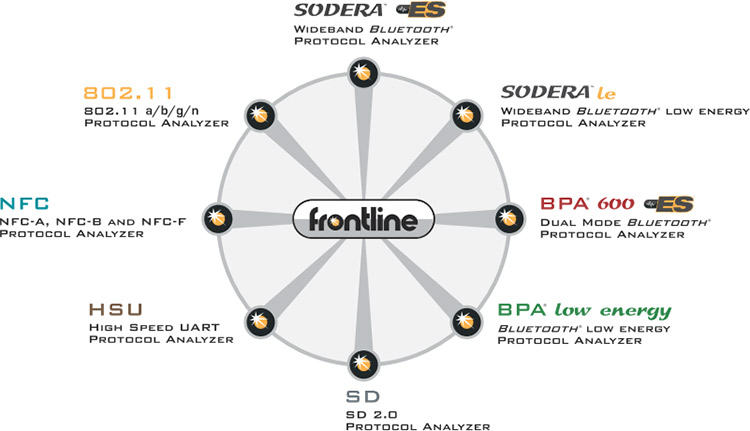

The Frontline Modular Approach

Frontline software is at the core of Frontline protocol analysis, allowing technology - specific hardware interfaces to work individually or in combination with other hardware interfaces. This modular approach gives the developer or analyst the widest possible range of scenarios for debugging complex communications.
