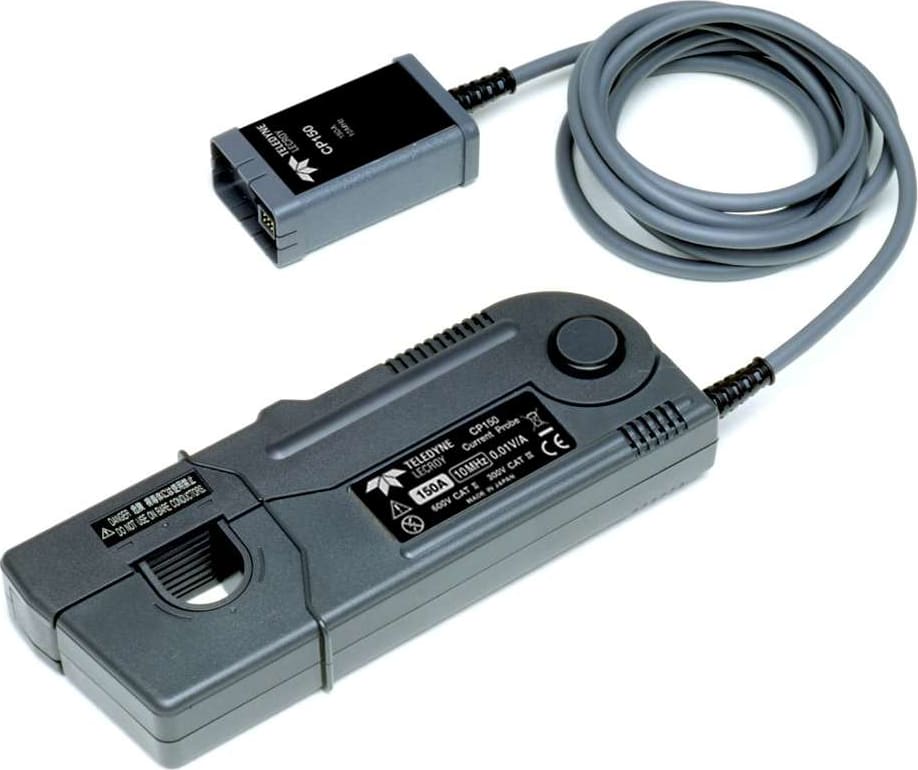

LeCroy CP150-6M 150 A, 5 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse, 6 Meter Cable, Not EMC compliant

150 Arms continuous current
500 A peak
10 MHz bandwidth
6 meter cable
Not EMC compliant

Fully Integrated with Oscilloscope

Many current probes require external power supplies or amplifiers to display a waveform on the oscilloscope screen. All Teledyne LeCroy current probes are powered through the Teledyne LeCroy ProBus connection and require no additional hardware. Along with providing power, the ProBus connection allows the current probe and oscilloscope to communicate, resulting in current waveforms automatically displayed on screen in Amps, and calculated power traces scaled correctly in Watts. This full integration also allows for Degauss and Autozero functions to be done directly from the oscilloscope with a single button press.

Applications

Teledyne LeCroy current probes are available in a wide range of models for a wide range of applications. The full range of Teledyne LeCroy current probes includes models with bandwidths up to 100 MHz, peak currents up to 700 A and sensitivities to 10 mA/div. Multiple current probes can be used together to make measurements on three-phase systems, or a single current probe can be used with a voltage probe to make accurate instantaneous power measurements. Teledyne LeCroy current probes are often used in applications such as the design and test of switching power supplies, motor drives, electric vehicles, and uninterruptible power supplies.

Model	Max Continuous Input Current	Max PeakCurrent	Bandwidth	Minimum Sensitivity	Coupling	Max Conductor Size (diameter)	Interface
CP030	30A	50A <10µs	50 MHZ	10mA/div*	AC, DC, GND	5mm	Probus, 1MO only
CP031	30A	50A <10µs	100 MHZ	10mA/div*	AC, DC, GND	5mm	Probus, 1MO only
AP015	30A	± 50 A < 10 s.	50 MHz	10 mA/div	AC, DC, GND	5 mm	Probus, 1MO only
CP150	150 A	500 A <30 µs	10 MHz	200 mA/div	AC, DC, GND	20 mm	Probus, 1MO only
CP500	500 A	700 A	2 MHz	200 mA/div	AC, DC, GND	20 mm	Probus, 1MO only

General Specifications
	CP031	CP030	AP015	CP150	CP500
Electrical Characteristics
Max. Continuous Input Current	30 A			150A	500 A
Bandwidth	100 MHz	50 MHz	50 MHz	10 MHz	2 MHz
Max. Peak Current at Pulse Width	50 A ≤ 10 µs		50 A ≤ 10 s	500 A ≤ 30 µs	700 A
Rise Time (typical)	≤ 3.5 ns	≤ 7 ns		< 35 ns	< 175 ns
Minimum Sensitivity	20 mA/div		10 mA/div	20 0mA/div
Max. In-Phase Current	-			500 A	1150 A
Low-Frequency Accuracy	1%
AC Noise	≤ 2.5 mA		-	5≤ 25 mA	25 mA
Coupling	AC, DC, GND
General Characteristics
Cable Length	1.5 m		2 m		6 m
Weight	240 g		300 g	500 g	630 g
Max. Conductor Size (diameter)	5 mm			20 mm
Interface	ProBus, 1 M Ω only^‡
Usage Environment	Indoor
Operating Temperature	0˚ C to 40˚ C
Max. Relative Humidity	80%
Max. Altitude	2000 m
Maximum Insulated Wire Voltage	300 VCAT I, 150 V CAT II	300 VCAT I		600 VCAT I, 300 V CAT II

0

Name: LeCroy CP150-6M 150 A, 5 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse, 6 meter cable, not EMC compliant
Brand: Teledyne LeCroy
SKU: LeCroyCP150-6M
Price: 6640.00 USD
Availability: InStock

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review



Product	Teledyne LeCroy CP150-6M 150 A, 5 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse, ...	Teledyne LeCroy CP030 30A, 50 MHz Current Probe - AC/DC, 30 A rms, 50 A Peak Pulse, 1.5 me ...	Teledyne LeCroy CP031 30A, 100 MHz Current Probe - AC/DC, 30 A rms, 50 A Peak Pulse, 1.5 m ...	Teledyne LeCroy CP150 150 A, 10 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse, 2 ...	Teledyne LeCroy CP500 500 A, 2 MHz Current Probe - AC/DC, 500 A rms, 700 A Peak Pulse, 6 m ...	Teledyne LeCroy CP030A 30A, 50 MHz High Sensitivity Current Probe - AC/DC, 30 A rms, 50 A ...	Teledyne LeCroy CP031A 30A, 100 MHz High Sensitivity Current Probe - AC/DC, 30 A rms, 50 A ...	Teledyne LeCroy CP030-3M 30 A, 10 MHz Current Probe - AC/DC, 30 A rms, 50 A Peak Pulse, 3 ...
Price
In Stock
Maximum Bandwidth	10 MHz	50 MHz	100 MHz	10 MHz	2 MHz	50 MHz	100 MHz	50 MHz
Maximum Current	150 A	30 A	30 A	150 A	500 A	50 A	50 A
CAT Voltage Rating	II, III	I	I	II, III	I, II	I	I	I
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Accessories/Probes/Oscilloscope Probes/Oscilloscope Current Probes Template
Maximum Bandwidth	10 MHz
Maximum Current	150 A
CAT Voltage Rating	II, III
Safety Voltage Rating	300V, 600V
Test Equipment General Attributes
Country of Origin	Japan
