| Measurement (Main Channel) |
Main Channel
Mean Squared Error - (MSE) |
Tests quality of the Main channel (per pair)
-20dB and greater: excellent up to 300MHz (green)
-15.5dB: good for 225MHz (yellow); acceptable for 300MHz (yellow)
-10dB: acceptable for 148.5MHz (yellow); poor for 225MHz (red) |
Main Channel
Maximum Errors (MaxErr) |
0-30: excellent (green)
31-55: good (yellow)
56-64: acceptable (yellow)
greater than 64: poor (red) |
| Measurements (Aux Channel) |
| Aux Channel Errors Maximum Errors (MaxErr) |
Tests quality of the Aux Channel
0-30: excellent (green)
31-55: good (yellow)
56-64: acceptable (yellow)
greater than 64: poor (red) |

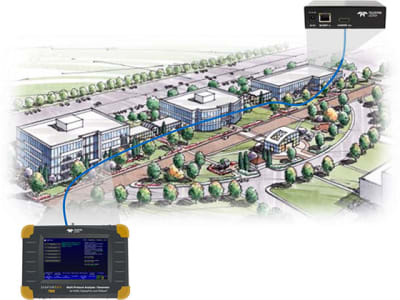

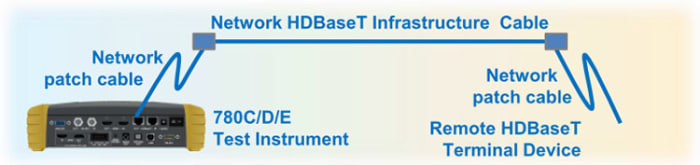

| HDBaseT Remote Terminal Device (P/N 95-00146) (Specs - Functional) |
| HDBaseT - 780 Compatibility |
HDBaseT 1.0; works with 780C, 780D, 780E Instruments |
| Software |
780C, 780D, 780E must have recent software, please contact customer support |
| Connector |
(1) 8P8C (RJ-45) Rx; (1) HDMI Type A Hi-Speed Tx |
| Video Max Pixel Rate |
300 MHz; up to WUXGA, 4K Ultra HD (4K 30Hz or 4K 60Hz w/ 4:2:0 pixel encoding) |
| Range |
70 meters over Cat5e/6/7 |
| HDBaseT Remote Terminal Device (P/N 95-00146) (Specs – Mechanical/Power) |
| Power Adapter |
5V/1.2 amp DC Power Adapter; 5.5 W; AC input: 100-120 VAC, 47-63Hz |
| LEDs |
RJ-45 connector: Orange: blinking = no video detected (low power), solid = video;
Green: blinking = HDCP off, solid = HDCP On |
| Weight |
0.5 LBS; 0.23 Kg |
| Size |
Height: 0.88 in. (2.25 cm) Width: 2.2 in. (5.5 cm) Depth: 3.22 in. (8.2 cm) |
| Environmental Operating |
Temp: 32 to 104 (F); 0 to 40 (C) |
