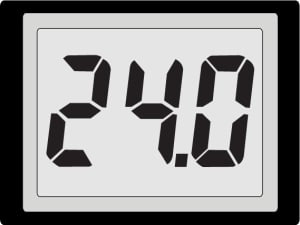

Lascar SP 5-1200-BL Panel Instrument

Name: Lascar SP 5-1200-BL Panel Instrument
Brand: Lascar
SKU: LascarSP 5-1200-BL
Price: 62.49 USD
Availability: InStock

0 reviews | Model: Lascar SP 5-1200-BL

Compare

2-wire signal-powered meter with screw terminals and splashproof protection

2-Wire Operation (excluding backlighting)
4 to 25V d.c. Full Scale Reading
18mm / 0.7" LCD Digit Height
Reverse Polarity Protection
No Calibration Required (pre-calibrated for use)
Splashproof
LED Backlighting (via separate supply)
Screw Terminal Connections

View Product Details

List Price: $62.49

In Stock:

View Payment Options

Recommended for you

Lascar SP 5-1200-BL 2-Wire Signal-Powered Meter

This low cost, compact indicator is ideally suited for low or high volume applications. SP 5-1200-BL is an easy to mount LCD digital panel meter with LED backlighting. The module features a 4 to 25V measurement range with 100mV resolution and is powered from the signal it is measuring. Only valid readings are displayed the module indicates "LO" at voltages below 4V and "HI" at voltages above 25V. Screw terminals allow for quick and easy connection. The module is panel mounted using the metal clip provided and a rubber seal is included, providing splashproof protection for the unit when fitted to the meter during installation. This is a popular part, normally stocked in high quantity and suitable for new designs.

Specification	Min.	Typ.	Max.	Unit
Accuracy (over all error)		0.2		% (±1 count)
Linearity			±1	Count
Valid displayed reading*	4.0		25.0	V d.c.
Resolution		100		mV d.c.
Sample rate		3		samples/sec
Operating temperature range	0		50	°C
Supply voltage (Meter)	3		50	V d.c.
Supply voltage (Backlighting)		5		V d.c.
Supply current (9V d.c.) (Meter)		1.5		mA
Supply current (9V d.c.) (Backlighting)		50		mA

*At voltages below 4.0V d.c., the LCD will display and will ultimately go blank.
At Voltages in excess of 25.0V d.c., the LCD will display .
Do NOT exceed 50V d.c., as this may damage the meter.
The module includes reverse polarity protection up to 30V for up to 30 seconds.
Operation and accuracy at voltages above 25.0V or below 4.0V are not specified

Test Equipment General Attributes
Unique Features	2-Wire Operation (excluding backlighting) 4 to 25V d.c. Full Scale Reading 18mm / 0.7" LCD Digit Height Reverse Polarity Protection No Calibration Required (pre-calibrated for use) Splashproof LED Backlighting (via separate supply) Screw Terminal Connections
Safety Approval	RoHS
Country of Origin	United Kingdom
