Temperature Datalogger

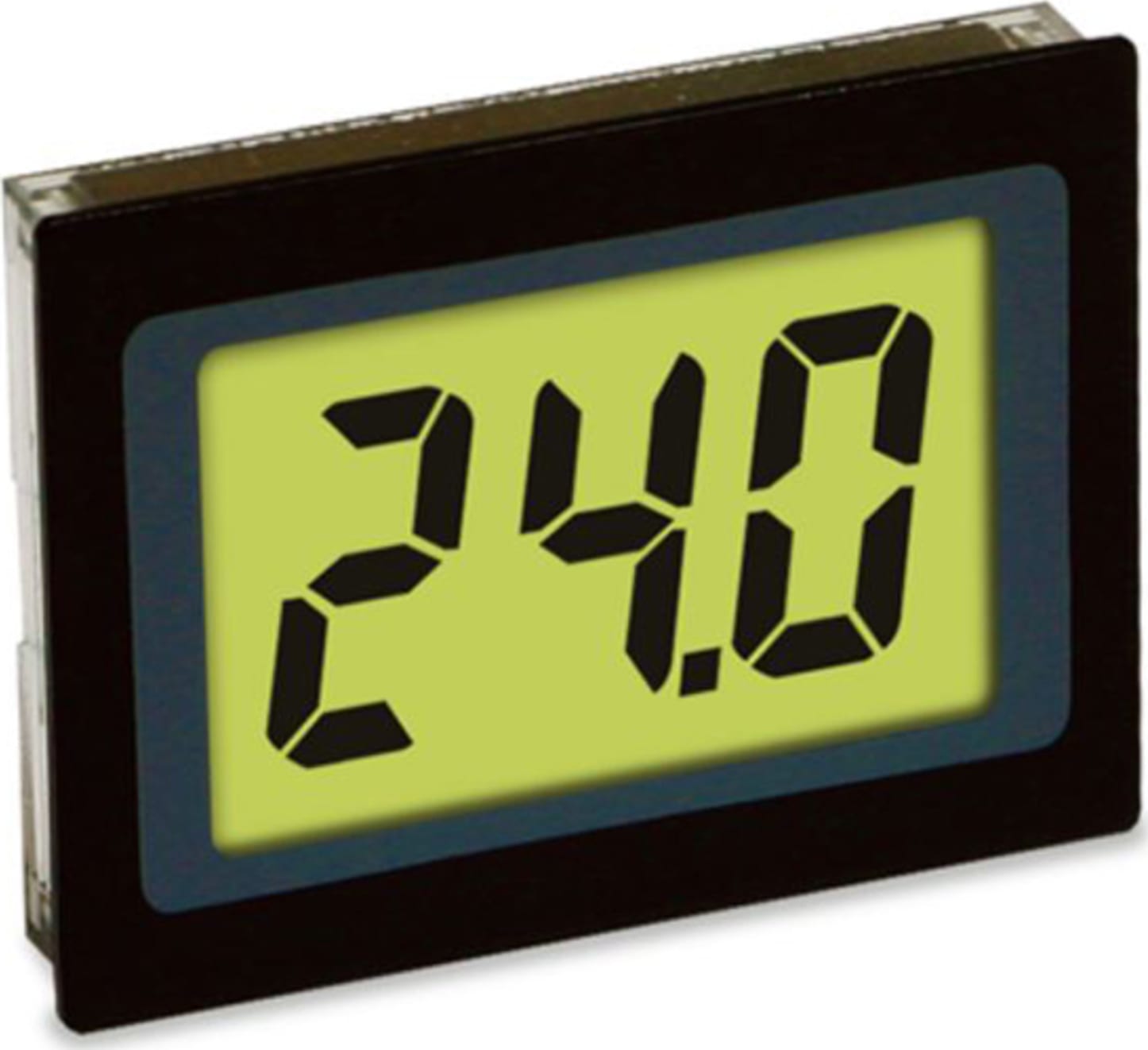

This ultra low profile panel meter features a 3 digit LCD with 18mm (0.7") digit height and LED backlighting. With a 4 to 40 V d.c. scale, this meter can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. The SP 5-1200-40 is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
This low cost, compact indicator is ideally suited for low or high volume applications. SP 5-1200-40 is an easy to mount LCD digital panel meter. The module features a 4 to 40V measurement range with 200mV resolution and is powered from the signal it is measuring. Only valid readings are displayed; the module indicates "LO" at voltages below 4V and "HI" at voltages above 40V. Screw terminals allow for quick and easy connection. The module is panel mounted using the metal clip provided and a rubber seal is included, providing splashproof protection for the unit when fitted to the meter during installation.
