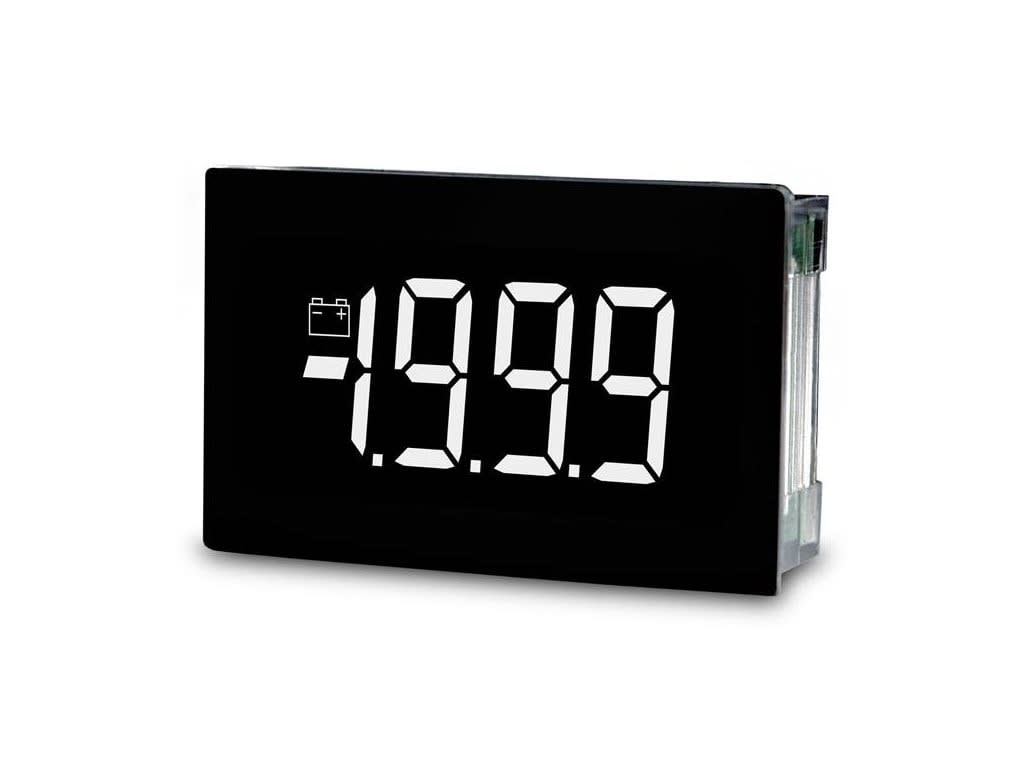

Splash-Proof LCD Voltmeter with Bright White Digits on a Black Background
The SP 400-EB-W Features an enhanced black LCD and 200mV D.C. measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The SP 400-EB features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. Enhanced contrast negative mode LCD with LED backlighting ensures excellent readability under all light conditions. The module is easily fitted into the panel, using the fixing clip provided. The module's low cost means it will suit high and low volume applications. The design of the panel meter's housing ensures splash proofing using the supplied seal.
This ultra low profile panel meter features a 3½ digit black LCD with 9.75mm (0.38") white digits. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 9-way SIL socket and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. The SP 400-EB-W is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
