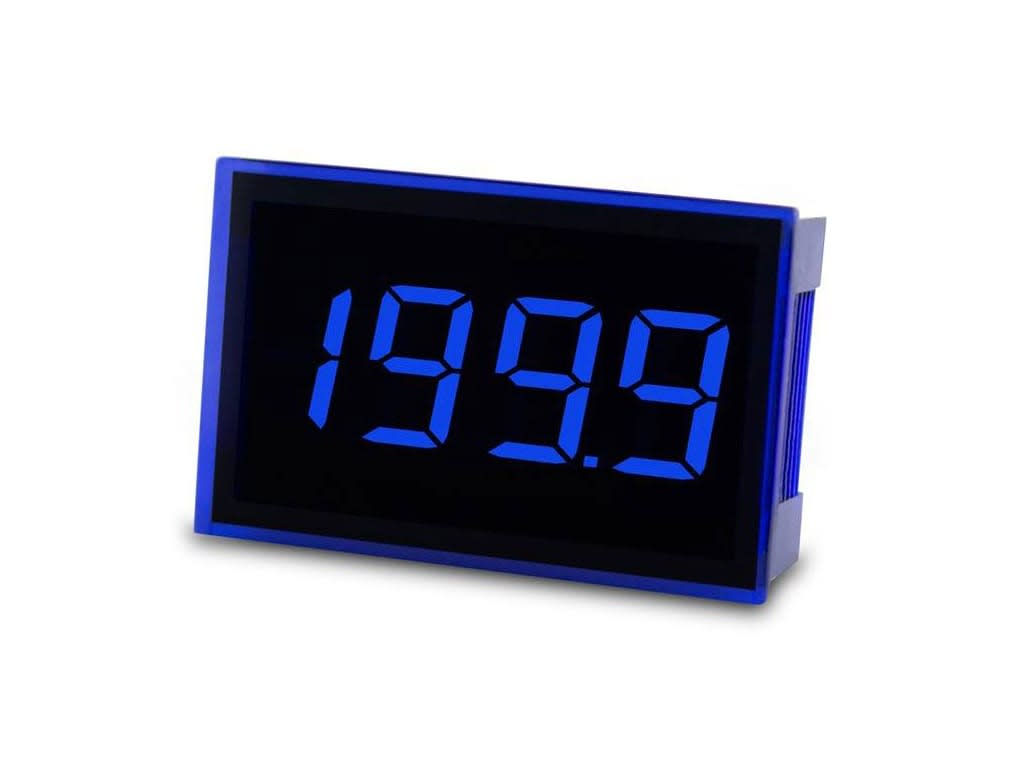

Splash-Proof Ultra Low Profile LED Voltmeter
The SP 300-BLUE features a 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The SP 300-BLUE features a negative rail generator which enables the meter to measure a signal referenced to its own power supply 0V. The blue LED display ensures excellent readability under low light conditions. The module is easily fitted into the panel, using the fixing clip provided. The module's low cost means it will suit high and low volume applications. The design of the panel meter's housing and seal ensures splash proofing in many applications.
This ultra low profile panel meter features a 3½ digit blue LED display with 9.4mm (0.37") digit height. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into an 8-way SIL socket and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. The SP 300-BLUE is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
