Lascar SP 200 Splash-Proof Ultra Low Profile LCD Voltmeter (12 Pin Version)

Typical Applications

The SP 200 is suitable for a wide variety of applications.

• Precision Instrumentation Systems
• Power Supply Monitoring
• Hand held instruments
• Panel-Mount Indication
• Automotive Projects

The SP 200 features a 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The SP 200 features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. LED backlighting ensures excellent readability under low light conditions. The module is easily fitted into the panel, using the fixing clip provided. The module's low cost means it will suit high and low volume applications. The design of the panel meter's housing ensures splash proofing using the supplied seal.

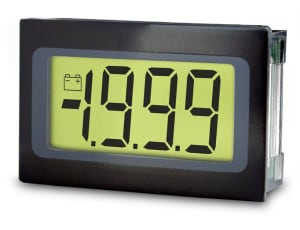

This ultra low profile panel meter features a 3½ digit LCD with 9.75mm (0.38") digit height and green LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into two 6-way SIL sockets and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. The SP 200 is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
