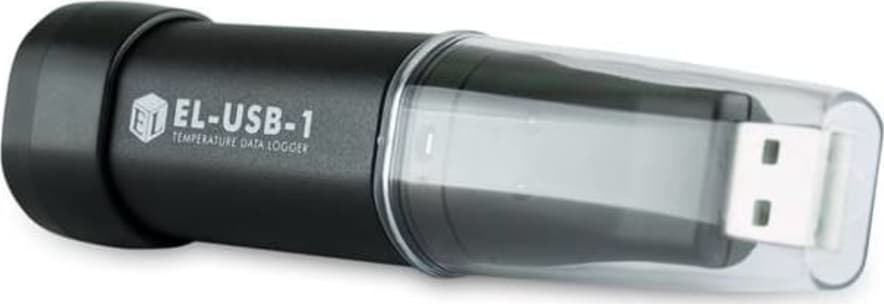

Temperature Data Logger with USB Interface Lascar ELUSB1 EL USB 1 EL-USB-1
The EL-USB-1 is a USB temperature data logger with a measurement range of -35 to +80°C (-31 to +176°F). The data logger can store up to 16,382 readings and is supplied with a long-life replaceable lithium battery, allowing the unit to log data continually for at least one year (depending on logging rate and temperature). The status of EL-USB-1 is indicated by flashing red, green and orange LEDs. The data logger is protected against moisture to IP67 standard when the protective cap is fitted.
Data logger configuration software is supplied, allowing the user to easily set-up the data logger. Selectable parameters include logging rate, measurement units, high & low alarms and start-time. The logged data stored in EL-USB-1 is downloaded via the configuration software. Once downloaded data can be graphed, printed or exported to other applications. The data logger configuration software is compatible with Windows 2000/XP/Vista(32-bit only).
This is a popular part, normally stocked in high quantity and suitable for new designs. Download the latest version (v4.0) of the configuration and graphing software from the link below.
