The EL-GFX-2+ standalone USB data logger measures and stores up to 252,928 temperature and humidity readings over a -30 to +80ºC (-22 to 176°F) and 0 to 100%RH range at a resolution of 0.1ºC (0.1°F) and 0.1%RH.
Using the Windows control software the user can quickly set up the logger name, sample rate, alarm settings and start mode (immediate start, push to start, delayed start or temperature/humidity triggered start). This software can later be used to download the stored data which can be graphed, printed and exported to other applications.
The data logger features a dot-matrix LCD and three face-buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC. Users can reset the maximum/minimum reading using the on-screen menu; this introduces an ‘event marker’ into the data which can later be viewed in the graphing software (‘Mark Events’ option) and the data file after download.
The data logger is supplied with two replaceable ½AA batteries.
High Accuracy Temp/ RH Data Logger with Graphic Screen

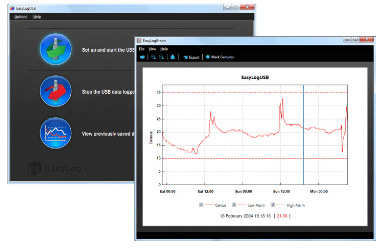

EL-WIN-USB (CONTROL SOFTWARE)
Easy to install and use, the control software runs under Windows XP, Vista and Windows 7. The software is used to set-up the data logger as well as download, graph and export data to Excel. Each stored logging session is saved as a separate file.
The software allows the following parameters to be configured:
![OWL_EL-WIN-USB]()
-
Logger name
-
Measurement parameter (ºC or ºF)
-
Logging Rate (customisable between 10 seconds and 1 hour)
-
High and low temperature alarms
-
Immediate, delayed, push-button or temperature/humidity triggered start mode
-
Disable or enable LEDs and sounder with delayed activation
-
Display and backlight behaviour after button press

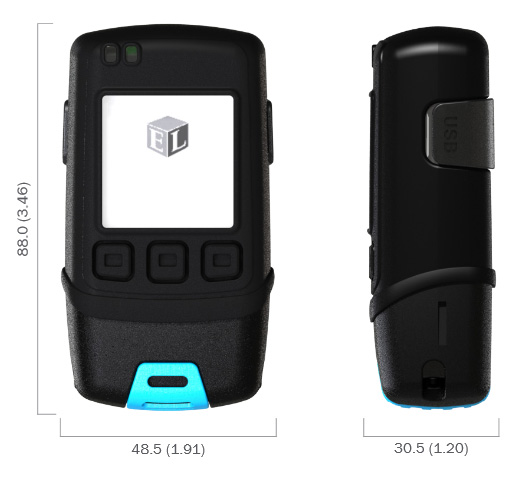

DIMENSIONS
All dimensions in mm (inches)
![OWL_Dimensions]()
High Acuracy Temp/RH Data Logger with Graphic Screen

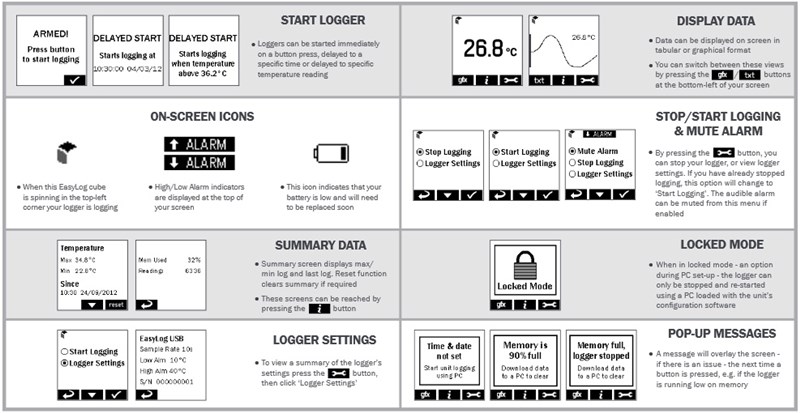

MENU BUTTON FUNCTIONS AND LED SCREEN INDICATION
![OWL_MENU_BUTTON]()
Please note that screens may vary slightly depending on model. EL-GFX-1 screens shown.
BATTERY INFORMATION
We recommend that you replace the batteries every 4 months, or prior to logging critical data.
Replacement
The EL-GFX-2+ does not lose its stored readings when the batteries are discharged or when the batteries are replaced; however, the data logging process will be stopped. If the batteries are changed within a 2 minute window the EL-GFX-2+ will retain its settings (internal clock and logging mode). This will allow logging to be restarted without additional connection to a PC via USB.
Only use 2 x 3.6V ½AA lithium batteries. Do not mix battery types and do not mix new and old batteries. Before replacing the batteries, unplug the EL-GFX-2+ from the PC.
