Lascar EL-CC-2-004 PK10 - Single Use Temperature & Relative Humidity Monitor, Ambient Pharmaceuticals, 25°C / 8°C

• Monitoring Frozen Goods
• High alarm level: -16°C
• Low alarm level: -20°C
• Single use with up to 12+ months battery life

The ultra low cost single-use EL-CC-2-004 PK10 Ambient Pharmaceutical Goods data logger measures and stores both temperature and humidity information. The unit comes pre-configured with High 25°C, Low 8°C Alarms - simply press the button to start logging. During a logging session, pressing the button will light up the status LEDs to give a quick indication of whether the temperature has exceeded an alarm condition at any point.

Once your session is completed, tear open the IP67-rated plastic wallet to reveal the USB connector and plug it in to your PC. Use the free EasyLog CC software for Windows to download and graph the data

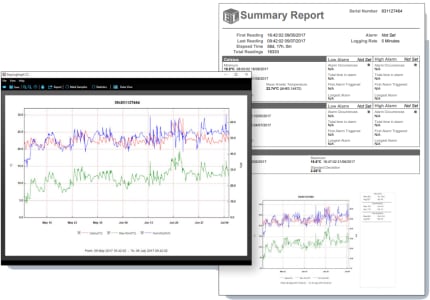

EasyLog CC Software

The simple to use software allows you to view the data graphically, in a table or export it in various formats for use in further reporting.

Once your data is in the graphing module you are able to report on time in alarm conditions as well as obtain values such as the Mean Kinetic Temperature, Minimum, Maximum and Average for both temperature and humidity

This unit can be quickly customized for use in multiple markets. If you have a specific monitoring application, call us today.

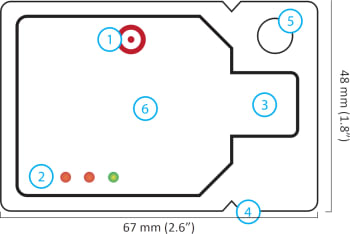

1. Start / Status button
2. Status LEDs
3. USB connector
4. Tear to open
5. Mounting point
6. Model type
