Lascar DPM 500 3½ Digit LCD Voltmeter

200mVdc full scale, Annunciators, Snap-in Bezel

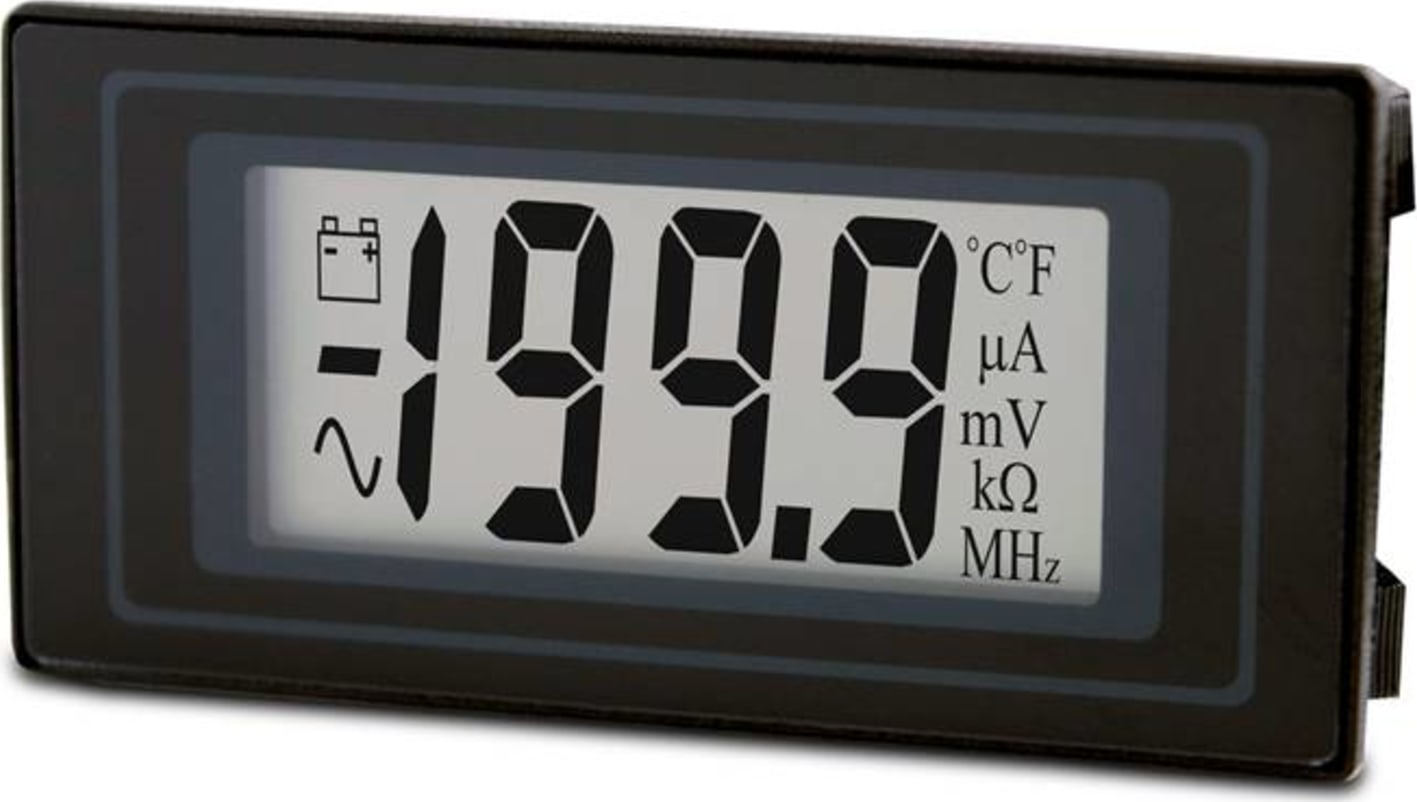

The DPM 500 is a 3½ digit LCD voltmeter with 12.5mm (0.5") digit height. It features 200mV d.c. full scale reading, auto-zero, auto-polarity and a set of annunciators. The meter plugs directly into a DIL socket or can be panel mounted using the snap-in bezel and window. Connection to the meter is via two rows of pins. This is a popular part, normally stocked in high quantity and suitable for new designs.

The DPM 500 uses advanced components and construction techniques to provide a uniquely compact unit. The meter is in a 40 pin DIL integrated circuit format that can be plugged directly into a DIL socket or panel mounted using the snap in bezel. For single rail use, the DPM 500S-BL features a built in negative rail generator, enabling the meter to measure a signal referenced to its own power supply 0V.
