• Volume Range: 100-1200uL
• Single channel
• 230V, Euro plug
• Fully Motorized Piston Drive
• Multifunctional with Six Operational Modes

Labnet's Excel Electronic Pipettes are multifunctional units with operational modes for standard and reverse pipetting as well as multiple and sequential pipetting, mixing of samples, and serial dilutions. All functions are easily programmed with one hand on the well-positioned display and keypad. A fully motorized piston drive and auto-calibration guarantee excellent accuracy and reproducibility. A removable, rechargeable Lithium-ion battery ensures many hours of performance between charges.

Motorized Piston Drive

Excel Electronic Pipettes are fully motorized, ensuring reproducibility and reducing pipetting forces. A microprocessor tightly controls the operation of the high-precision stepping motor to within 1/20th of a revolution. This ensures accurate, reproducible piston movement. Between pipetting steps, the zero position of the piston is verified - the calibration of the unit is checked each time an operation is performed. Activation of the piston requires minimal force, reducing operator fatigue.

Programming the pipettor is accomplished with the four soft pads on the face of the instrument. The face slants away from the user for easy access to the keypad and viewing of the large LCD. User-friendly software guides the operator through the programming. For convenience, as many as nine sets of operating parameters may be stored in memory for future recall. A graphical interface shows the status of the system and prompts the user for action.

Parameters such as aspirating and dispensing speed, audible signals, and an ejection alarm are easily set. A blow-out step after dispensing may be added or removed.

Proper operation of the system is ensured by self-diagnostics in the software. The accuracy of pipetting volume, battery charge status, and the auto-calibration function are constantly monitored.

The body of the Labnet Excel Electronic Pipette has been designed to fit comfortably in the right or left hand. Along with being lightweight, the unit is also well balanced. The plunger button, located on the back side of the instrument, requires just a small movement of the index finger to activate, reducing the risk of Repetitive Strain Injuries (RSI). The tip ejector slides easily with slight pressure from the thumb.

Multiple operating modes allow the Labnet Excel Electronic Pipettes to perform a variety of functions in addition to standard pipetting. Using the keypad and graphical interface, each of the modes is easily accessed and parameters entered. In the “AUTO” mode, the volumes to be aspirated and dispensed for standard and reverse pipetting are selected. “MD” mode is selected for multiple dispensing operations. Samples can be aspirated and dispensed repeatedly in the “MIX” mode. “AUTO/MIX” makes serial dilutions quick and easy. Sequential dispensing (“SD”) allows for a large volume to be drawn up and smaller aliquots of different volumes to be dispensed. With sequential aspiration (“SA”) a number of samples can be drawn up with air spaces in between to prevent mixing and then dispensed all at once.

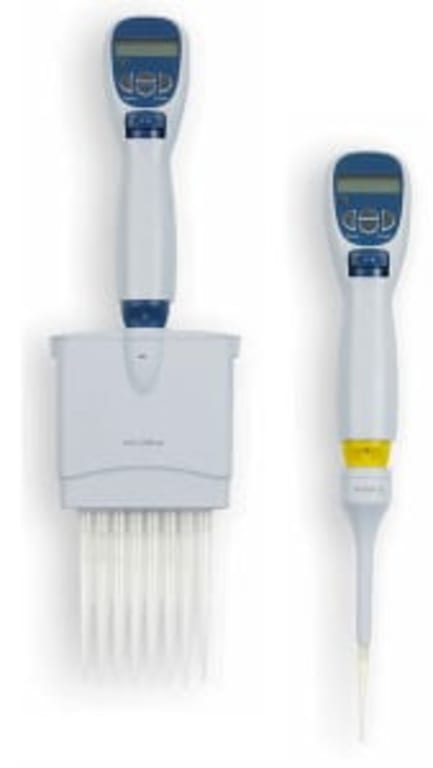

Labnet Excel Electronic Pipettes are available in four overlapping volume ranges from 0.5 µl to 1200 µl. Each range is provided in single, eight, and twelve-channel versions. The single-channel models have a reduced diameter shaft for reaching into narrow tubes. The manifolds of the multichannel models rotate for comfortable pipetting in any direction.

For sterility, the lower portion of the pipettes is easily removed for autoclaving. Durable seals in both the single and multichannel pipettors provide leakproof performance. Tip cones are made from PVDF for added durability and chemical resistance and the tip ejectors are adjustable to accommodate a variety of tip types.
