• Control outputs for closing coils: 3
• Control outputs for opening coils: 3
• Main and PIR contacts: 6 x 2
• Coil current: 3 x 2 (I / O)
• Coil / motor / station voltage: 3

Switchgear devices are situated at the key points of electrical energy transmission and distribution systems. Their reliability has a decisive influence on the availability, safety, and economic efficiency of electricity supply systems.

Only regular, on-site tests can ensure that switchgear devices function perfectly throughout their operational life.

ACTAS test systems provide precise information as to the condition of the chamber and drive unit without requiring them to be opened. The sheer number of parameters to be determined, the wide variety of different types of switchgear equipment in use, and the harsh environmental conditions encountered during on-site tests place extreme demands on test equipment

High transfer resistance can be identified by measuring static contact resistance. Dynamic contact resistance measurements can be used to determine the resistance characteristic during a freely definable switching operation.

Testing with earthing on both sides

Switchgear equipment is often tested with earthing on both sides in order to prevent danger caused by capacitively coupled voltages from neighboring components. When tests are carried out in combination with PROMET SE, measurements can be carried out with earthing on both sides.

Integrated operating and evaluation unit

The resistive 7" touch screen, a new operating concept, and extra powerful hardware make for easy operation and optimum display of all information.

Comprehensive on-site switchgear testing

Using the integrated control panel of ACTAS P260 | P360, it is possible to carry out complete tests on medium-, high- and extra-high-voltage switchgear.

Contact travel visualization

Unlike evaluation based on a simple binary signal, as is used in high-frequency measuring methods, ACTAS P260 | P360 test systems used in combination with the compact PROMET SE ohm meter enable a sound diagnosis of interrupter units throughout the whole switching operation.

Assessing the interrupter unit by analyzing contact resistance

Regular measurements of the static and dynamic contact resistance allow an accurate assessment of the condition of the entire contact system.

Because ACTAS P260 I P360 can be controlled with a smartphone, tablet, etc., the test instrument can also be operated from some distance away.

ACTAS testing software

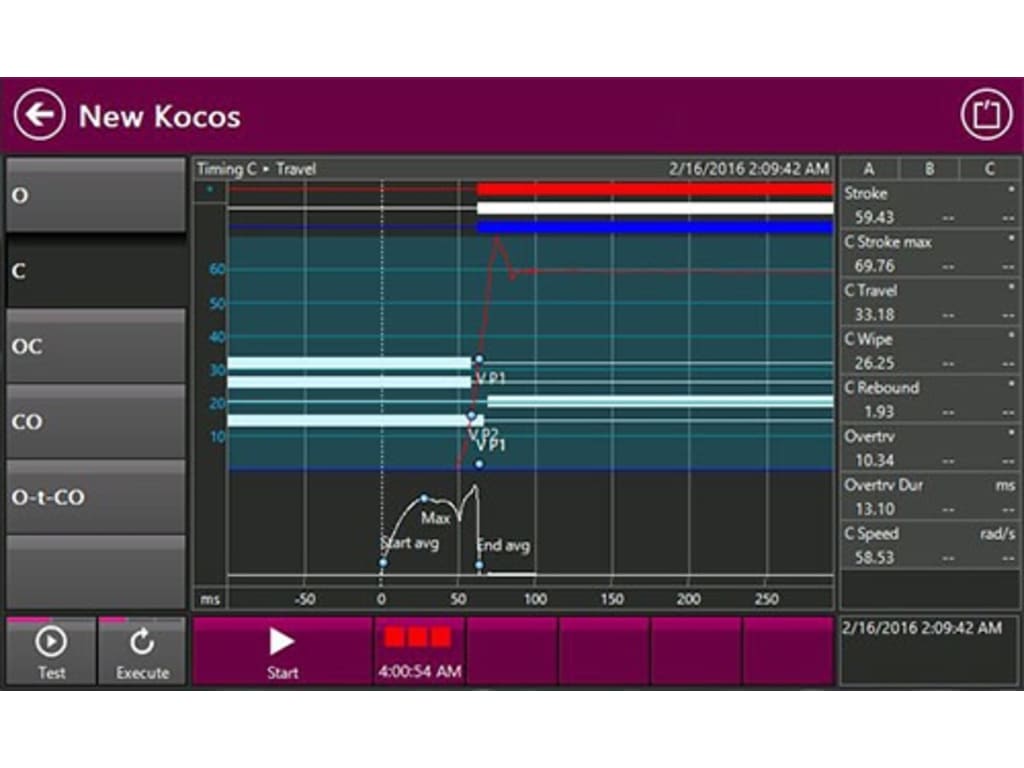

Configuration and analysis of tests are carried out with the ACTAS testing software and the control panel located on the test system itself. It is easy for tests to be called up, edited or used as templates. A graph of all measured signal characteristics, featuring zoom functions and measurement cursors, offers a wide variety of options for detailed analysis.

Automatic generation of test reports

The software includes an option for automatically creating test reports to document test results.
