Determination of operating times
ACTAS BTT features one output for controlling the OPEN coils and one output for controlling the CLOSE coils of a switchgear device. Both outputs can be used to control DC- and AC-operated coils. The determination of operating times can be carried out simply and reliably on up to three main contacts by triggering C, O, and CO switching operations. The clear graphical display shows the corresponding operating times for all the binary inputs as the result.
Test for contact synchronicity
As well as determining the operating times, ACTAS BTT also establishes the synchronicity of the opening and closing operations of the main contacts.
When assessing a switchgear device, for example, this allows determination of the time interval between the first and last contact touch of the poles during a closing or opening operation in a three-phase grid.
Measurement of coil currents
The coil current is measured automatically during the measurement of the operating times. Both the mean and the peak value are displayed as the result, allowing assessment of the mechanical and/or electrical functioning of the release coils.
Protected inputs and outputs
The inputs and outputs are galvanically isolated and protected against over-voltage. The outputs are also protected against overload and overheating.
Real-time display
All the inputs and outputs of the device are controlled in real-time and their status is shown on the display. Check for the control voltage of the switch-gear device The integrated monitoring unit indicates whether the control voltage is applied to the CLOSE and OPEN coils of the switch-gear device. Incorrect connection of the measuring device or faulty cables is also reliably detected in this way.
Compact, ergonomic design

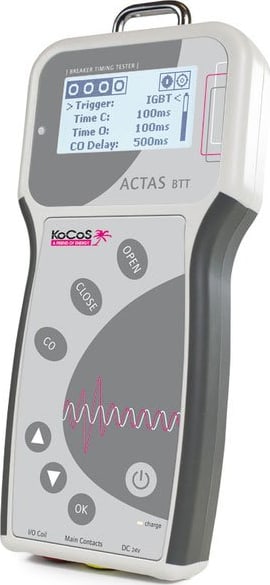

Thanks to its compact, ergonomic design, the measuring device can be held and operated with just one hand. Acoustic signals and a graphical display that is even easy to read in direct sunlight make the device user-friendly.
Easy operation
The measuring device features dedicated keys for each test mode. The ergonomic arrangement of the keys makes for optimum handling, measurements can be carried out quickly and easily. ACTAS BTT can be operated on the device itself or with an Android smartphone. Test reports can be generated, saved, and sent using a smartphone.
Battery operation for up to 12 hours
ACTAS BTT is supplied with power by means of integrated rechargeable batteries which provide continuous operation for up to 12 hours. The charging status of the batteries and the charging process itself are monitored with a microprocessor and an LED shows when charging is in progress. The device can be operated during charging.
