• U8030 Series Triple Output DC Power Supply, 375W, 2 x 30V/6A, 5V/3A
• DC output rating: Outputs 1,2 (variable) – 30V/6A; Output3 (fixed) – 5V/3A
• Output ripple and noise: < 1 mVrms, 10 mVp-p
• Programming/Readback Accuracy: 0.25% +15 mV; 0.25% +10 mV
• Line/Load Regulation: 0.01% + 2 mV; 0.02% + 2 m

The Keysight U8030 Series extends its family of basic DC power supplies to include a one of a kind power supply that offers up to 375 W power at three outputs. Equipped with output sequencing capability, it allows you to generate output sequences even with minimal programming skills. Each power supply is also built with excellent load regulation and clean output noise for continued stability. With these and many other features, you get a solid and reliable triple-output power supply at an unsurpassed performance.

The U8030 series offers two models — the U8031A and U8032A, each with different voltage and current ratings to cater to your needs. Both models are well-regulated compact bench-tops with total output of 375 W, making it an ideal power source alternative in electronics manufacturing, research and development as well as education sector.

The output sequencing capability is carefully thought out for your convenience and ease when operating. Designed to perform automation function, our U8030 series is well-suited even for those with minimal programming skills. With easy-to-use knob and intuitive keypads, you can now set your desired output sequences for margin test, burn-in test and other general purpose tasks in an industrial setting.

The U8030 series provides excellent load and line regulation (CV: < 0.01% + 2 mV; CC: < 0.02% + 2 mA) to ensure stable output even when load changes. This is crucial especially when dealing with noise-sensitive circuits that demand clean power. At a wide bandwidth of 20 Hz to 20 MHz, our bench power supplies continue to provide clean output at the lowest Vrms ≤ 1 mVrms (0.5 mVrms typical), leaving your signals uncontaminated and ensuring minimal interference to your Device-Under-Test (DUT).

The U8030 series power supplies are integrated with an array of security features such as over-voltage (OVP) and over-current (OCP) protection to mitigate these risks. Additionally, security features such as keypad locking capability prevents accidental front panel usage while physical lock mechanism which is strategically located at the rear of the unit provides secure instrument storage.

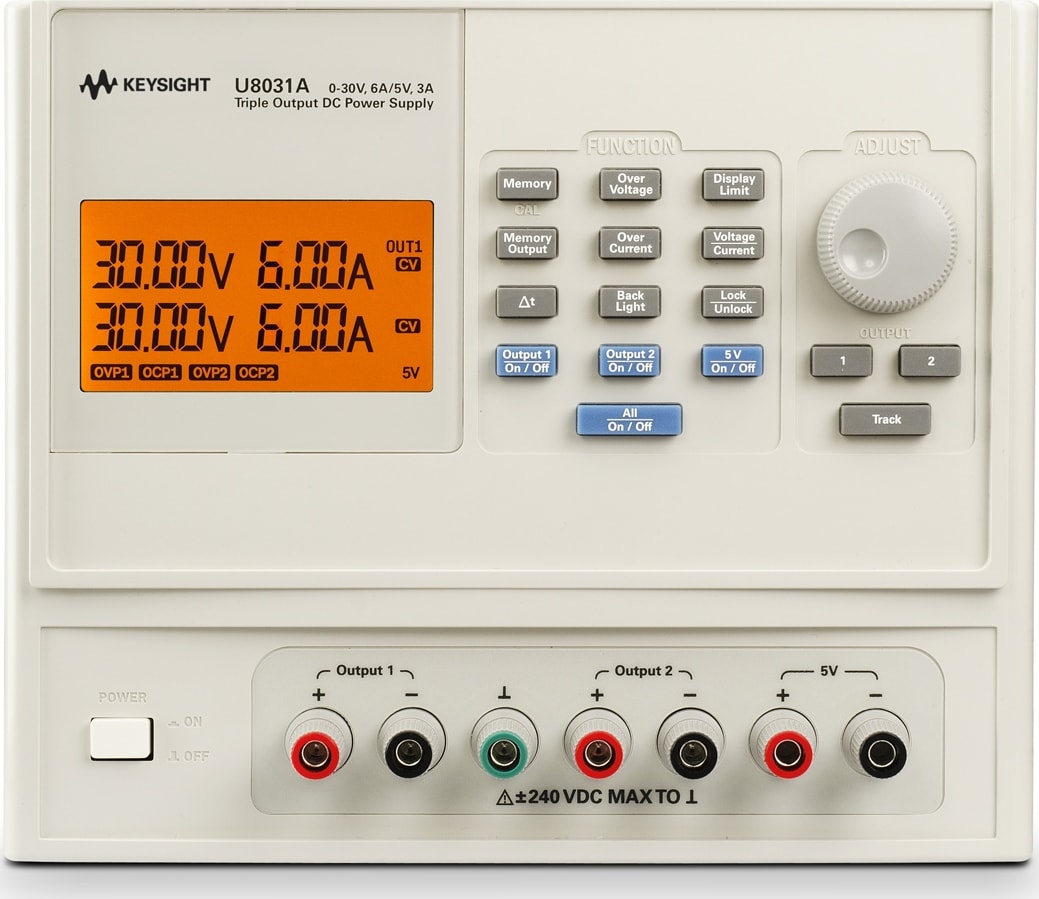

Both models of the U8030 series come with a set of features to suit your needs while remaining easy to use. The LCD screen displays both voltage and current readings in a one-view panel while an all ON/OFF button allows multiple outputs to be controlled simultaneously. Additionally, the auto-track feature simplifies setup between output 1 and output 2. With these, you get a solid bench power supply plus a set of convenient and easy to use features.
