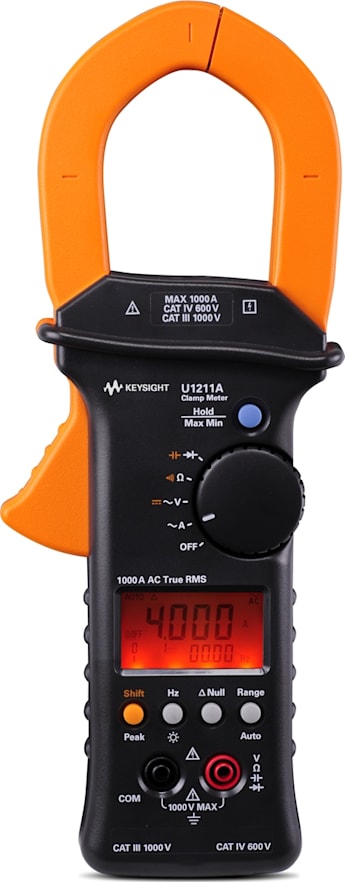

Keysight U1211A - True RMS 1000A AC Clamp Meter

Name: Keysight U1211A - True RMS 1000A AC Clamp Meter
Brand: Keysight
SKU: KeysightU1211A
Price: 517.00 USD
Availability: InStock

0 reviews | Model: Keysight U1211A

Compare

True RMS 1000A AC clamp meter

Cannot Ship Air

U1210 Series 3.5 Digit Handheld Multimeter for High-Current Measurements
AC current range: 0.1A to 1000 A
DC current range: N/A
AC voltage range: 0.1V to 1000 V
DC voltage range: 0.1V to 1000 V
True RMS: Yes
Measure currents up to 1000 A (AC); Large jaw opening (52mm)
Resistance; Capacitance; Diode; Frequency
Overvoltage safety protection - CAT III 1000 V / CAT IV 600 V
Data hold, max/min/avg, auto-range, null, Bluetooth capable; Backlit, peak hold, auto-power off

View Product Details

Your Price: $517.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Keysight U1211A True RMS 1000A AC clamp meter	Keysight U1212A True RMS 1000A AC/DC Clamp Meter	Keysight U1213A True RMS 1000A AC/DC Clamp Meter Pro
Price
In Stock
True RMS	Yes	Yes	Yes
Maximum Current AC	1000 A	1000 A	1000 A
Maximum Voltage AC	1000 V	1000 V	1000 V
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Keysight U1211A Accessories

Choose a Category

for the Keysight U1211A

Keysight U1162A Alligator clip

Catalog: U1162A

(0)

In Stock!

Add to Cart

Keysight U1175A Soft carrying case

Catalog: U1175A

(0)

In Stock!

Add to Cart

Keysight U1595A Rugged carrying case for handheld digital multimeters

Catalog: U1595A

(0)

In Stock!

Add to Cart

Keysight U1164A Test probes, fine tip

Catalog: U1164A

(0)

In Stock!

Add to Cart

Keysight U1184A Temperature Probe Adapter

Catalog: U1184A

(0)

In Stock!

Add to Cart

Keysight U1115A Bluetooth class 1 (100meter) remote logging display

(0)

In Stock!

Add to Cart

Keysight U1176A LED flash light

Catalog: U1176A

(0)

In Stock!

Add to Cart

Keysight U1173B IR-USB cable, all U1200 series handheld multimeter VOLT: DC 3.3V - 5V

Catalog: U1173B

(0)

In Stock!

Add to Cart

Keysight U1168A Standard test lead kit

Catalog: U1168A

(0)

In Stock!

Add to Cart

Keysight U1181A Immersion probe type K

Catalog: U1181A

(0)

In Stock!

Add to Cart

Keysight U1182A Surface probe, industrial

Catalog: U1182A

(0)

In Stock!

Add to Cart

Keysight U1185A Thermocouple (J-type) and Adapter

Catalog: U1185A

(0)

In Stock!

Add to Cart

Keysight U1186A Thermocouple (K-type) and Adapter

Catalog: U1186A

(0)

In Stock!

Add to Cart

U1211A True RMS 1000A AC Clamp Meter

U1210 Series 3.5 Digit Handheld Multimeter for High-Current Measurements
Measure currents up to 1000 A (AC); Large jaw opening (52mm)
Resistance; Capacitance; Diode; Frequency
Overvoltage safety protection - CAT III 1000 V / CAT IV 600 V
Data hold, max/min/avg, auto-range, null, Bluetooth capable; Backlit, peak hold, auto-power off

U1210 Series Handheld Clamp Meters

Measurements of electrical distribution cables can be challenging and risky. The Keysight U1210 Series handheld clamp meters enable high-current measurements without breaking the circuit for cables up to two inches in diameter. Unlike most clamp meters, they also include Digital Multimeters (DMM) capabilities resistance, capacitance, frequency, and temperature to simplify troubleshooting during installation and maintenance. Best of all, they provide an extra layer of protection with CAT IV 600V and CAT III 1000 V safety ratings.

U1210 Series Features

Large clamp opening of 52 mm or 2in
The high measurement capability of up to 1000 A for AC, DC or AC+DC
CAT III 1000 V/CAT IV 600 V safety rating
Bluetooth wireless capable (optional U1177A IR-to-Bluetooth Adapter required)
Full-featured DMM with resistance, capacitance, frequency, and temperature functions
High-resolution measurements - measure current as low as 0.01 A
Peak hold
Dual ranging mode - manual and auto
Large dual display
Min/max recording capability

Measure Current Easily, Accurately

Keysight U1210 Series handheld clamp meters have a clamp opening of 52 mm/2 inches and a high current measurement capability of up to 1000 A (AC, DC, AC+ DC). With the large jaw size, these handhelds simplify current measurements for thick cables. Clamp-on with the U1210 Series and get convenience, versatility, and the ability to handle big currents safely.

Full-Features Digital Multimeter Functions

The U1210 Series handheld clamp meters provide basic functions of a multimeter with wide measurement ranges to cater to a broad range of applications (ACA, DCV, ACV, OHM, audible continuity, diode, and frequency tests). These meters also provide auto-ranging capability, built-in peak hold for in-rush current measurement, temperature and capacitance measurement capability, large backlight display, and one-hand operation.

Keysight Remote Link Solution Enabled (Add Optional U1117A IR-Bluetooth Adapter)

Making current measurements can be strenuously demanding due to its complexity and high current involved. Since electrical distribution rooms are typically located in separate locations, maintenance and troubleshooting are further complicated by the need to travel back and forth to cross-check the measurement results. Adding the new Bluetooth capability to your existing U1210 series handheld clamp meters allows you to make high current measurements more safely and conveniently. With the U1177A Infrared-to-Bluetooth adapter, you can easily monitor and log data up to a 10-meter range across all Android platform devices, providing an added benefit for maximum efficiency and productivity in various ways difficult-to-reach environments.

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	1000 A
Maximum Voltage AC	1000 V
Maximum Voltage DC	1000 V
Maximum Conductor Size	2 IN
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Auto Ranging
In-Rush Current	Yes
Test Equipment General Attributes
Product Weight	625 GRAMS (1.38 LBS)
Product Length	273 MM (10.75 IN)
Product Width	106 MM (4.17 IN)
