Keysight U1191A - Handheld Clamp Meter 400 A AC

Name: Keysight U1191A - Handheld Clamp Meter 400 A AC
Brand: Keysight
SKU: KeysightU1191A
Price: 152.00 USD
Availability: InStock

0 reviews | Model: Keysight U1191A

Compare

Handheld Clamp Meter 400 A AC

U1190 Series 3.5 Digit Handheld Multimeter, Avg Responding, Basic
AC current range: 400 A
DC current range: N/A
AC voltage range: 600 V
DC voltage range: 600 V
True RMS: No
Unique wire separator to separate wires from a bundle
Resistance; Continuity; Diode
Overvoltage safety protection - CAT III 600 V / CAT IV 300 V
Data hold, max/min/avg, auto-range, null, auto power off

View Product Details

Your Price: $152.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Keysight U1191A Handheld Clamp Meter 400 A AC	Keysight U1192A Handheld Clamp Meter, 60 to 400 A AC	Keysight U1193A Handheld clamp meter, true RMS, basic	Keysight U1194A Handheld clamp meter, true RMS
Price
In Stock
True RMS	No	No	Yes	Yes
Maximum Current AC	400 A	400 A	600 A	600 A
Maximum Voltage AC	600 V	600 V	600 V	600 V
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Keysight U1191A Accessories

Choose a Category

for the Keysight U1191A

Keysight U1162A Alligator clip

Catalog: U1162A

(0)

In Stock!

Add to Cart

Keysight U1178A Carrying case, soft

(0)

In Stock!

Add to Cart

Keysight U1595A Rugged carrying case for handheld digital multimeters

Catalog: U1595A

(0)

In Stock!

Add to Cart

Keysight U1164A Test probes, fine tip

Catalog: U1164A

(0)

In Stock!

Add to Cart

Keysight U1184A Temperature Probe Adapter

Catalog: U1184A

(0)

In Stock!

Add to Cart

Keysight U1176A LED flash light

Catalog: U1176A

(0)

In Stock!

Add to Cart

Keysight U1168A Standard test lead kit

Catalog: U1168A

(0)

In Stock!

Add to Cart

Keysight U1169A Test Probe Leads (with 19-mm tips and 4-mm tips)

Catalog: U1169A

(0)

In Stock!

Add to Cart

Keysight U1181A Immersion probe type K

Catalog: U1181A

(0)

In Stock!

Add to Cart

Keysight U1182A Surface probe, industrial

Catalog: U1182A

(0)

In Stock!

Add to Cart

Keysight U1185A Thermocouple (J-type) and Adapter

Catalog: U1185A

(0)

In Stock!

Add to Cart

Keysight U1186A Thermocouple (K-type) and Adapter

Catalog: U1186A

(0)

In Stock!

Add to Cart

U1191A 3.5 Digit Handheld Multimeter, 400 A AC

U1190 Series 3.5 Digit Handheld Multimeter, Avg Responding, Basic
Unique wire separator to separate wires from a bundle
Resistance; Continuity; Diode
Overvoltage safety protection - CAT III 600 V / CAT IV 300 V
Data hold, max/min/avg, auto-range, null, auto power off

U1190 Series 3.5 Digit Handheld Multimeter

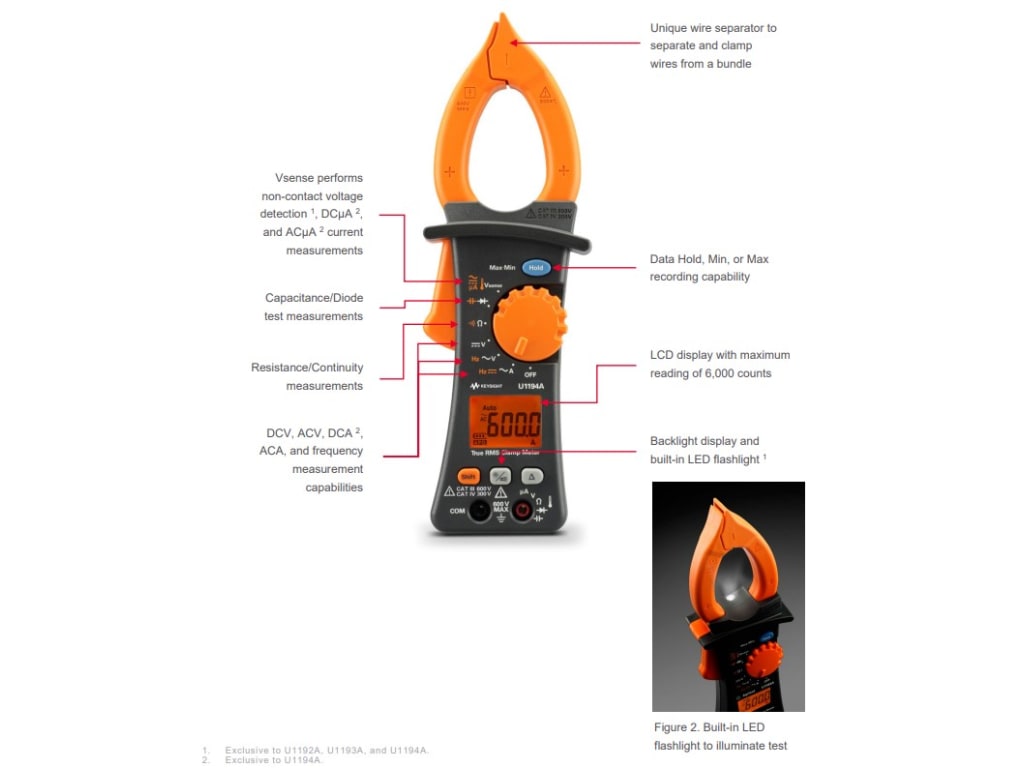

Keysight U1190 series clamp meters are packed with a wealth of features to help you work more efficiently and safely. Housed in robust cases, each model comes with an innovative wire separator that helps you isolate and measure individual wires in a bundle. On the Keysight U1192A/U1193A/U1194A models, the built-in LED flashlight illuminates your test area and Vsense performs non-contact voltage detection. The clamp meters are also certified with both CAT III 600 V and CAT IV 300 V ratings to cover wider measurement categories.

Unique Wire Separator

The U1190 Series clamp meters are built to perform in the environments you work. The unique wire separator allows you to effortlessly isolate and perform measurements on individual wires in a bundle.

Vsense for Non-Contact Voltage Detection (U1192A/93A/94A Models)

The U1190 Series clamp meters have Vsense - a unique method of non-contact voltage detection that safeguards users from exposure to hot or live wires while making measurements in dangerous working environments. Upon the detection of voltage, a unique safety alert of an audible beeper is produced to alert users.

Ergonomically Built with Current Measurement to 600A

Ergonomically built, the U1190 Series clamp meters fit comfortably in the palm of your hand and allow a selection of measurement functions with just a simple thumb press. The Keysight U1193A and U1194A come with a current measurement up to 600 A. The wide range of current measurement functions covers an array of applications such as electrical installation, maintenance, and troubleshooting tasks making it an ideal tool to use across many industrial applications.

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	No
Maximum Current AC	400 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	31 MM (1.22 IN)
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Auto Ranging
In-Rush Current	No
Test Equipment General Attributes
Unique Features	6,000 counts resolution
Product Weight	320 GRAMS (0.7055 LBS)
Product Length	225 MM (8.86 IN)
Product Width	77.1 MM (3.04 IN)
