The P924xA Series oscilloscopes offer a 20-MHz built-in function/arbitrary waveform generator. Ideal for educational, design labs, or R&D labs, where bench space and budget are at a premium, the 20-MHz built-in function/arbitrary waveform generator provides standard stimulus output waveforms to your device under test as well as user-definable frequencies, amplitudes, offset, and pulse widths and arbitrary waveform capability. WaveGen’s output is routed to a BNC on the front panel of the oscilloscope below the display.

You can use the built-in waveform editor to create custom waveforms to output on the WaveGen of the scope. It is also possible to capture a known good or golden waveform on a scope channel and then save that to the ARB and generate it through MMCX. Rethink how you test your designs by using real-world signals to test your margins to the breaking point.

This WaveGen option works with P9241A, P9242A, and P9243A USB oscilloscopes.

• 10 bits, 100 MSa/s, 8 kpts, DDS technology

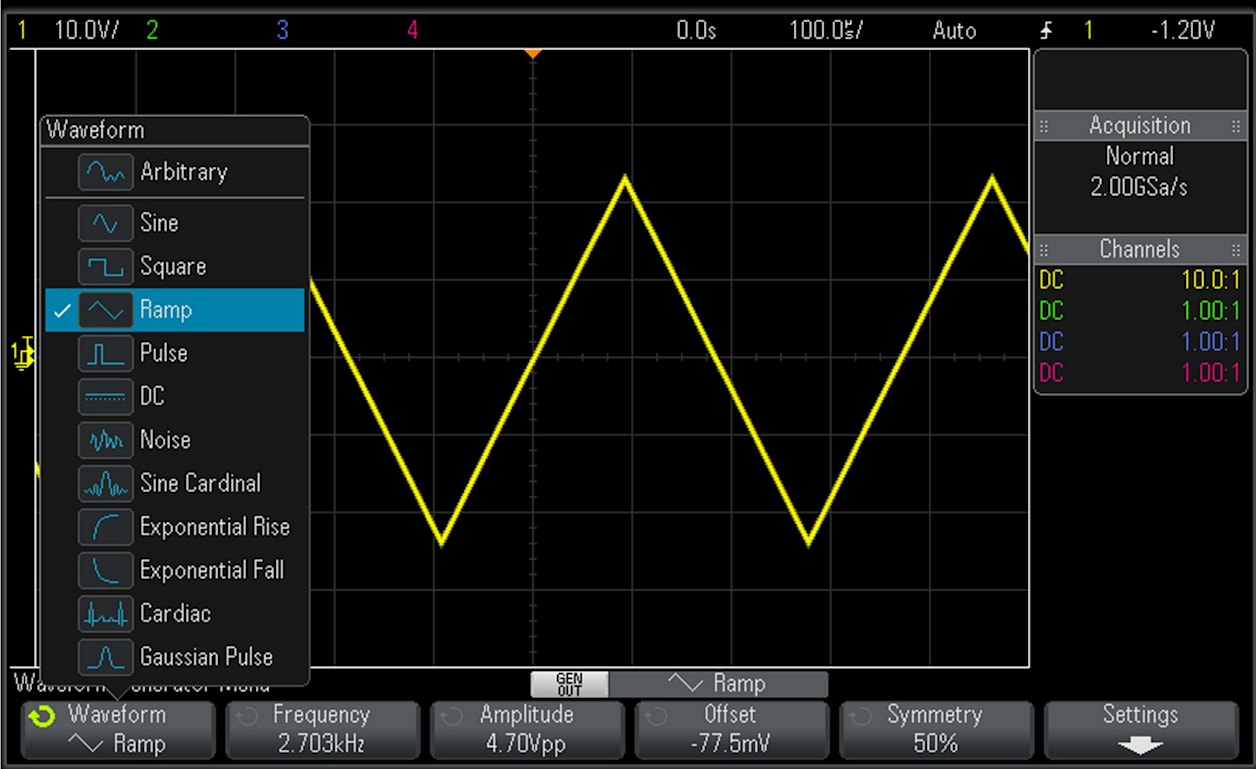

• Waveforms include sine wave, square wave (with variable duty cycle), ramp, pulse (with variable pulse width), DC, noise, sine cardinal, exponential rise, exponential fall, cardiac, Gaussian, arbitrary waveform generation
• Store oscilloscope waveforms directly into WaveGen AWG memory with one button press
• Create/edit AWG waveforms using the built-in editor
• Add noise and glitches
• Change amplitude, frequency, and offset
• Quickly test the margins of your designs using real-world signals
• Internal memory and USB thumb drive save/recall
