N8480 Series Standard (N848x)
The N8480 Series power sensor incorporates the latest sensing technology, with value-added features such as the built-in EEPROM circuit, wider dynamic range, and better linearity and accuracy.
Similar to the E-Series power sensors, the N8480 Series power sensors are designed with a built-in EEPROM to store the sensor characteristics such as model number, serial number, linearity, temperature compensation, calibration factors, and so forth. This feature ensures that this correction data will be loaded into the power meter when the sensor is moved from one power meter to another power meter. Therefore, it provides ease of use and convenience to you.
- Wider dynamic range: -35 dBm to +44 dBm (5 dB improvement from legacy 8480 Series)

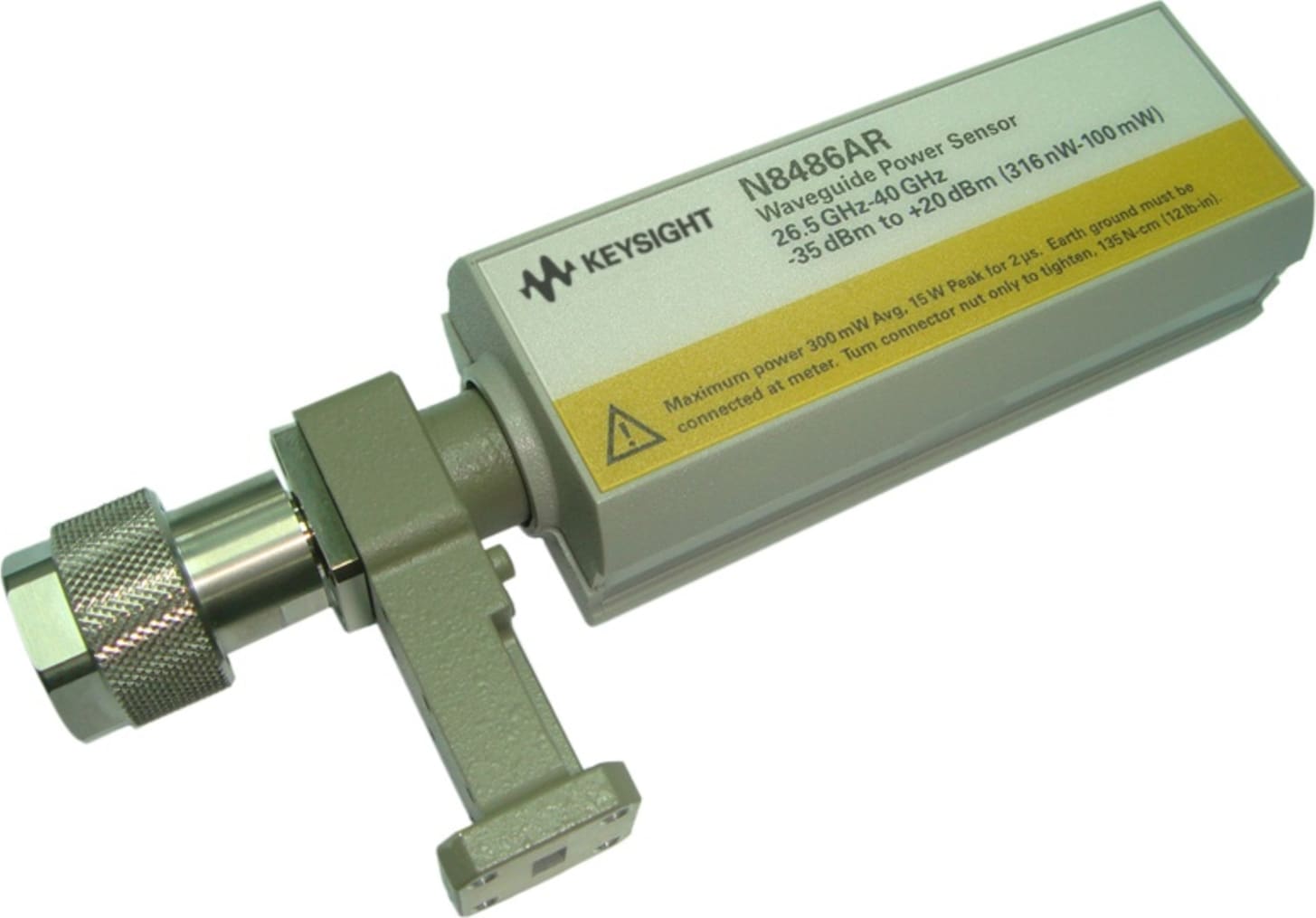

- -5 dBm to +20 dBm (N8481/82/85/87A/86AQ/86AR/88A)
- 15 dBm to +35 dBm (N8481/82H)
- 5 dBm to +44 dBm (N8481/82B)
- Wider frequency coverage: 100 kHz to 67 GHz (sensor dependent)
- Excellent power linearity of less than 1%
- EEPROM feature to store cal factors
- Compatible with EPM, EPM-P, and P-Series power meters (only applicable when used with compatible firmware)
