Electronic Load Module (0-120A / 0-60V / 600W)

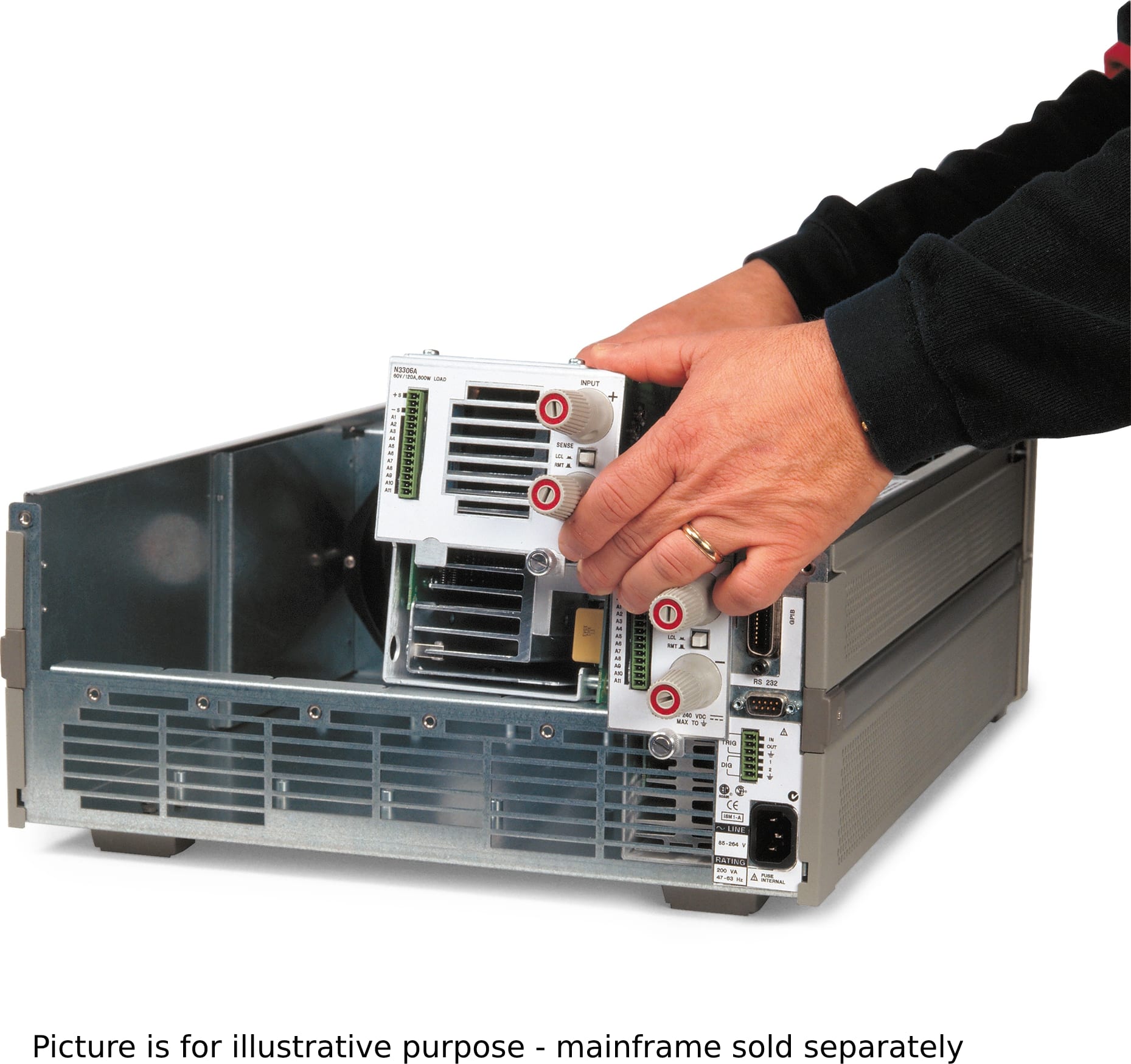

The Keysight N3306A is a 600 W (0-120A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications. The N3306A load module is fast and accurate, for programming in constant current, constant voltage, or constant resistance modes, or for making voltage, current or power measurements. The N3306A can also digitize waveforms.
| N3302A | N3303A | N3307A | N3304A | N3305A | N3306A |
| Current | 0-30 A | 0-10 A | 0-30 A | 0-60 A | 0-60 A | 0-120 A |
| Voltage | 0-60 V | 0-240 V | 0-150 V | 0-60 V | 0-150 V | 0-60 V |
| Maximum power | 150 W | 250 W | 250 W | 300 W | 500 W | 600 W |
| Number of slots | 1 | 1 | 1 | 1 | 2 | 2 |
Please see page 5 of this document for detailed information on current and low voltage operation ratings for each module.
