• Uses magnets to provide quick connect/disconnect when probing multiple high-speed test points
• Bandwidth: To 16 GHz (with InfiniiMax III probe amp); To 13 GHz (with InfiniiMax III+ probe amp)
• InfiniiMode is supported when used with InfiniiMax III+ amp probes
• Differential probing with InfiniiMax III amp probes
• Probe tips not included - Keysight N2849A QuickTip sold separately

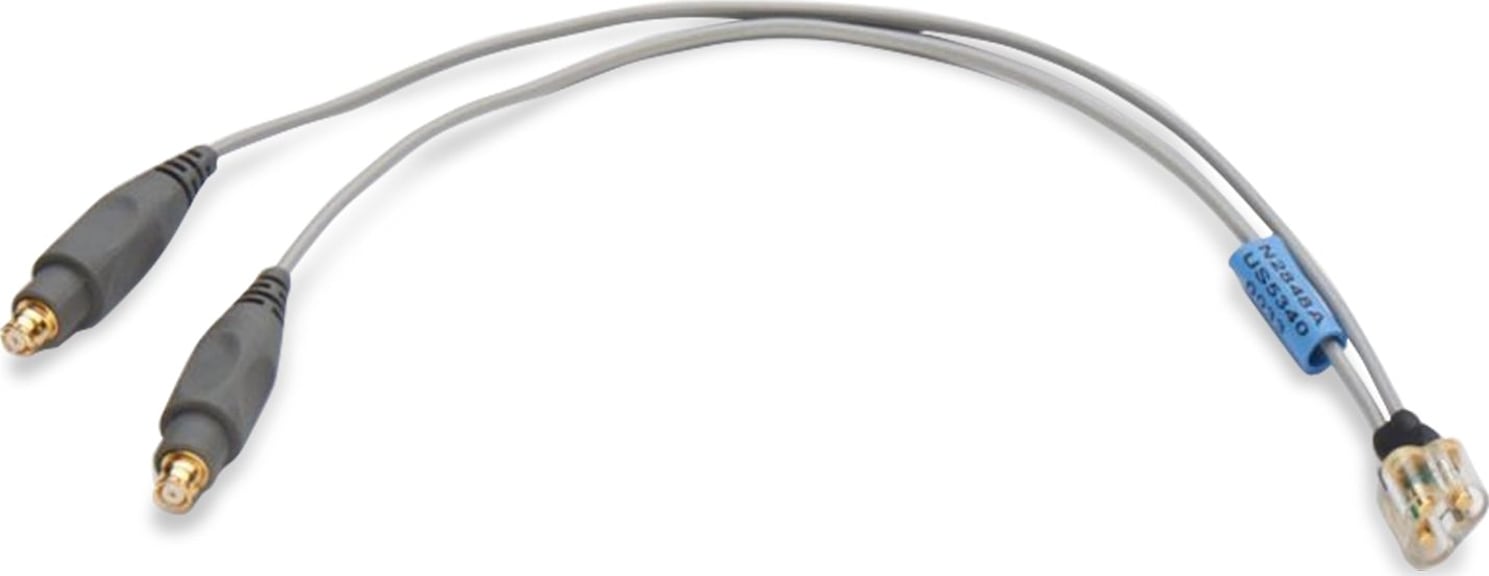

The Keysight N2848A/49A QuickTip offers the industry’s first magnetically-engaged probe head and tip for a quick and secure connection, pushing the usability to the next level. The N2848A QuickTip probe head quickly snaps to the N2849A probe tip, utilizing magnets to connect to the two sides of the differential signal and ground. Multiple N2849A probe tips can be installed on a DUT, allowing quick and reliable measurement of many probe points. The QuickTip supports the InfiniiMode probing when used with the InfiniiMax III+ probe amp and supports differential probing with the InfiniiMax III probe amp.

When used with N2830A-series probe amplifiers, the N2848A is InfiniiMode compatible. InfiniiMode allows you to make differential, common mode, and single ended measurements without having to re-solder the tip leads. InfiniiMode is not available when using with N2800A-series probe amplifiers.
