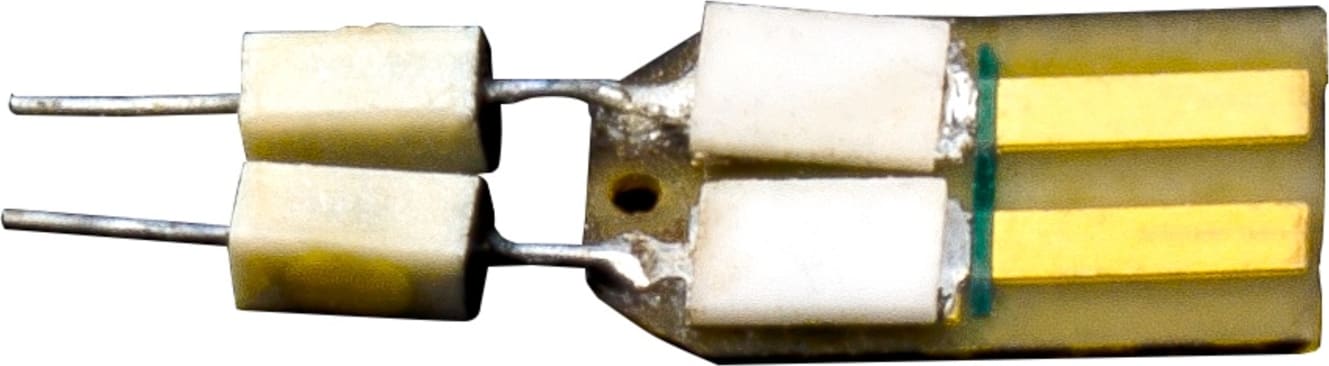

InfiniiMax III PC Board ZIF Tips
The Keysight N2838A InfiniiMax III PC board ZIF tips are a set of (5) ZIF tips with plastic forks to aid in soldering the tips to your DUT. The tip utilizes a PC board substrate, making it a highly robust and conveniently usable probing solution.
Keysight N2838A Specifications:
- 25 GHz bandwidth (with InfiniiMax III N2803A amp and N5439A ZIF head)
- Cdiff = 95 fF, Cse = 130 fF
- 100kΩ input Rdiff (@ DC), 1kΩ input Rdiff (@ >10kHz)
- 6:1 attenuation ratio, normal sensitivity
- Variable spacing from 5 mil – 250 mil (or 0.127 mm – 6.35 mm)
