Keysight EDUX1EMBD - Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes

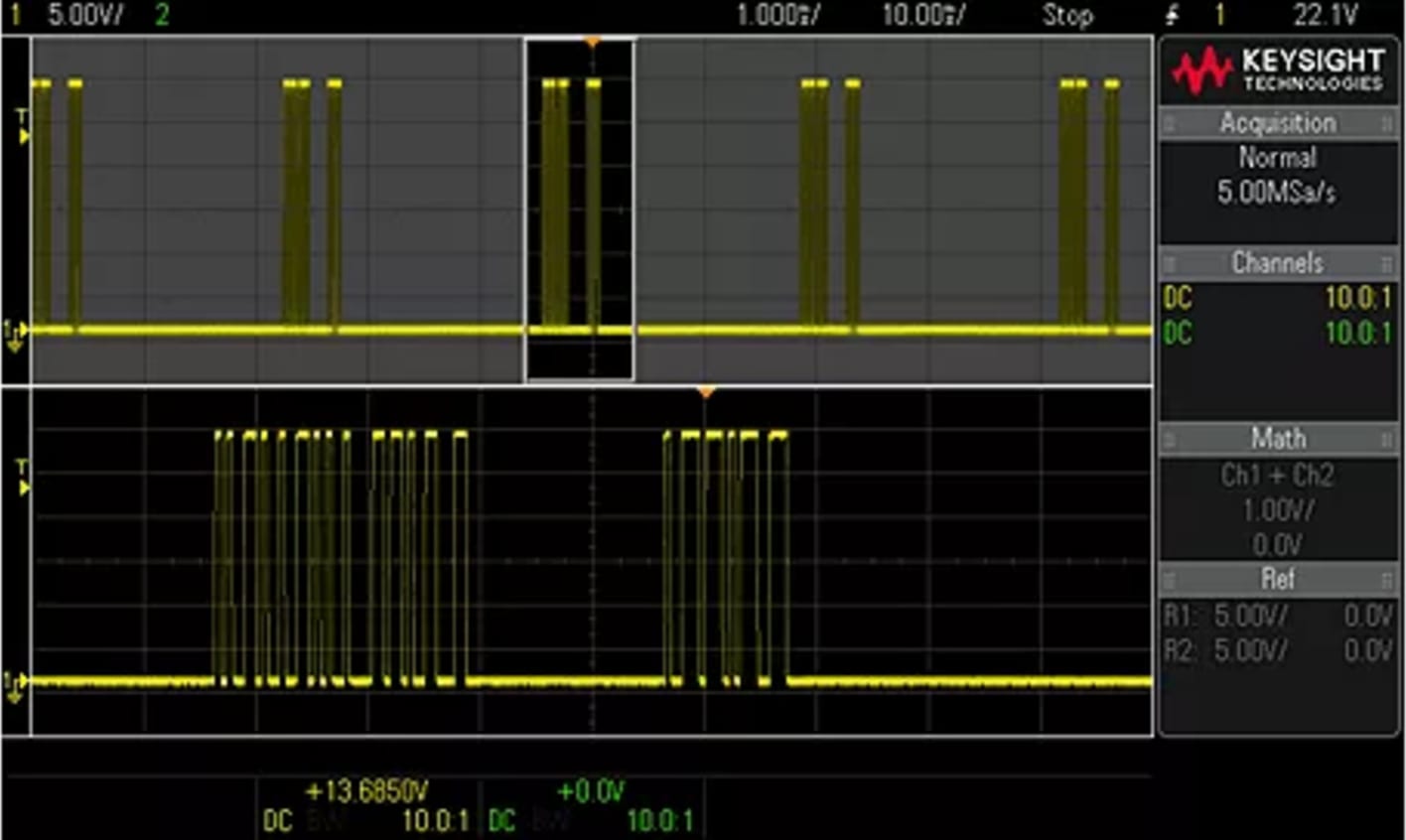

The I²C and UART/RS-232 serial decode option for InfiniiVision 1000 X-Series oscilloscopes displays responsive, time-aligned, on-screen decode of Inter-Integrated Circuit (I²C) and UART/RS-232 serial communication buses. Because this capability is hardware-based, it provides the fastest throughput solution for triggering on and analyzing these serial buses. These buses are found in a wide variety of embedded designs.
This measurement application option works with InfiniiVision 1000 X-Series EDUX1002A and EDUX1002G models.
