Accessory Bundle for E4417A (Two E4413A Power Sensors and One Transit Case)
The Keysight E4417A-E01 is an accessory bundle for the E4417A power meter and includes two E4413A power sensors and a transit case. Please note, power meter sold separately.

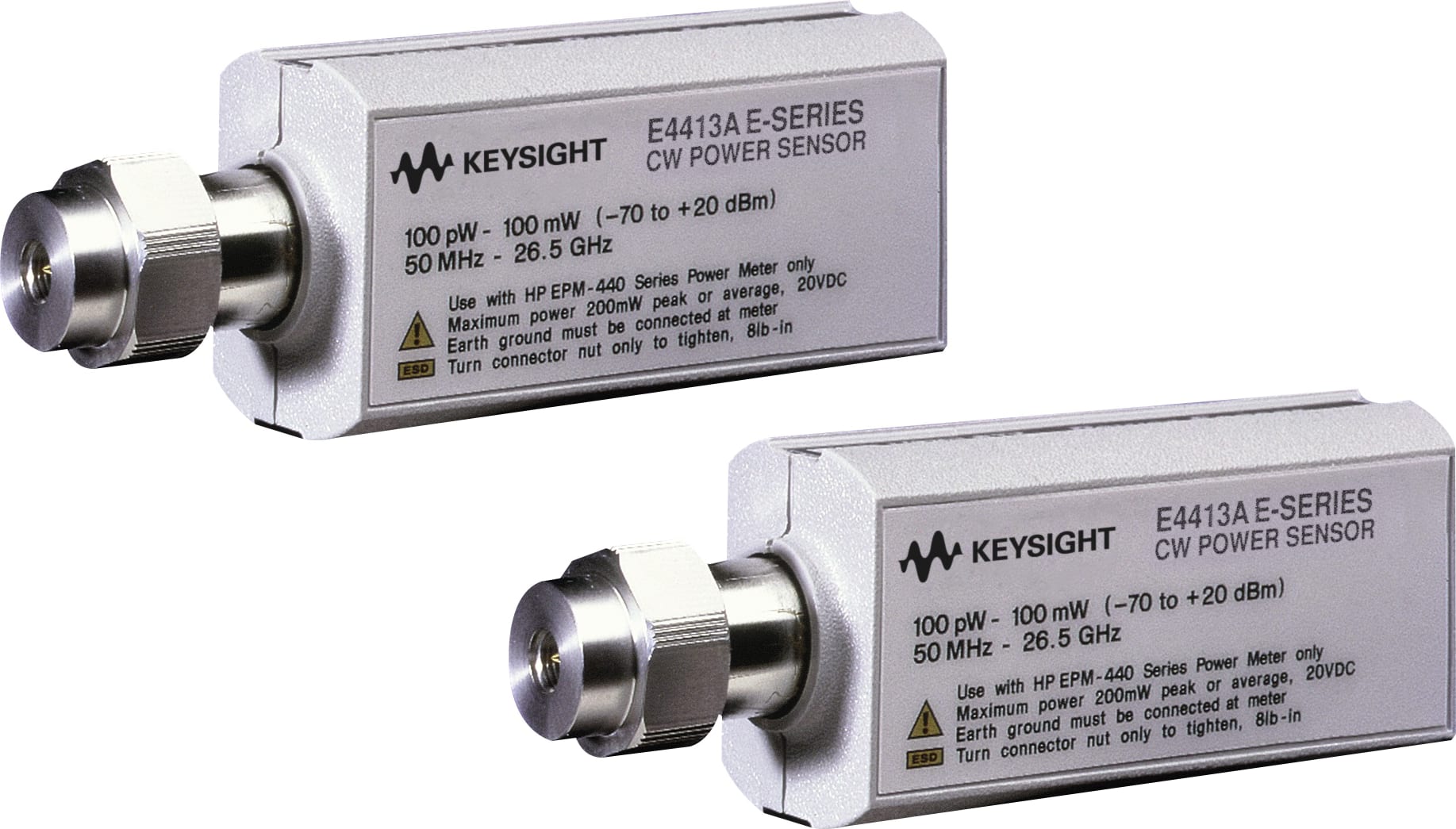

The E4413A is a diode power sensor intended for measurement of CW microwave power levels in a wide dynamic range from -70 dBm to +20 dBm (100 pW to 100 mW). The E4413A measures at frequencies from 50 MHz to 26.5 GHz.
These are high-speed power sensors, and do not incorporate narrow-bandwidth averaging used in average-power sensors. Signals with digital, pulse, or other forms of amplitude modulation may introduce measurement errors.
Multi-tone signals (containing multiple frequency components), or signals with significant harmonic content (> -45 dBc) may introduce measurement errors at high power levels. (Specifications for the power sensors are in the datasheet).
These power sensors measure CW power, displayed on a compatible power meter in logarithmic (dBm or dB) or linear (Watts or %) measurement units.
