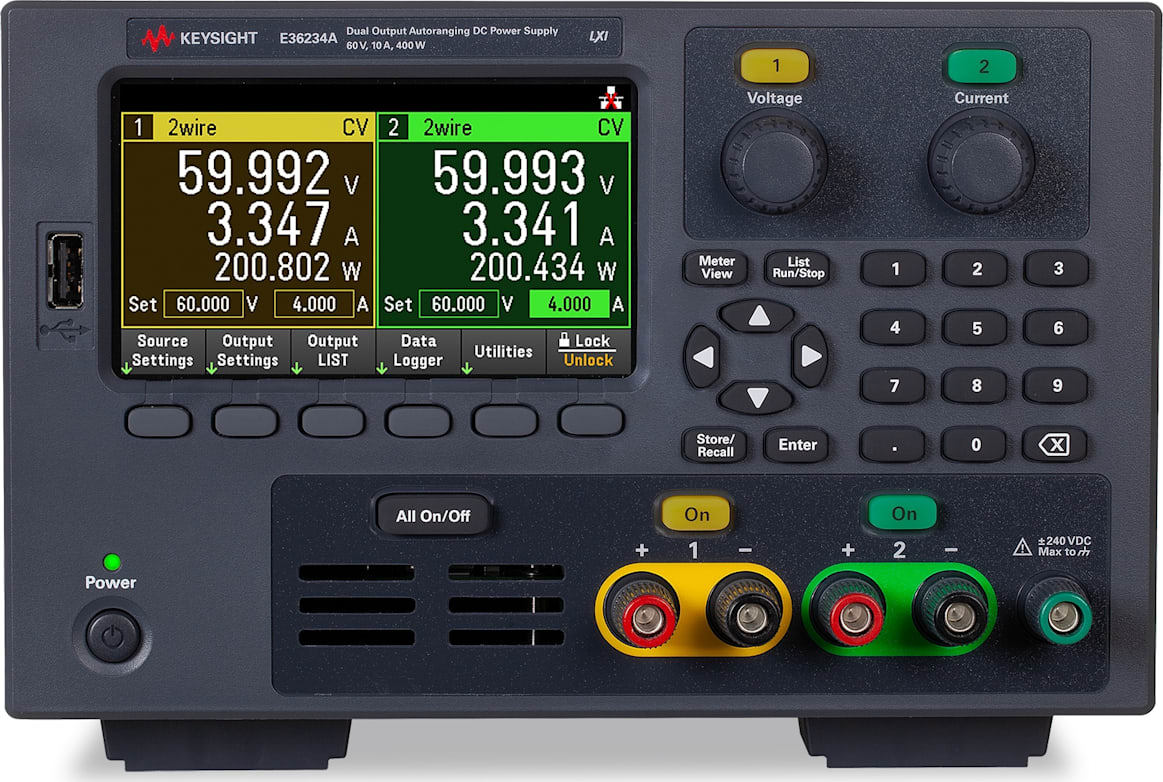

• E36200 Series Autoranging Power Supply, Dual output, 400W, 2 x 60V/10A, LAN, USB
• DC output rating - Output 1: 0 to 60V, 0-10A; Output 2: 0 to 60V, 0 to 10A
• Output ripple and noise: < 350 uVrms / < 1 mArms
• Accuracy: 0.03% +8 mV
• Connectivity: USB, LAN (GPIB Optional)

The Keysight E36200 Series autoranging bench power supply can power devices that typically require higher output power supplies with larger watt ratings. A single output E36200 Series autoranging bench power supply can power devices requiring up to 200 W. In comparison, a dual output supply provides two independent 200 W outputs that can combine into a single 400 W output. Three technologies generate higher currents at more voltages: autoranging, auto-series, and auto-parallel. All four models use autoranging outputs to provide maximum current at all voltages. Auto-series and auto-parallel internally combine the outputs of the dual output models, creating a single 400 W output.

Designed for Power-Hungry Devices

The E36200 Series has single and dual output power and is intended for bench applications that require power up to 400 W. Autoranging technology gives the highest current available at all output voltage. Power devices with up to 40 A (E36233A) or voltage up to 120 V (E36234A) use an auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power. A single output supply can power devices requiring less than 200 W or two devices are powered simultaneously with a dual output power supply.

The E36200 Series is a fully SCPI programmable power supply with built-in USB, LAN, and optional GPIB interfaces. Advanced features include data logging, LIST mode, and synchronization through input and output triggers. High current applications benefit from an adjustable slew rate and remote 4-wire sense. Adjustable slew rate is necessary to avoid large inrush currents while remote sense ensures the correct output voltage at the DUT compensating for losses in the leads due to the higher current.

Clean Reliable Power

Making meaningful measurements starts with powering your device correctly. The E36200 Series provides clean power with less than 350 µVrms ripples and noise. Precise output control allows voltage set with 0.03% accuracy and current set with 0.1% accuracy. Similar readback accuracy allows precision measurements to be made from the front panel, eliminating the need for an external multimeter. For currents, a flow measurement range of less than 100 mA improves the measurement resolution and accuracy. Load and line regulation better than 0.01% ensures a steady output when power line and load changes occur, giving you more peace of mind.

To further improve the voltage regulation and measurement accuracy of the DC outputs, the E36200 Series offers you a 4-wire remote sensing capability along with the convenience of 2-wire local sensing on all outputs. Remote sensing requires the addition of a second set of leads to monitor the voltage at the test device. It is particularly useful for compensating for the voltage drops in the power leads when using the higher output currents. Internal relays ease switching between 2-wire local sensing and 4-wire remote sensing thus eliminating the need for shorting bars or jumpers commonly found on other bench power supplies.

Convenient Benchtop Capabilities - Reduce Space, Cost, Noise

The two outputs on the E36233A and E36234A are controllable independently and are completely isolated. You are getting two power supplies in one instrument which saves maintenance costs. It also saves space on the bench as you can power up multiple analog/digital circuitries or devices with a single instrument. The two outputs on these models can also be set to series or parallel mode on the front panel to double the current up to 40 A (E36233A) and voltage up to 120 V (E36234A). The binding posts on the E36233A are specifically designed to handle high currents, ensuring the safety of your setup. The E36200 Series automatically lowers the fan speed under the load/ no-load condition to eliminate annoying acoustic noise through a thermal control circuit. The E36200 Series also gives you rear output terminals for easy wiring, which is ideal for both bench and system setup.

The user can easily create data logging measurements over a specific time frame. The E36200 Series simultaneously logs data on all DC outputs, both voltage and current measurements, spaced by a programmable sample period, to the large color display and a file. Export the data logger display in PNG and BMP file formats or export the time-stamped data as a . CSV file for reports and documentation. The built-in memory allows logging data without a USB drive.

Also, simulate power problems or normal operation with either sequencing or list mode. Sequence each channel on the E36200 Series individually to turn on or turn off with a delay. Generate complex sequences of output changes with rapid, precise timing synchronized with internal or external signals by using LIST mode. The adjustable voltage slew rate allows easy control of the speed at which the output slews from one voltage to another. All these are programmable through the front panel or computer control for maximum productivity.

BenchVue software for the PC makes it simple to connect, control, and view Keysight power supplies simultaneously with other Keysight bench instruments without programming.

• Visualize the output of multiple power supplies simultaneously
• Log data, capture screenshots and save a system state
• Recall a past state of your bench to replicate results
• Export measurement data in desired format fast
• Quickly access manuals, drivers, FAQs, and videos
• Monitor and control your bench from mobile devices
