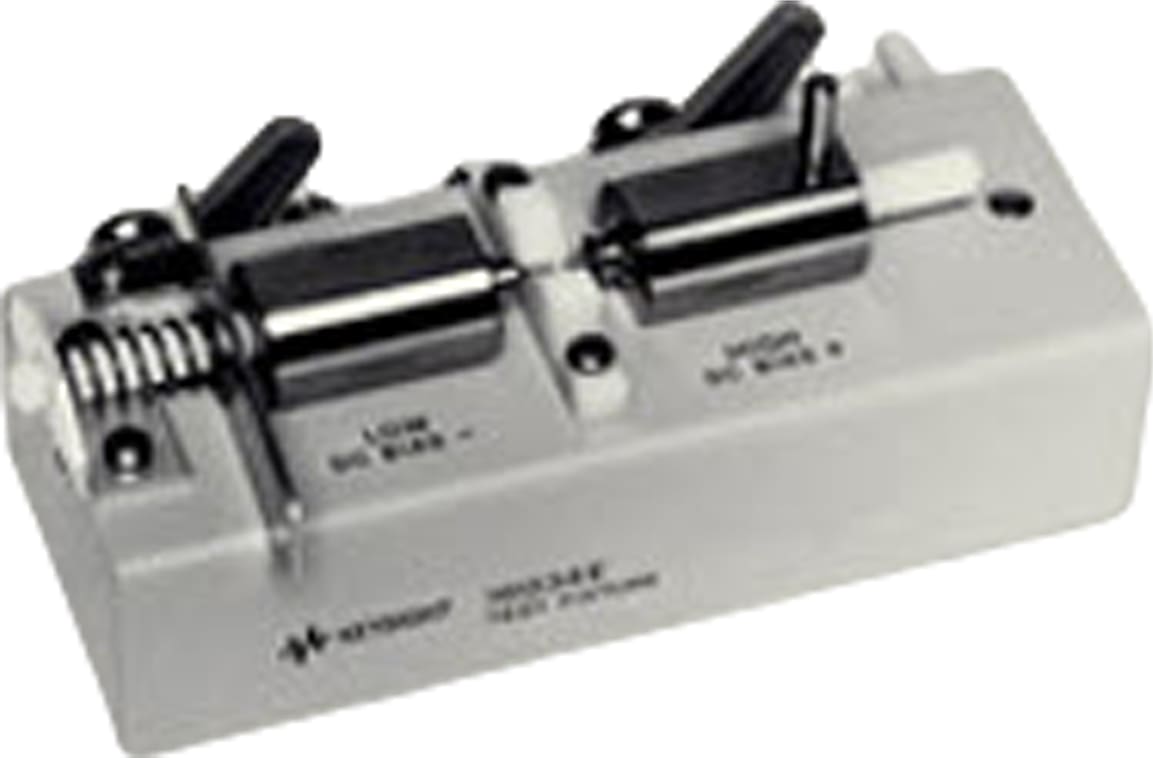

Keysight 16034E – SMD Test Fixture, 40 MHz
The Keysight 16034E is a test fixture designed for impedance evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 1.6mm(L) x 0.8mm(W).
This test fixture is designed to facilitate easy and accurate measurements of chip-type components and similar types not furnished with lead wires. Connection of sample components to the Keysight 16034E is done by simply pressing the loading lever to left, inserting sample components in the V-mount center section (between fixture jaws), and releasing the lever. Components that may be measured with the Keysight 16034E are the rectangular paralleled chip, cylindrical chip, and others similar in shape and type.
Applicable SMD Size
- 1608, 2012, 3216, 3225, 4520, 5750
