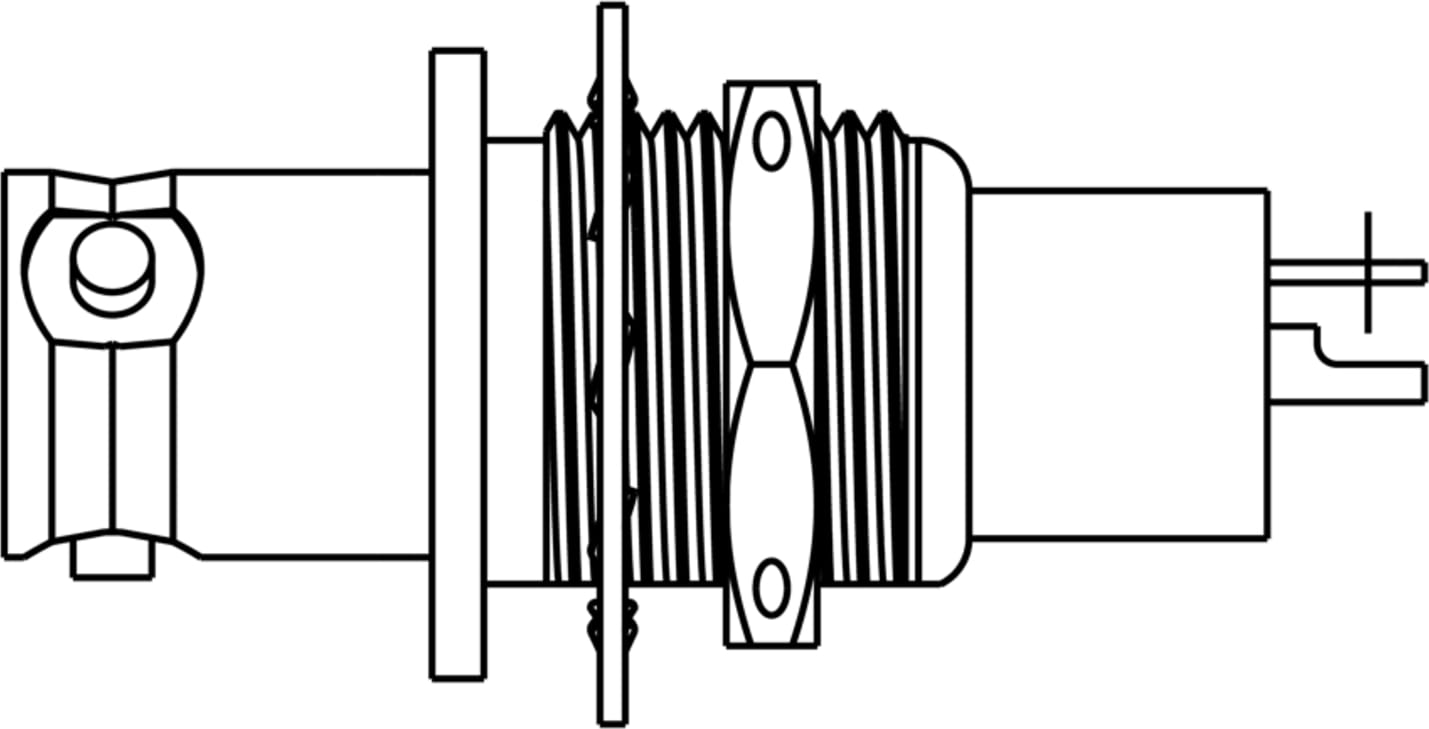

Keithley TRX-1100V-TBC - Female-Bulkhead Connector

Name: Keithley TRX-1100V-TBC - Female-Bulkhead Connector
Brand: Keithley
SKU: KeithleyTRX-1100V-TBC
Price: 152.00 USD
Availability: InStock

0 reviews | Model: Keithley TRX-1100V-TBC

Compare

3-SLOT 1100V TRIAX FEMALE BULKHEAD CONNECTOR

3-slot female-bulkhead adapter rated for 1100 V
The female connector of this adapter will only mate with 3-slot male triaxial connectors (Keithley part number TRX-1100V-CONN) and cables (Keithley part number TRX-1100V-*) that meet the safety standards for spacing
Can be used in applications that use the Keithley Instruments Model 2470 High Voltage Source Meter® Instrument
It is intended for instrument testing that requires high voltage and high throughput combined with DC measurement capability and broad testing flexibility
Materials: Brass with nickel plated body, Beryllium copper with gold and nickel-plated center conductor, Brass with gold and nickel-plated inner shield, Teflon insulators, Brass with nickel plated body hex nut, Brass with nickel plated phosphor bronze lock washer
Voltage rating: Center contact to inner shield: 707 V dc; Center contact and inner shield to outer shell: 1500 V dc
Contact resistance: Center contact: 2.0 mΩ; Inner shield: 1.0 mΩ; Outer shell: 0.5 mΩ
Insulation resistance: Center to guard: 1 x 1014 Ω; Guard to shell: 1 x 1012 Ω
Dielectric withstand voltage: Center contact to inner shield: 2121 V dc; Center contact and inner shield to outer shell: 2913 V dc

View Product Details

List Price: $160.00

Your Price: $152.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Keithley TRX-1100V-TBC 3-SLOT 1100V TRIAX FEMALE BULKHEAD CONNECTOR	Keithley TRX-1100V-CONN 3-SLOT MALE HIGH VOLTAGE TRIAX CABLE CONNECTOR	Keithley TRX-1100V-FFBARREL 3-SLOT 1100V TRIAX FEMALE TO FEMALE BARREL INTERCONNECT	Keithley TRX-1100V-FFFTEE 3-SLOT 1100V TRIAX FEMALE TO DUAL FEMALE TEE ADAPTER	Keithley TRX-1100V-FMFTEE 3-SLOT 1100V TRIAX MALE TO DUAL FEMALE TEE ADAPTER	Keithley TRX-1100V-PCBCONN 3-SLOT FEMALE HIGH VOLTAGE PC BOARD MOUNT CONNECTOR
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Keithley TRX-1100V-TBC

3-slot female-bulkhead adapter rated for 1100 V
The female connector of this adapter will only mate with 3-slot male triaxial connectors (Keithley part number TRX-1100V-CONN) and cables (Keithley part number TRX-1100V-*) that meet the safety standards for spacing
Can be used in applications that use the Keithley Instruments Model 2470 High Voltage SourceMeter® Instrument
It is intended for instrument testing that requires high voltage and high throughput combined with DC measurement capability and broad testing flexibility
Materials: Brass with the nickel-plated body, Beryllium copper with gold and nickel-plated center conductor, Brass with gold and nickel-plated inner shield, Teflon insulators, Brass with nickel-plated body hex nut, Brass with nickel-plated phosphor bronze lock washer

Female-Bulkhead Connector

The Keithley Instruments TRX-1100V-TBC is a 3-slot female-bulkhead adapter rated for 1100 V. The female connector of this adapter will only mate with 3-slot male triaxial connectors (Keithley part number TRX-1100V-CONN) and cables (Keithley part number TRX-1100V-*) that meet the safety standards for spacing.

This connector can be used in applications that use the Keithley Instruments Model 2470 High Voltage Source Meter Instrument. It is intended for instrument testing that requires high voltage and high throughput combined with DC measurement capability and broad testing flexibility.
