Keithley TRX-1100V-PCBCONN - High-Voltage Female PCB Connector

Name: Keithley TRX-1100V-PCBCONN - High-Voltage Female PCB Connector
Brand: Keithley
SKU: KeithleyTRX-1100V-PCBCONN
Price: 110.20 USD
Availability: InStock

0 reviews | Model: Keithley TRX-1100V-PCBCONN

Compare

3-SLOT FEMALE HIGH VOLTAGE PC BOARD MOUNT CONNECTOR

Feedthrough connector for panel mounting on printed circuit boards
Female triaxial connector rated for 1100 V
This connector is intended for applications that use the Keithley Instruments Model 2470 High Voltage SourceMeter Instrument
Can be used for instrument testing that requires high voltage and high throughput with DC measurement capability and broad testing flexibility
Commonly mated to the Keithley Instruments TRX-1100V-CONN 3-Slot Male High-Voltage Triaxial Cable Connector
Characteristic impedance: Nonconstant
Insulation resistance: 4 x 1015 Ω minimum
Voltage rating: Center contact to intermediate 500 VRMS; Intermediate contact to outer body 1000 VRMS
Dielectric withstanding voltage: Center contact to intermediate 1500 VRMS; Intermediate contact to outer body 2500 VRMS

View Product Details

List Price: $116.00

Your Price: $110.20

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Keithley TRX-1100V-PCBCONN 3-SLOT FEMALE HIGH VOLTAGE PC BOARD MOUNT CONNECTOR	Keithley TRX-1100V-CONN 3-SLOT MALE HIGH VOLTAGE TRIAX CABLE CONNECTOR	Keithley TRX-1100V-FFBARREL 3-SLOT 1100V TRIAX FEMALE TO FEMALE BARREL INTERCONNECT	Keithley TRX-1100V-FFFTEE 3-SLOT 1100V TRIAX FEMALE TO DUAL FEMALE TEE ADAPTER	Keithley TRX-1100V-FMFTEE 3-SLOT 1100V TRIAX MALE TO DUAL FEMALE TEE ADAPTER	Keithley TRX-1100V-TBC 3-SLOT 1100V TRIAX FEMALE BULKHEAD CONNECTOR
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Keithley TRX-1100V-PCBCONN

Feedthrough connector for panel mounting on printed circuit boards
Female triaxial connector rated for 1100 V
This connector is intended for applications that use the Keithley Instruments Model 2470 High Voltage SourceMeter Instrument
Can be used for instrument testing that requires high voltage and high throughput with DC measurement capability and broad testing flexibility
Commonly mated to the Keithley Instruments TRX-1100V-CONN 3-Slot Male High-Voltage Triaxial Cable Connector

High-Voltage Female PCB Connector

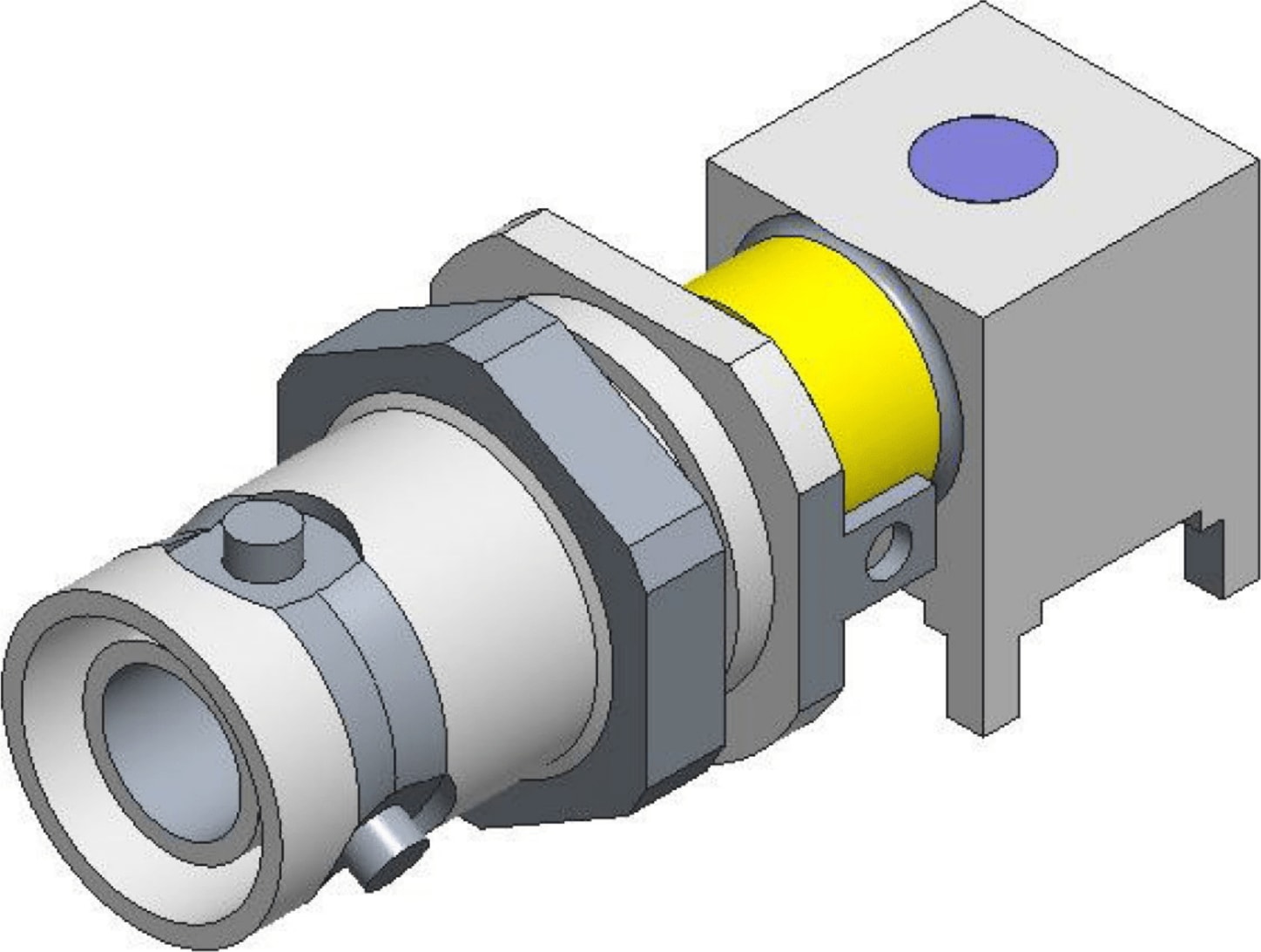

The TRX-1100V-PCBCONN is a feedthrough connector for panel mounting on printed circuit boards. It is a female triaxial connector rated for 1100 V. This connector is intended for applications that use the Keithley Instruments Model 2470 High Voltage SourceMeter® Instrument. It can be used for instrument testing that requires high voltage and high throughput with DC measurement capability and broad testing flexibility. This connector is commonly mated to the Keithley Instruments TRX-1100V-CONN 3-Slot Male High-Voltage Triaxial Cable Connector.
