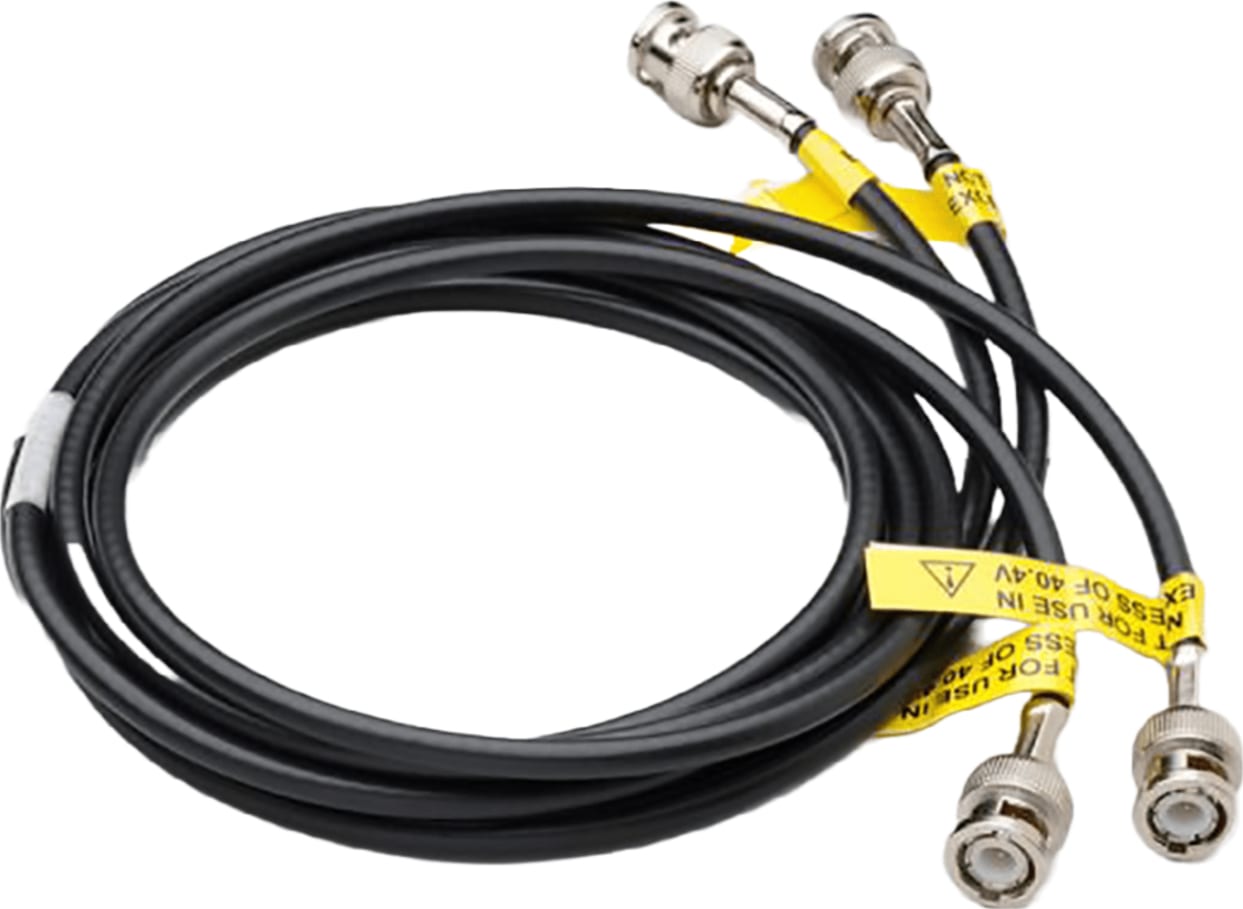

50-Ohm BNC-to-BNC Coaxial Cables (2x 3m Cables)
The Keithley Instruments 2601B-PULSE-CA2 50 Ω BNC-to-BNC Coaxial Cables accessory includes two 3 m coaxial cables. These cables are intended for connections to SENSE HI and SENSE LO. The FORCE HI and FORCE LO connections are made using the 2601B-PULSE-CA3 BNC-to-BNC Cable Kit (sold separately). These cables are intended for use with the Model 2601B-PULSE System SourceMeter® instrument with the 2601B-P-INT Interlock and Cable Connector Box installed.
Characteristics
- The characteristics listed below are for individual cables.
- Rated voltage and current: 40 V maximum, 11 A
- Operating environment: −40 °C to +85 °C
- Characteristic impedance: 50 Ω
- DC resistance: 175 mΩ
- Cable diameter: 2.85 mm (0.112 in.)
