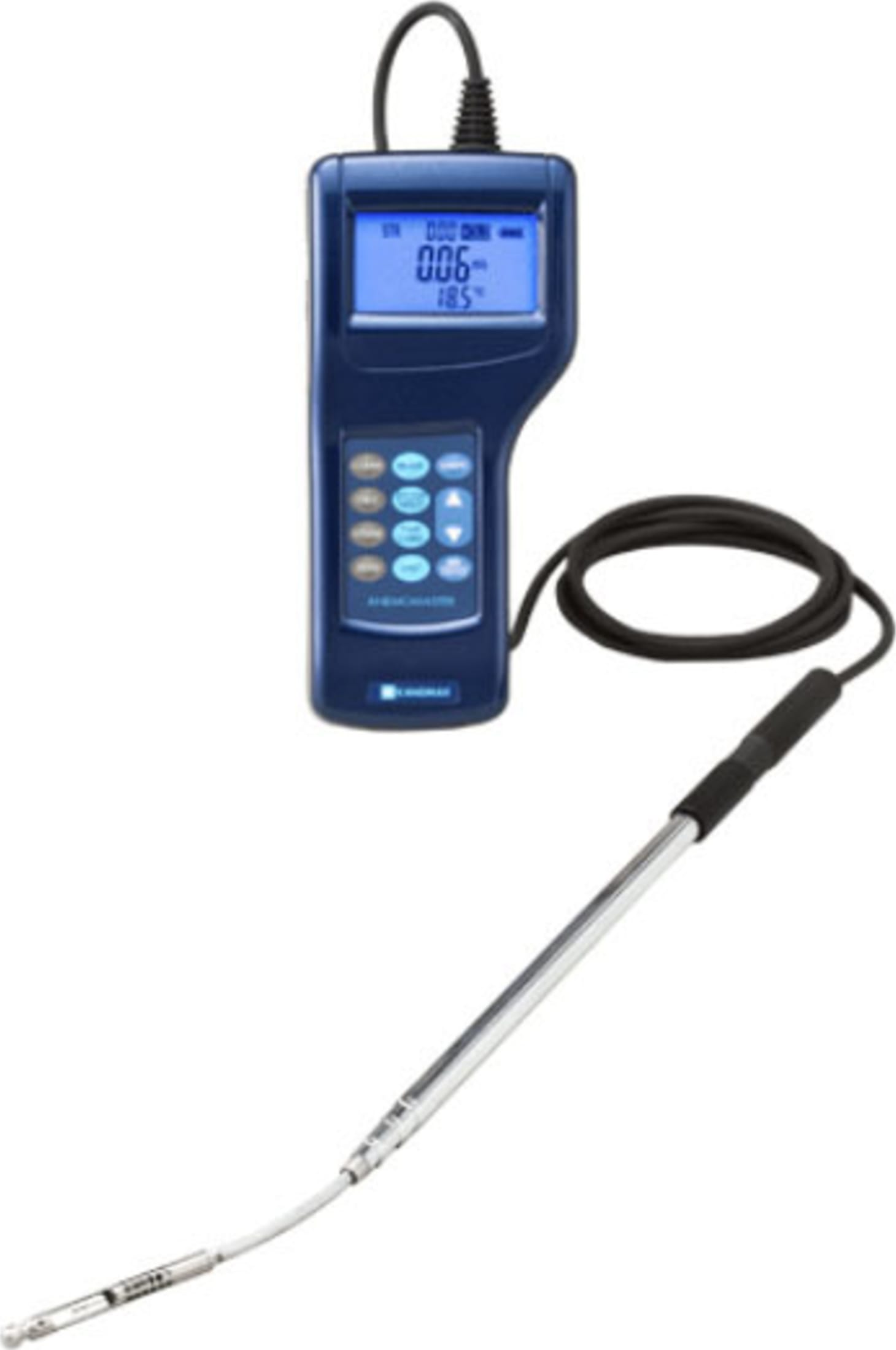

Kanomax 6036 Anemomaster Standard Anemometer

Name: Kanomax 6036 Anemomaster Standard Anemometer
Brand: Kanomax
SKU: Kanomax6036
Price: 980.00 USD
Availability: InStock

0 reviews | Model: Kanomax 6036

Compare

Anemomaster Professional

Simultaneously measures and displays air velocity and air temperature
Telescopic articulating probe makes it easy to take traverse measurements at ceiling ducts and other hard to reach places.
Data-logging function with storage capacity of up to 1500 records which allows users to work longer before pausing to upload data to a PC. (Model 6036).
USB connection, easy to upload to your PC or laptop. (Model 6036).
Highly Visible blacklit display
The new Anemomaster offers an optional hands-free case that can be comfortably worn by the contractor.

View Product Details

List Price: $980.00

In Stock:

View Payment Options

Recommended for you

Multi-function hot-wire anemometer with telescopic, articulating probe. AnemomasterTM now comes in Professional and Standard versions. The Professional model has built-in datalogging and a USB PC communication cable.

The Standard is a affordable alternative for the contractor seeking an economical, but still highly accurate instrument. The articulating probe has been improved with enhanced durability. The new design flexes easily and will last for many years. The telescoping feature of the probe makes it easy to take traverse measurements at ceiling ducts and other hard to reach places.

Applications

HVAC Testing
Facility Maintenance
Critical Enviroment Certification
IAQ Investigations

Air Velocity Probe Specifications


Straight Probe for Model 6035 Length: 39.4in.(100 cm) - Telescopic Diamter of Tip: 0.236in. (6.0mm) Diameter of Base: 0.472in.(12.0mm)	Articulating Probe for Model 6036 Length: 39.4in.(100 cm) - Telescopic Diamter of Tip: 0.236in. (6.0mm) Diameter of Base: 0.472in.(12.0mm) Articulating section length: 3.543in.(90.0mm)

		Anemomaster Professional Model 6036	Anemomaster Standard Model 6035
Probe Type		Telescopic and Articulating Tip	Telescopic
Air Velocity
	Range	20 to 6,000 FPM (0.01 to 30.0 m/s)
	Accuracy	+/- 3.0% of reading or 0.015 m/s whichever is greater
Volumetric Flowrate
	Imperial	9031 CFM (at 20 FPM) 2,709,360 CFM (at 6000 FPM)
	Metric	2,341 m3/s (at 0.1 m/s) 702,270 m3/s (at 30.0 m/s)
Duct Size		0 to 2550 mm 0 to 255 inches
Temperature
	Range	-4 to 158°F (-20 to 70°C)
	Accuracy	+/- 1°F or +/- 0.5°C
Differential Pressure *option
	Range	-5.00 to +5.00 KPa
	Accuracy	+/- (3.0 % of reading +/- 0.01) KPa
Interface
	Digital	USB and RS232C (for print-out)	RS232C (for print-out)
	Analog *option	DC 0 to 3 V (only for air velocity measurements)
Data Storage Capacity		Up to 1500 records	n/a
Power Supply		6 x AA Batteries or AC Adapter
Standard Accessories		Carrying Case, Operation Manual, AA Batteries, AC Adapter Communication Cable (only 6036), Data processing Software (on;y 6036), NIST Certificate
Options		Analog Output, Pressure sensor option, Portable Printer, Printer Cable, Rolled Paper for printer

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Air Velocity Max	6000 ft/min
Air Velocity Min	20 ft/min
Accuracy Air Velocity	+/- 3.0% of reading or 0.015 m/s whichever is greater
Temperature	Yes
IR Sensor for Tempature	No
Dew Point	No
Windchill	No
Light Meter	No
Data Hold	Yes
Thermal Printer Option	No
Interchangable Probe Options	No
Test Equipment General Attributes
Warranty	2 YEARS
Interfaces I/O	USB
Product Weight	2 LBS
Product Height	3.4 IN
Product Length	7.4 IN
Product Width	1.6 IN
Shipping Weight	2 LBS
Data Logging	Yes
Calibration Included	NIST Calibration
Battery Type	AA
