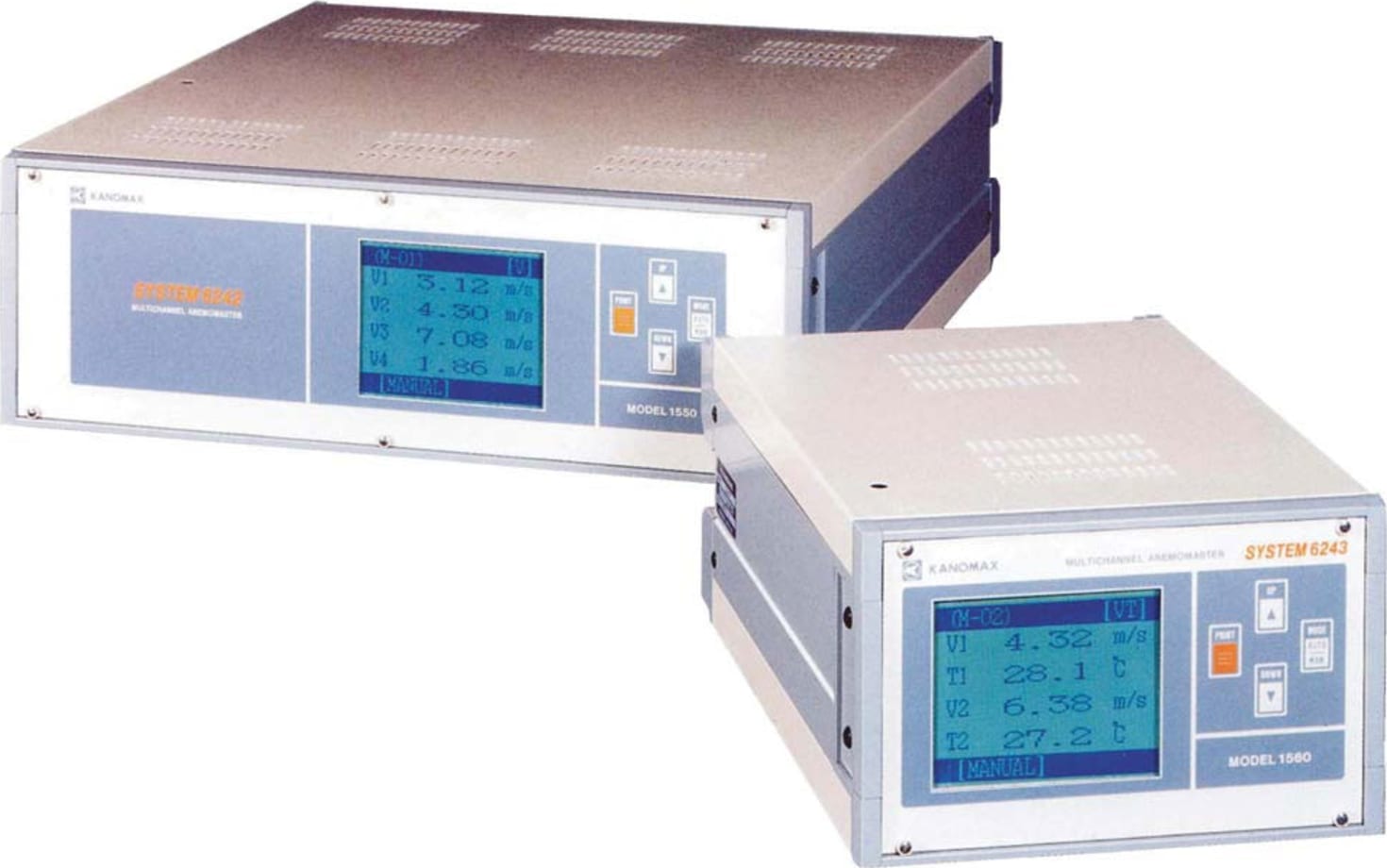

Kanomax 1550 Multi-Channel Anemomaster

Name: Kanomax 1550 Multi-Channel Anemomaster
Brand: Kanomax
SKU: Kanomax1550
Price: 6800.00 USD
Availability: InStock

0 reviews | Model: Kanomax 1550

Compare

Multi-channel Anemomaster Main Unit (for 16 modules)

Five types of modules add more freedom to system configuration:

4-channel air velocity module Model 1504
2-channel air velocity and temperature module Model 1511
1-channel air velocity, temperature, and humidity module Model 1512
Static pressure module Model 1503
Analog output module Model 1510

View Product Details

List Price: $6,800.00

In Stock:

View Payment Options

Recommended for you

Real-Time Air Quality Monitoring System

Main Unit Features: One unit of Model 1550 has 64 Channels for air velocity. For a larger system, connect up to 5 units in a cascade and add a computer for control. It makes a total of 320 channels. Flexibility in system configuration means greater freedom, simplicity, and efficient in measurement.

Velocity


Model 0962-00 Caramel V: 20 – 9840 fpm (0.1 – 50 m/s)	Model 0963-00 A-200 (Rod) V: 20 – 9840 fpm (0.1 – 50 m/s)	Model 0965-00/01 Spherical V: 20 – 4,920 fpm (0.1 – 25 m/s)	Model 0964-01/02 Omni-directional V: 20 – 4920 fpm (0.1 – 25 m/s)	L-Shaped (04)


L-Shaped (08)	L-Shaped (03)	L-Shaped (07)	Model 0965-03/04 Miniature with Built-in Temperature Compensation V: 20 – 4920 fpm (0.1 – 25 m/s)	Model 0965-07/08 Miniature with Independent Temperature Compensation V: 20 – 4920 fpm (0.1 – 25 m/s)

Velocity & Temperature


Model 0962-21 Caramel V: 20 – 9840 fpm (0.1 – 50 m/s) T: 32 – 212°F (0 – 100°C)	Model 0963-21 A-200 Rod V: 20 – 9840 fpm (0.1 – 50 m/s) T: 32 – 212°F (0 – 100°C)	Model 0965-21 Spherical V: 20 – 4920 fpm (0.1 – 25 m/s) T: 32 – 212°F (0 – 100°C)

Velocity, Temperature, & Humidity


Model 0963-31 A-200 Rod V: 20 – 9840 fpm (0.1 – 50 m/s) T: 32 – 140°F (0 – 60°C) H: 5 – 95%RH	Model 0965-31 Spherical V: 20 – 9840 fpm (0.1 – 50 m/s) T: 32 – 140°F (0 – 60°C) H: 5 – 95%RH

Modules


Modules	Model 1504 V Module 4 ch.	Model 1511 VT Module 2 ch.


Model 1512 TVH Module 1 ch.	Model 1503 Pressure Module 2 ch.	Model 1510 Analog Output Module

Model	1550	1560
Display	LCD (with backlight) Simultaneously displays on a module basis
	MAN: Select modules by operating the UP/DOWN switches
	AUTO: Automatically select s modules every 2 seconds to display data
Function	Burst Mode: Transfers data of all channels at high speed Channel Mode: Transfers data of the specific channel only
	Data Selection: Outputs instantaneous values every specified sampling time, and outputs the average
Interface	Data transfer: RS232C (standard), extended RS232C (optional) and GP-IB (optional)
	Baud Rate: 300, 600, 1200, 2400, 4800, 9600, 19200bps(selectable)
	Printer output: Centronics (the system prints data only of the module display, every 2 seconds.)
Dimensions	16.9” x 19.6” x 5.5” (430 x 500 x 140 mm)	8.9” x 12.8” x 5.5” (226 x 325 x 140mm)
Weight	Approx. 22lbs (Approx. 10kg)	Approx. 11lbs (Approx. 5kg)

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Hot-Wire
Measurement (anemometer)	m/s
Air Velocity Max	9840 ft/min
Air Velocity Min	0 ft/min
Accuracy Air Velocity	3%FS
Humidity	Yes
Temperature	Yes
IR Sensor for Tempature	No
Thermocouple Sensor for Temperature	No
Dew Point	No
Windchill	No
Light Meter	No
Water Proof	No
Min/Max Display	Yes
Data Hold	No
Thermal Printer Option	No
Interchangable Probe Options	Yes
Replaceable Vane	No
Metal Vane	No
Test Equipment General Attributes
Unique Features	One unit of Model 1550 has 64 Channels for air velocity. For a larger system, connect up to 5 units in a cascade and add a computer for control. It makes a total of 320 channels. Flexibility in system configuration means greater freedom, simplicity, and efficient in measurement. 4-channel air velocity module Model 1504. 2-channel air velocity and temperature module Model 1511. 1-channel air velocity, temperature, and humidity module Model 1512. Analog output module Model 1510.
Warranty	1 YEARS
Interfaces I/O	GPIB, RS-232
Product Weight	22 LBS
Product Height	16.9 IN
Product Length	19.5 IN
Product Width	5.5 IN
Data Logging	Yes
Country of Origin	Japan
