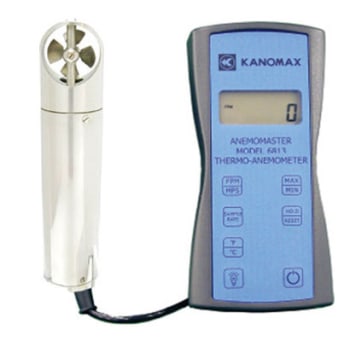

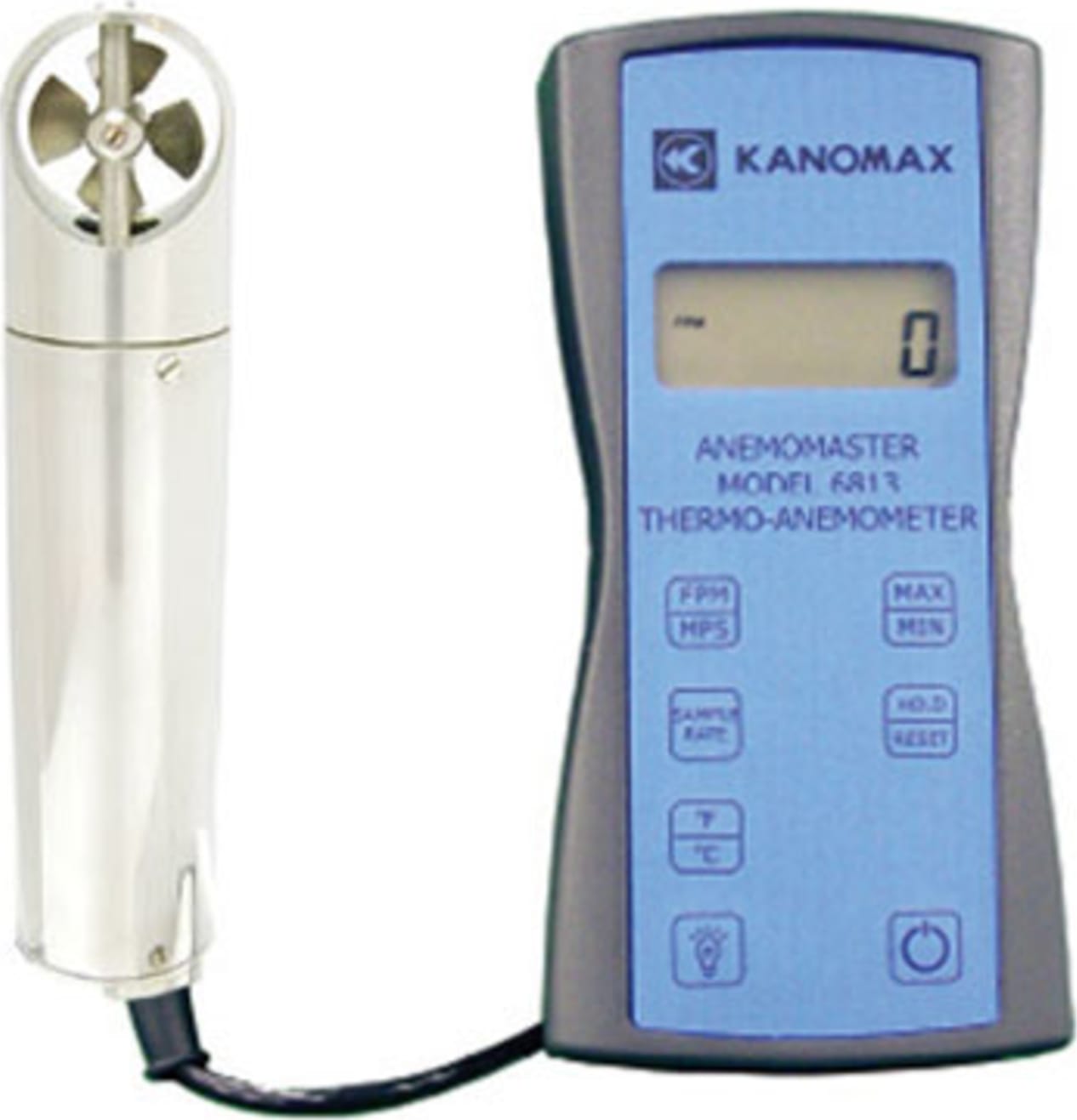

Kanomax 6813-S - 1.00" Vane Anemomaster Velocity/Temperature

Name: Kanomax 6813-S - 1.00" Vane Anemomaster Velocity/Temperature
Brand: Kanomax
SKU: Kanomax6813-S
Price: 1480.00 USD
Availability: InStock

0 reviews | Model: Kanomax 6813-S

Compare

1.00" Vane Anemomaster Velocity / Temperature

Available with 1" temperature on vane or 2.75" vane
Automatically calculates volume flow in CFM (cubic feet per minute) or CMH (cubic meters per hour)
Enter duct width, height, or diameter in either inches or centimeters
Duct dimensions are stored in memory on turn-off and do not need to be re-entered
Store up to 10 different commonly-used duct sizes for quick, convenient readings in the field
Rated from 50 to 7800 feet per minute
Industrial grade enclosure and probe
Large display with backlight
Easy to use keypad
Also displays airflow in feet per minute and meters per second
IP40 rated (IP65 with OPTIONAL Boot & Seal)

View Product Details

List Price: $1,480.00

In Stock:

View Payment Options

Recommended for you

Kanomax 6813-S - 1.00" Vane Anemomaster Velocity/Temperature

Available with 1" temperature on vane or 2.75" vane
Includes NIST calibration
Three output options - analog voltage, USB, RS232

Vane anemometers are an excellent choice for measuring turbulent airflows. The Anemomaster 6810 series offers a 1% accuracy and is able to accurately measure airflows as low as 40 feet per minute.

The Kanomax 6810 series can be configured with different probes, and one of three output options - analog voltage, RS232 and USB. Please see the chart below for a list of part numbers and available options.

	6812	6813	6814
AP275 (2.75″ Vane) or AP100 (1.00″ Vane)	✔	✔	✔
APT275 (2.75″ Vane) or APT100 (1.00″ Vane ) Temperature on Vane		✔
Relative Humidity (RH)/ Temperature Probe			✔
Optional Outputs
USB Communication	option (10216)	option (10223)
RS232 Communication	option (10217)	option (10224)
Analog 0 to 5 Volt output	option (10215)	option (10222)
Analog & RS232	option (10219)	option (10224)
Analog & USB	option (10218)	option (10225)
Protective Boot (10227)	option	option	option

Model		6812	6813	6815
Air Velocity	Probe AP275	40 to 7800 FPM (0.2 to 40 m/s)
	Probe AP100	60 to 6800 FPM (0.3 to 35 m/s)
	Accuracy	±1.0% of Reading ±1 digit
	Resolution	1 FPM or 0.01 m/s
Temperature	Air Vel. Probe	-	-22 to 212 F (-30 to 100C)
	Accuracy	-	±0.3°C ±0.2% of Reading in °C
	Resolution	-	0.1 F or 0.1°C (1 F below -99.9 F)
Relative Humidity	Range	-		5.0 to 95.0 %RH
	Accuracy	-		±2.0 %RH
	Resolution	-		0.1 %RH
Display		0.5 inch LCD, 4 digits with LED Backlight
Operating Temperature		Instrument: 32 to 125F (0 to 50C)
		Probe: -4 to 212F (-20 to 100C)
Power Supply		3 AA Alkaline Batteries
Operating Time (Battery)		Approximately 150 hours
Dimensions	Instrument	W 3.2 x D 1.5 x H 6.5 inches (8.2 x 3.8 x 16.5 cm)
	Probe AP275	2.75 inch diameter
	Probe AP100	1.00 inch diameter
	RH/Temp Probe	-		6 inch x 1 inch diameter

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	m/s
Accuracy Air Velocity	+/- 1.0 % of Reading +/- 1digit
Temperature	Yes
Test Equipment General Attributes
Interfaces I/O	RS-232, USB
Product Height	6.5 IN
Product Width	3.2 IN
HTS/Schedule B Number	9026.80.6000
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States
Other Information	Depth:: 1.5 inch
