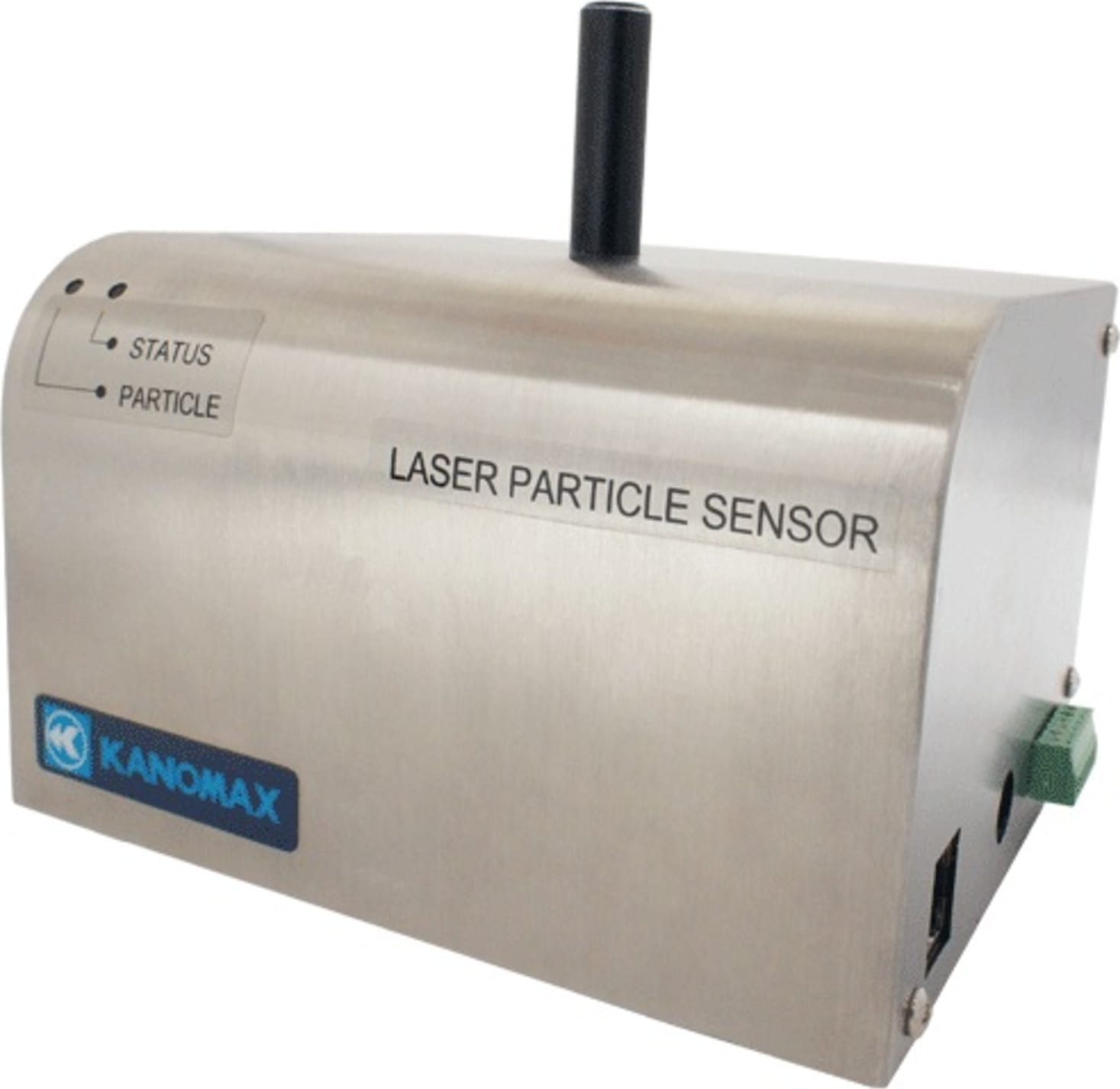

Kanomax 3716A Laser Particle Sensor

Name: Kanomax 3716A Laser Particle Sensor
Brand: Kanomax
SKU: Kanomax3716A
Price: 3500.00 USD
Availability: InStock

0 reviews | Model: Kanomax 3716A

Compare

Particle Sensor (1CFM, 0.3/0.5 m)

0.3 micron sensitivity
Available in two flowrates; 0.1 and 1.0 cfm
Analog Output makes it easy to integrate into existing systems
Compact body with stainless enclosure
Implement continuous facility monitoring with Kanomax Cleanroom Monitoring System
Applications
Cleanroom Facility Monitoring
Food Industry
Aerospace
Hospital Surgical Rooms

View Product Details

List Price: $3,500.00

In Stock:

Recommended for you

Light Source	Laser diode
Particle Sizes	0.3 & 0.5 um
Counting Efficiency	50% ± 20% at smallest particle channel
Flow Rate	1.0 cfm (28.3 lpm)
Concentration Unit	More than 500,000 particles/ft³ at 10% coincidence loss
Zero Count Level	Less than 1 count per 5 minutes
Vacuum Source	External Pump
Enclosure	Stainless Steel
Interface	RS485 & 4-20mA
Output	Particle counts, error status, alarm output
Standards	ISO 21501-4, JIS B, CE
Power supply	DC24V (over network hub)/9 to 28V (AC asapter)
Operating Environment	68 to 86°F (20 to 30° C)
Dimensions	5.9 x 4.7 x 3.9 inches
Weight	3.0 lbs (1.5 kg)
Calibration	ISO 21501-4 & NIST Traceable
Included Accessories	User Manual, AC adapter, configuration software, calibration certificate
Optional Accessories	Wall-mount bracket, RS485 to UCB converter for initial configuration, zero filter, sampling tube, Isokinetic inlet, vacuum pump, vacuum tubing

Indoor Air Quality/Particle Counter Template
Style (IAQ)	Fixed
Minimum Particle Size	0.3 microns
Selectable Particle Size	Yes
Measurement Types (IAQ)	Humidity, Temperature
Test Equipment General Attributes
Unique Features	0.3 / 0.5 µm
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	RS-485 Interfaces I/O 4-20mA
Product Weight	3.0 LBS
Product Height	5.9 IN
Product Length	4.7 IN
Product Width	3.9 IN
Country of Origin	United States
