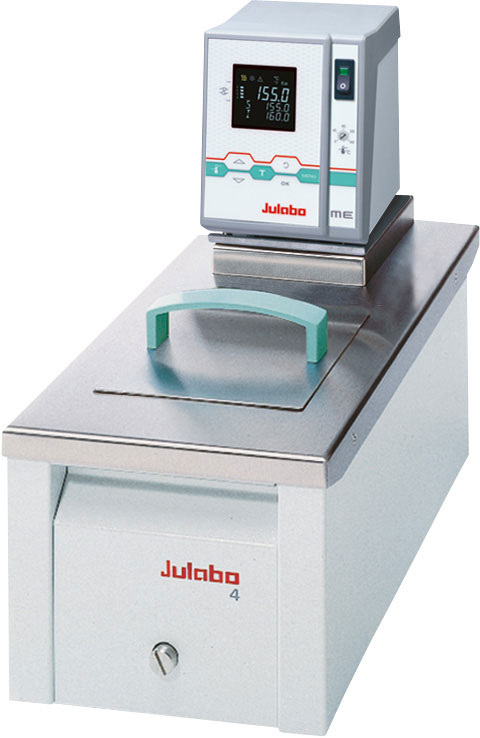

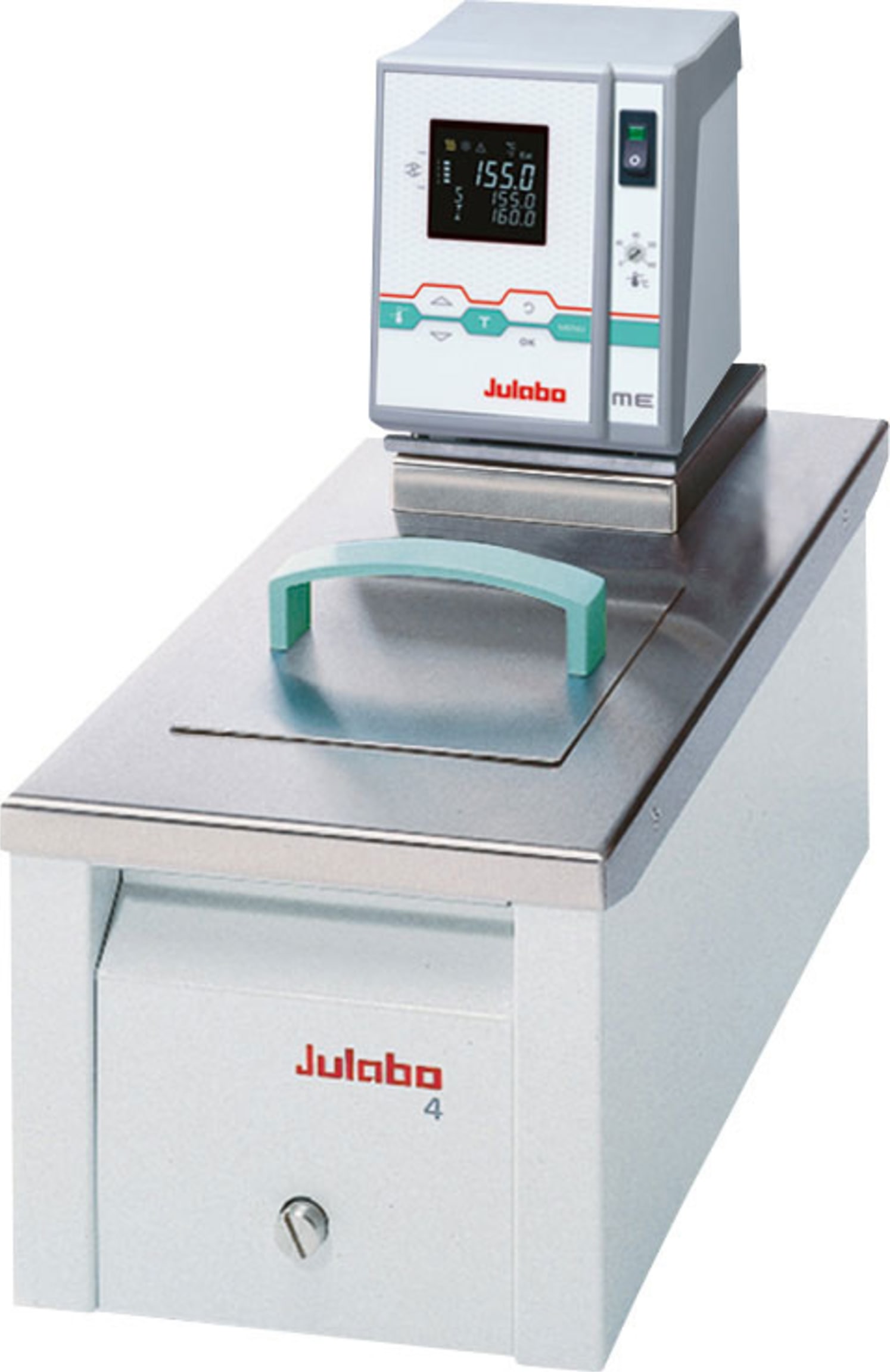

Julabo ME-4 Heating Circulator (+20 to +200ºC)

0 reviews | Catalog: 9162504 | Model: Julabo ME-4


Heating circulator +20...+200 deg C; 2 kW heater; 4L SS tank w lid, integrated cooling coil, drain valve 100-115V/50-60Hz

  • Heating Circulator (+20 to +200ºC)

Display

  • A perfect view - Ample, easy to read VFD Comfort display for simultaneous display of 3 values, warning functions, high temperature cut-off, pump stages (resolution 0.01 °C)
  • Pump stage and liquid level - Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT

Operation

  • Comfortable and detailed - Comfortable keypad with additional menu functions for pump stages, calibration, control parameters, programmer, warnings, etc.

Temperature Control

  • For higher demands - PID Temperature control with drift compensation and adjustable parameters, improved temperature stability for external applications, temperature stability ±0.01 °C internal, <±0.1 °C external
  • Highest measuring accuracy - ‘Absolute Temperature Calibration’ for manual compensation of a temperature difference, 3-point calibration

Technical Features

  • Clever pump system - Reliable and consistent pump capacity, electronically adjustable pump stages
  • Control from the external application - External Pt100 sensor connection for precise measurement and control directly in the external application
  • Serial connection - RS232 interface for PC connection, e.g. for data communication and recording of measured values
  • Easy program control - Integrated programmer for the execution of time and temperature dependant profiles, 1 temperature profile with 10 steps max., with real time clock

Warning & Safety Functions

  • Early warning system for low liquid level - Maximum safety for applications, optical and audible alarm, allows user to refill bath fluid before the unit shuts down
  • Early warning system for high/low temperature limits - Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function
  • Enhanced protective functions - Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and precise adjustments
  • For flammable bath fluids - Classification III (FL) according to DIN 12876-1
View Product Details

List Price: $4,404.50
