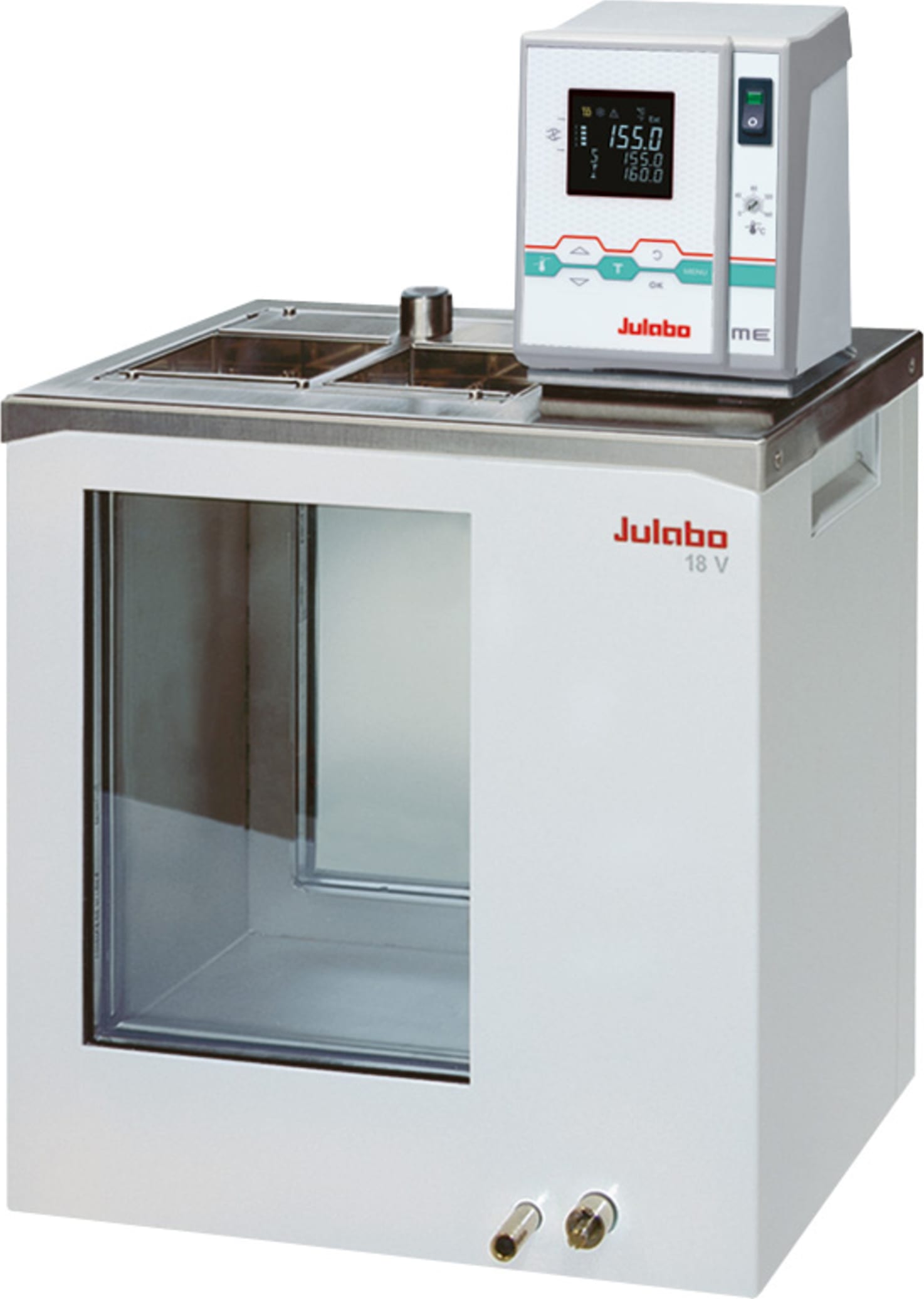

Visco Bath for internal temperature applications.

JULABO Visco Baths are used for precise temperature applications with capillary viscometers and density meters within the bath tank. The units offer high temperature accuracy and optimal temperature distribution throughout the bath. An integral cooling coil for cooling water is provided for temperature applications below or near ambient temperatures. The units are equipped with a holder for thermometers and therefore offer very good options for temperature calibration procedures and comparisons with accredited thermometers.

Characteristics

Display	A perfect view Ample, easy to read VFD Comfort display for simultaneous display of 3 values, warning functions, high temperature cut-off, pump stages (resolution 0.01 °C)
	Pump stage and liquid level Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT
Operation	Comfortable and detailed Comfortable keypad with additional menu functions for pump stages, calibration, control parameters, programmer, warnings, etc.
Temperature Control	For higher demands PID Temperature control with drift compensation and adjustable parameters, improved temperature stability for external applications, temperature stability ±0.01 °C internal, <±0.1 °C external
	Highest measuring accuracy 'Absolute Temperature Calibration' for manual compensation of a temperature difference, 3-point calibration
Refrigeration Technology	Consistent cooling capacity Easily removable venting grid for quick and easy cleaning
	100 % Cooling capacity 'Active Cooling Control' for cooling available throughout the entire working temperature range, fast cool-down even at higher temperatures
Technical Features	Clever pump system Reliable and consistent pump capacity, electronically adjustable pump stages
	Control from the external application External Pt100 sensor connection for precise measurement and control directly in the external application
	Serial connection RS232 interface for PC connection, e.g. for data communication and recording of measured values
	Easy program control Integrated programmer for the execution of time and temperature dependant profiles, 1 temperature profile with 10 steps max., with real time clock
Warning & Safety Functions	Early warning system for low liquid level Maximum safety for applications, optical and audible alarm, allows user to refill bath fluid before the unit shuts down
	Early warning system for high/low temperature limits Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function
	Enhanced protective functions  Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and precise adjustments
	For flammable bath fluids Classification III (FL) according to DIN 12876-1

Other characteristics

Bath cover with 4 round openings 51 mm dia. available as accessory (order no. 8 970 294).
Technical changes without prior notification.
Images may deviate from the original.

1	Mains power switch, illuminated
Navigation keys
2	1. Key: >OK< Start / Stop (pump / heater ) 2. >OK< in the menu Menu item / select submenu for setting Save set value Save selected parameter A beep signals the end of setting
After the actions Start, Stop and change from VFD Display to standard display the key ok is locked for a short time. The above graph "front side" shows an example for standard display.
3	1. Key: >Return< Stop (pump / heater ) 2. >Return< in the menu one menu level down Correction function for parameters or values (prior to OK) immediately back to standard display
4	1. Key: >Up / Down Push key quickly for single steps, Keep key pressed for fast change. 2. >Up/Down< in the menu  selection of menu items / parameters
Menu keys
5	Key: start the menu > warning and safety values<
6	Key: start the menu >temperature setpoints<
7	Key: display of MENU structure
10	VFD COMFORT-DISPLAY
11	Control indicators in the header
12	Control indicators in the header Temperature indication Internal or External actual value Temperature indication in °C  (°F not possible on this unit)
13	Display of set pump pressure stage
14	Adjustable excess temperature protection according to IEC 61010 - 2-010
15	Socket: control cable of J ULABO refrigerated circulator or output for alarm messages
16	Interface RS232: remote control via personal computer
17	Socket for external measurement and control sensor or external setpoint programming
18	Mains circuit breakers (resettable) 15 A
20	Mains power cable with plug
