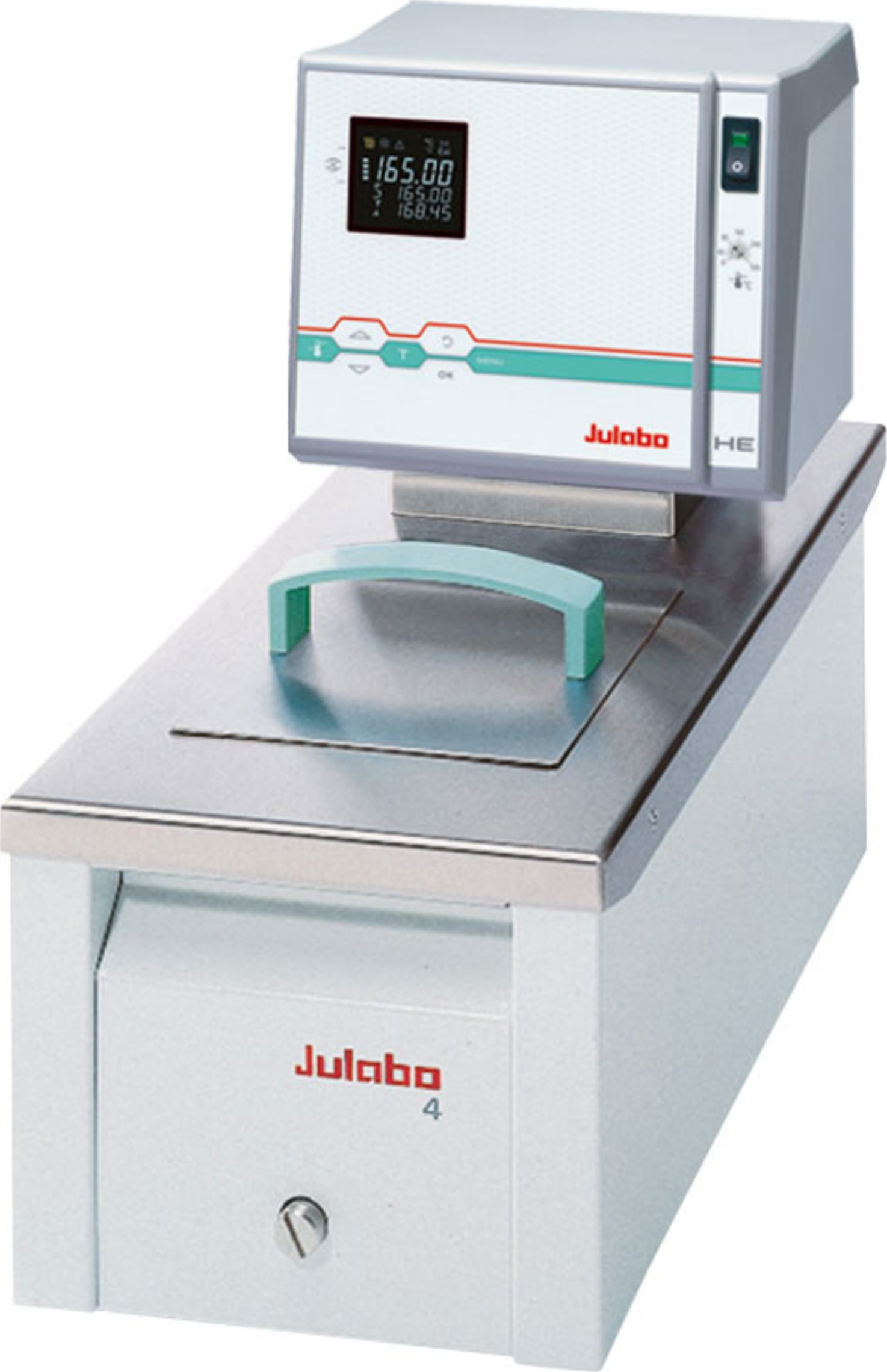

Julabo HE-4 Heating Circulator (+20 to +250ºC)

Name: Julabo HE-4 Heating Circulator (+20 to +250ºC)
Brand: Julabo
SKU: JulaboHE-4
Price: 5709.45 USD
Availability: InStock

0 reviews | Catalog: HE-4 | Model: Julabo HE-4

Compare

Heating circulator 20... 250 deg C; 1 kW heater; 4L SS tank w lid, drain valve, integrated cooling coil 100-115V/50-60Hz

Heating Circulator (+20 to +250ºC)

Display

A perfect view - Ample, easy to read VFD Comfort display for simultaneous display of 3 values, warning functions, high temperature cut-off, pump stages (resolution 0.01 °C)
Pump stage and liquid level - Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT

Operation

Comfortable and detailed - Comfortable keypad with additional menu functions for pump stages, calibration, control parameters, programmer, warnings, etc.

Temperature Control

For perfect results - ‘Intelligent Cascade Control’, automatic & self optimizing adjustment of PID control parameters, temperature stability ±0.005 °C internal, <±0.05 °C external
Full control - ‘Temperature Control Features’ for individual optimization, access to all important control parameters, additional settings for band limit, limits, Co-Speedfactor etc.
Highest measuring accuracy - ‘Absolute Temperature Calibration’ for manual compensation of a temperature difference, 3-point calibration

Technical Features

Clever pump system - Reliable and consistent pump capacity, electronically adjustable pump stages
Control from the external application - External Pt100 sensor connection for precise measurement and control directly in the external application
Serial connection - RS232 interface for PC connection, e.g. for data communication and recording of measured values
Easy program control - Integrated programmer for the execution of time and temperature dependant profiles, 1 temperature profile with 10 steps max., with real time clock

Warning & Safety Functions

Early warning system for low liquid level - Maximum safety for applications, optical and audible alarm, allows user to refill bath fluid before the unit shuts down
Early warning system for high/low temperature limits - Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function
Enhanced protective functions - Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and precise adjustments
For flammable bath fluids - Classification III (FL) according to DIN 12876-1

View Product Details

List Price: $6,729.00

Your Price: $5,709.45

Sign-in for GSA Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Julabo HE-4 Heating circulator 20... 250 deg C; 1 kW heater; 4L SS tank w lid, drain valve ...	Julabo SE-6 SE-6 Heating circulator +20...+300 deg C; 3 kW heater; 6L SS tank w lid, drain ...	Julabo HL-4 Heating circulator 20... 250 deg C; 1 kW heater; 4L SS tank w lid, drain valve ...	Julabo 9312504.33 Heating circulator +20...+250 deg C; 2 kW heater; 4L SS tank w lid, drai ...	Julabo SE-12 SE-12 Heating circulator +20...+300 deg C; 3 kW heater; 12L SS tank w lid, dr ...	Julabo 9212504.33 HE-4 Heating circulator +20...+250 deg C; 2 kW heater; 4L SS tank w lid, ...	Julabo SE-26 SE-26 Heating circulator +20...+300 deg C; 3 kW heater; 26L SS tank w lid, dr ...	Julabo SL-6 SL-6 Heating Circulator, +20...+300 deg C, 3 kW Heater, 6L SS Tank /w Lid, Dra ...	Julabo SL-12 SL-12 Heating Circulator, +20...+300 deg C, 3 kW Heater, 12L SS Tank with Lid ...	Julabo SL-26 SL-26 Heating Circulator, +20...+300 deg C, 3 kW Heater, 26L SS Tank with Lid ...	Julabo 9252506.33 SE-6 Heating circulator +20...+300 deg C; 3 kW heater; 6L SS tank w lid, ...
Price
In Stock
Heating Capacity (Baths)	2000 Watts	3000 Watts	1000 Watts	2000 Watts	3000 Watts	2000 Watts	3000 Watts	3000 Watts	3000 Watts	3000 Watts	3 kW (3000 Watts)
Voltage (Life Science)	100-120 VAC Only	208-240 VAC Only	100-120 VAC Only		208-240 VAC Only	208-240 VAC Only	208-240 VAC Only	208-240 VAC Only	208-240 VAC Only	208-240 VAC Only	208-240 VAC Only
Type (Chillers/Baths)	Heating Circulator	Heating Circulator	Heating Circulator	Heating Circulator	Heating Circulator	Heating Circulator	Heating Circulator	Heating Circulator	Heating Circulator	Heating Circulator	Heating Circulator
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Julabo HE-4 - Heating Circulator

Early warning system for low liquid level (DBGM 203 06 059.8)
Adjustable high temperature cut-out, visible via display
RS232 interface for online communication
Integrated programmer for 10 program steps

JULABO Heating Circulators with stainless steel bath tanks are mainly used for internal and external temperature tasks. The new range of these models now have increased capacities, allowing for temperature application of larger external systems, as well as open systems. Simultaneous temperature applications of smaller objects can also be carried out directly in the internal bath of the circulator. Models from the TopTech and HighTech Series’ are available with different bath sizes and features.

Accessories for these units include test tube racks, bath covers etc. An integrated cooling coil is provided for temperature applications at near ambient or just below.

Other characteristics

For temperature applications near or below ambient temperature: use a cooling coil or JULABO immersion cooler. Low tap water consumption using the MVS controller and solenoid valve (accessories).

Connections

1. External Pt100 sensor
2. RS232 / RS485
3. Solenoid Valve
4. Electronic module (option)
5. Connections for pump

A. Alarm output
B. Standby input
C. Analog interface with ouput and two inputs for programming, flow sensor or temperature recorder scalable (current/voltage)

General Specifications
Working temperature range (°C):	+20 ... +250
Temperature stability (°C):	±0.01
Setting / display resolution:	0.01 °C
Integrated programmer:	1x10 steps
Temperature Display:	VFD
Heating capacity (kW):	2
Pump capacity flow rate (l/min):	22-26
Pump capacity flow pressure (bar):	0.4-0.7
Pump capacity flow suction (bar):	0.2-0.4
Bath opening / bath depth (W x L / D cm):	13 x 15 / 15
Pump connections:	M16x1
Barbed fittings diameter (inner dia. / mm):	8/12
Filling volume (liters):	4.5
External Pt100 sensor connection:	Integrated
Digital interfaces:	RS232 Optional Profibus
Ambient temperature:	5...40 °C
Dimensions W x L x H (cm):	21 x 42 x 40
Weight (kg):	11
Classification according to DIN12876-1:	Classification III (FL)
Description:	Built-in cooling coil for tap water connection for temperature applications below or near ambient temperatures are integrated.
Cooling coil:	integrated
Bath tank:	Stainless steel

Water Baths Recirculating Heating Chillers Coolers
Heating Capacity (Baths)	2000 Watts
Voltage (Life Science)	100-120 VAC Only Voltage (Life Science) 50-60 Hz
Type (Chillers/Baths)	Heating Circulator
Special Features (Chillers/Baths)	Advanced Programming (profile/recipe), External Temperature Probe Available, Pump Included, Temperature Controller
Max Temp (Chillers/Baths)	250 C
Min Temp (Chillers/Baths)	20 C
Reservoir Capacity (Baths)	4.5 L
Test Equipment General Attributes
Unique Features	An integrated cooling coil is provided for temperature applications at near ambient or just below
Interfaces I/O	RS-232
Product Weight	11 KILOS (24.25 LBS)
HTS/Schedule B Number	8419.19.0060
ECCN Number	EAR99
Country of Origin	Germany
