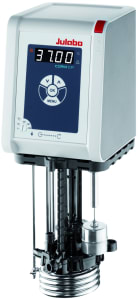

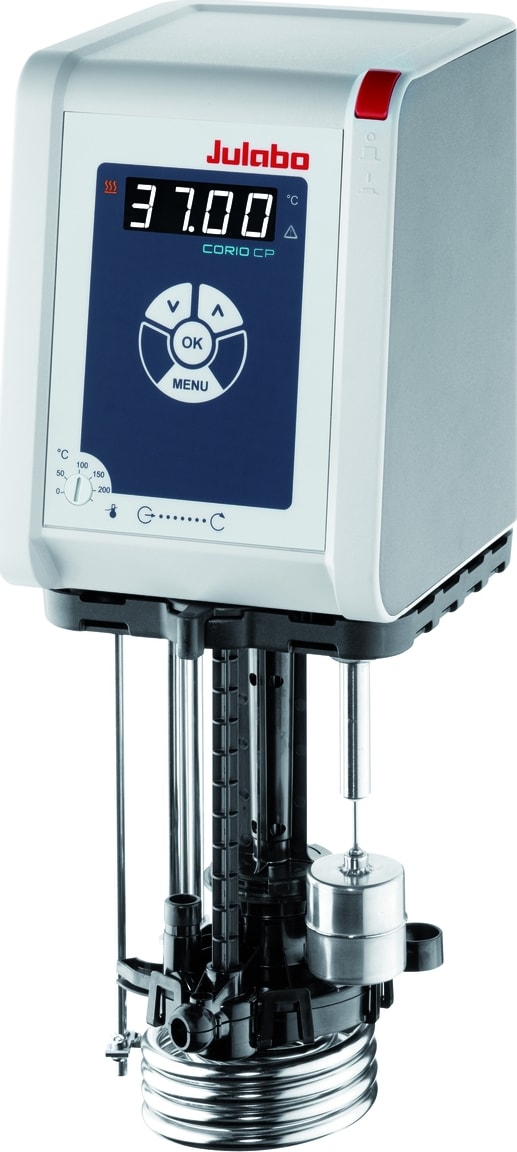

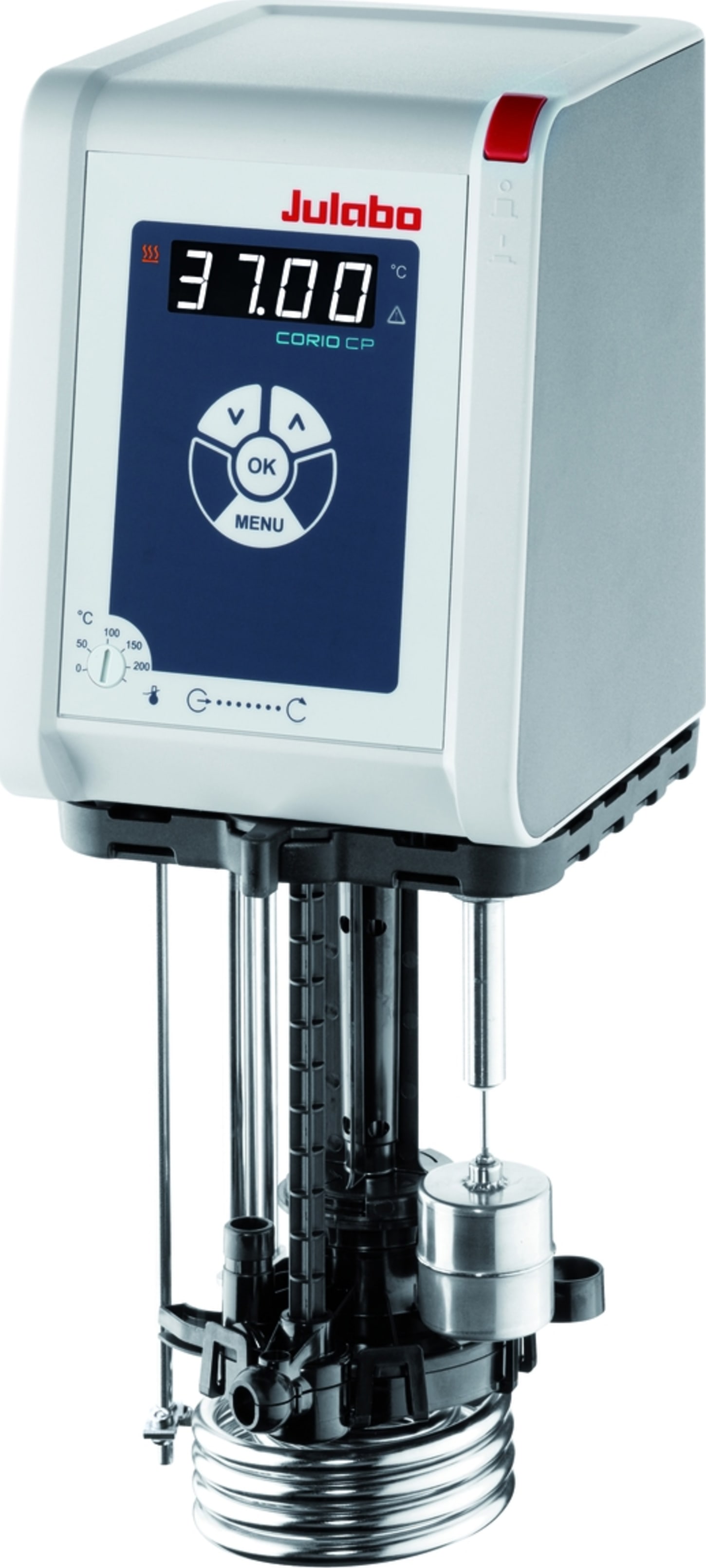

JULABO immersion circulators for controlling temperature in any bath tank up to 50 liters. These units are equipped with a bath attachment clamp for wall thicknesses up to 26 mm. Alternatively, the circulator may be fastened to a laboratory stand. The clamp makes it easy to install the circulator onto an existing bath tank. Parts that are immersed in bath liquid are constructed of high quality stainless steel or synthetic material. Common applications include controlling the temperature of samples, temperature testing of food or luxury articles, materials testing, and evaluation, adjustment, and calibration or thermometers and thermal switches.

In addition to the advantages of the CORIO C Circulator, the CORIO CD and CP Immersion Circulator can be equipped with an optional pump set for temperature control of external applications.

100% Checked.
100% testing. 100% quality. Each CORIO undergoes thorough quality testing before leaving the factory.

ATC.
Absolute Temperature Calibration, 1-point calibration (CD).

Brilliant.
Bright display with strong illumination can be viewed easily from a long distance.

Connection. Easy.
Inclined pump connections (M16x1) facilitate the connection of applications. Each unit includes 2 barbed fittings of 8/12 mm diameter each.

Connectivity.
Remote control made easy. CORIO CP circulators feature a USB connection and RS232 interface.

Early warning system for low liquid level.
Maximum safety for your application. Optical and audible alarm allows user to refill bath fluid in time.

Front

Rear

Main switch (Device switched on / off)
Four-digit temperature display LED, menu display
Control indicator - alarm
Edit keys for navigating in the operating dialog
OK key
1. Switch the temperature control on/off.
2. Store value / parameter.
3. Alarms, confirm signal
Menu key for navigating in the operating dialog
Pump switchover, Delivery external and internal
Adjustable excess temperature safety device
Control indicator - cooling
Control indicator - heating

USB host interface (type A)
RS232 interface
Mains connection: Integrated connector for voltage supply (mains cable included as accessory)
Fuses: Miniature circuit-breaker
CAN plug for connecting to the refrigeration machine.
USB device interface (type B) for data transfer to the PC, for example for control tasks using the EasyTEMP software.
Pump connection: Return, IN M16x1, external
Pump connection: Supply, OUT M16x1, external

Model series	CORIO
Category	Heating Immersion Circulators
Working temperature range (°C)	+20 ... +200
Temperature stability (°C)	±0.02
Setting / display resolution	0.01 – 0.1 °C
Temperature Display	LED
Heating capacity (kW)	2
Pump capacity flow rate (l/min)	8 ... 27
Pump capacity flow pressure (bar)	0.1 ... 0.7
Viscosity max. (cSt)	50
Ambient temperature	5...40 °C
Dimensions W x L x H (cm)	13.2 x 16 x 36.2
Weight (kg)	2.5
Cooling coil	optional
Usable immersion depth (cm)	16

Water Baths Recirculating Heating Chillers Coolers
Type (Chillers/Baths)	Immersion Circulator (Thermoregulator)
Max Temp (Chillers/Baths)	200 C
Min Temp (Chillers/Baths)	20 C
Test Equipment General Attributes
Product Weight	5.5 LBS
Product Height	14 IN
Product Length	6.3 IN
Product Width	5.2 IN
