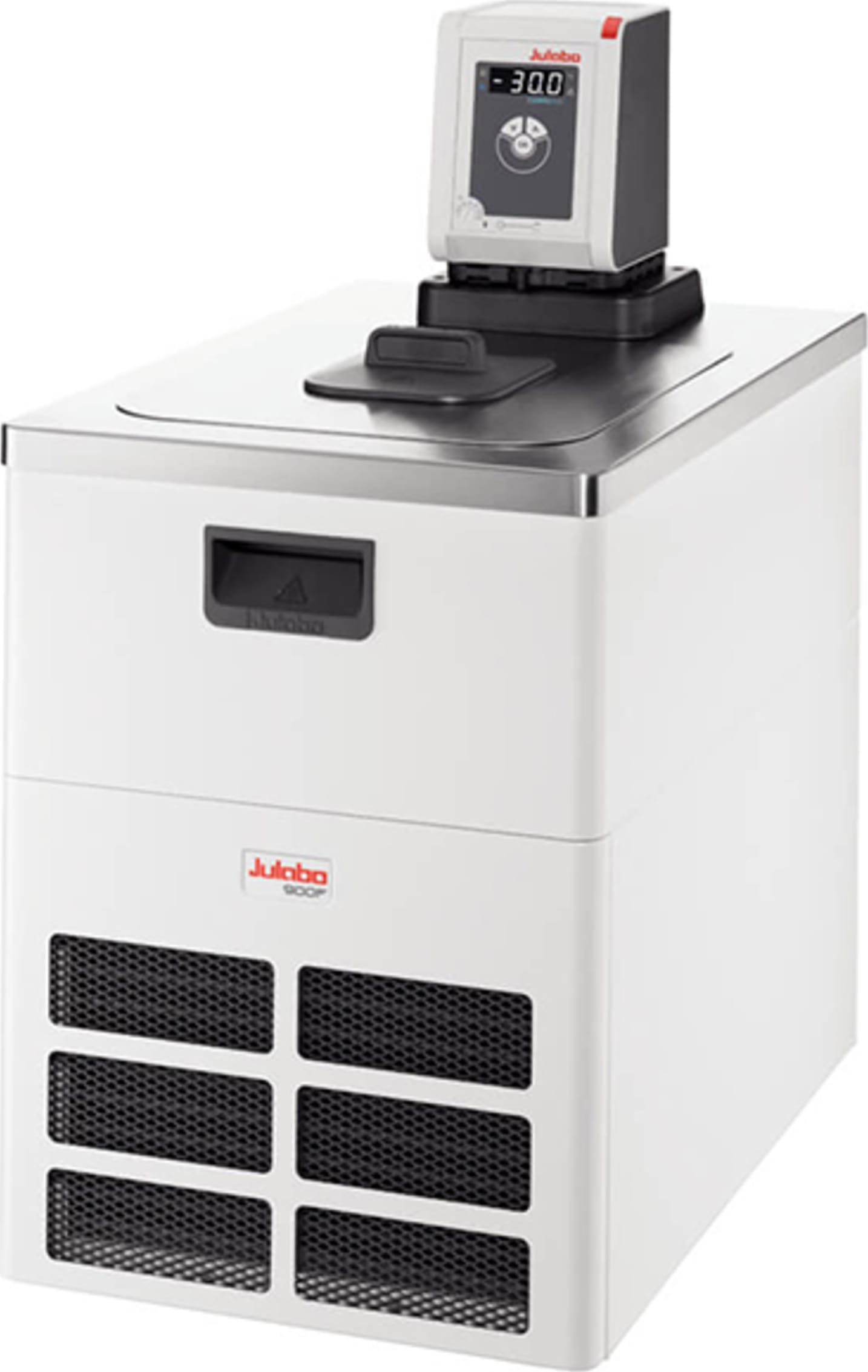

Julabo CD-900F - Refrigerated-Heating Circulator

Name: Julabo CD-900F - Refrigerated-Heating Circulator
Brand: Julabo
SKU: JulaboCD-900F
Price: 7987.64 USD
Availability: InStock

0 reviews | Catalog: CD-900F | Model: Julabo CD-900F

Compare

Refrigerated/heating circulator -40...+150 deg C; 900W cooling at 20 deg C; 1 kW heater 115V/60Hz

Cannot Ship Air

Refrigerated/heating circulator -40 to +150 deg C; 900W cooling at 20 deg C; 1 kW heater
Models for internal and external applications
Bright, white, easy to read display
Very quiet
Easy pump change-over (internal and external circulation)
External pump connections (M16x1)

View Product Details

List Price: $9,414.00

In Stock:

Recommended for you

Julabo CD-900F Specifications
Order No.	9012706
Model series	CORIO
Category	Refrigerated - Heating Circulators
Working temperature range (°C)	-40 ... +150
Temperature control	PID
Temperature stability (°C)	±0.03
Setting / display resolution	0.1 °C
Temperature display	LED
Heating capacity (kW)	1
Cooling capacity (Medium: JULABO Thermal \| Ethanol)	°C 20 0 -10 -20 -30 -40 kW 0.9 0.5 0.35 0.2 0.07 0.01
Pump capacity flow rate (l/min)	15
Pump capacity flow pressure (psi)	4.8
Bath opening / bath depth (W x L / D inch)	10.2 x 13.8 / 7.9
Pump connections	M16x1
Barbed fittings diameter (inner dia. / mm)	8 / 12
Filling volume liters	21 ... 30
Refrigerant	R452A
Ambient Temperature	5...40 °C
Dimensions W x L x H (inch)	15.4 x 24.4 x 29.5
Weight (LBS)	114.6
Included with each unit	2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
Bath tank	Stainless steel
Bath cover	integrated
Cooling of compressor	Air
Available voltage versions	230 V / 50 Hz 208 V - 230 V / 60 Hz 115 V / 60 Hz 100 V / 50-60 Hz

Water Baths Recirculating Heating Chillers Coolers
Cooling Capacity (Baths)	0.01 kW
Heating Capacity (Baths)	1000 Watts
Type (Chillers/Baths)	Refrigerated and Heating Circulator
Max Temp (Chillers/Baths)	150 C
Min Temp (Chillers/Baths)	-40 C
Reservoir Capacity (Baths)	30 L
Test Equipment General Attributes
Interfaces I/O	USB
Product Weight	114.6 LBS
Product Height	29.5 IN
Product Length	24.4 IN
Product Width	15.4 IN
Shipping Weight	280.00 LBS
HTS/Schedule B Number	8419.19.0060
ECCN Number	EAR99
Country of Origin	Germany
