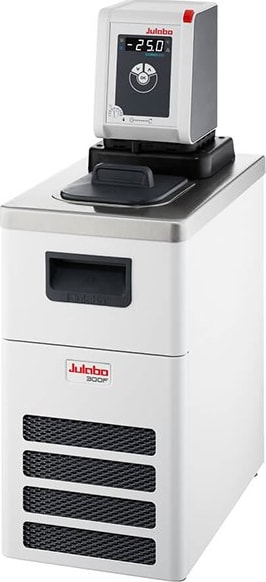

Julabo CD-300F - Refrigerated-Heating Circulator

Name: Julabo CD-300F - Refrigerated-Heating Circulator
Brand: Julabo
SKU: JulaboCD-300F
Price: 5694.18 USD
Availability: InStock

0 reviews | Catalog: CD-300F | Model: Julabo CD-300F

Compare

Refrigerated/heating circulator -25...+150 deg C; 310W cooling at 20 deg C; 1 kW heater 115V/60Hz

Cannot Ship Air

Refrigerated/heating circulator -25 to +150 deg C; 310W cooling at 20 deg C; 1 kW heater
Models for internal and external applications
Bright, white, easy to read display
Very quiet
Easy pump change-over (internal and external circulation)
External pump connections (M16x1)

View Product Details

List Price: $6,711.00

Your Price: $5,694.18

In Stock:



Product	Julabo CD-300F Refrigerated/heating circulator -25...+150 deg C; 310W cooling at 20 deg C; ...	Julabo CD-200F Refrigerated/heating circulator -20...+150 deg C; 220W cooling at 20 deg C; ...	Julabo 9012708.13 Refrigerated/heating circulator -38...+100 deg C; 1kW cooling at 20 deg ...	Julabo CD-201F Low profile Refrigerated/heating circulator -20...+150 deg C; 220W cooling ...	Julabo CD-600F Refrigerated/heating circulator -35... 150 deg C; 600W cooling at 20 deg C; ...	Julabo CD-601F Refrigerated/heating circulator -40...+150 deg C; 600W cooling at 20 deg C; ...	Julabo CD-900F Refrigerated/heating circulator -40...+150 deg C; 900W cooling at 20 deg C; ...	Julabo CD-1000F Refrigerated/heating circulator -40...+150 deg C; 1kW cooling at 20 deg C; ...
Price
In Stock
Cooling Capacity (Baths)	0.11 kW	0.06 kW	0.13 kW	0.06 kW	0.22 kW	0.01 kW	0.01 kW	0.1 kW
Heating Capacity (Baths)	1000 Watts	1000 Watts	1500 Watts	1000 Watts	1000 Watts	1000 Watts	1000 Watts	1000 Watts
Type (Chillers/Baths)	Refrigerated and Heating Circulator	Refrigerated and Heating Circulator	Refrigerated and Heating Circulator	Refrigerated and Heating Circulator	Refrigerated and Heating Circulator	Refrigerated and Heating Circulator	Refrigerated and Heating Circulator	Refrigerated and Heating Circulator
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Julabo CD-300F Specifications
Order No.	9012703
Model series	CORIO
Category	Refrigerated - Heating Circulators
Working temperature range (°C)	-20 ... +150
Temperature control	PID
Temperature stability (°C)	±0.03
Setting / display resolution	0.1 °C
Temperature display	LED
Heating capacity (kW)	1
Cooling capacity (Medium: JULABO Thermal \| Ethanol)	°C 20 0 -20 kW 0.31 0.28 0.11
Pump capacity flow rate (l/min)	15
Pump capacity flow pressure (psi)	5.08
Bath opening / bath depth (W x L / D inch)	5.1 x 5.9 / 5.9
Pump connections	M16x1
Barbed fittings diameter (inner dia. / mm)	8 / 12
Filling volume liters	3 ... 4
Refrigerant	R134a
Ambient Temperature	5...40 °C
Dimensions W x L x H (inch)	9.1 x 15.4 x 25,6
Weight (LBS)	61.8
Included with each unit	2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
Bath tank	Stainless steel
Bath cover	integrated
Cooling of compressor	Air
Available voltage versions	230 V / 50 Hz 208 V - 230 V / 60 Hz 115 V / 60 Hz 100 V / 50-60 Hz

Water Baths Recirculating Heating Chillers Coolers
Cooling Capacity (Baths)	0.11 kW
Heating Capacity (Baths)	1000 Watts
Type (Chillers/Baths)	Refrigerated and Heating Circulator
Max Temp (Chillers/Baths)	150 C
Min Temp (Chillers/Baths)	-25 C
Reservoir Capacity (Baths)	4 L
Test Equipment General Attributes
Interfaces I/O	USB
Product Weight	61.8 LBS
Product Height	26 IN
Product Length	16.6 IN
Product Width	9.5 IN
Shipping Weight	170.80 LBS
HTS/Schedule B Number	8419.19.0060
ECCN Number	EAR99
Country of Origin	Germany
