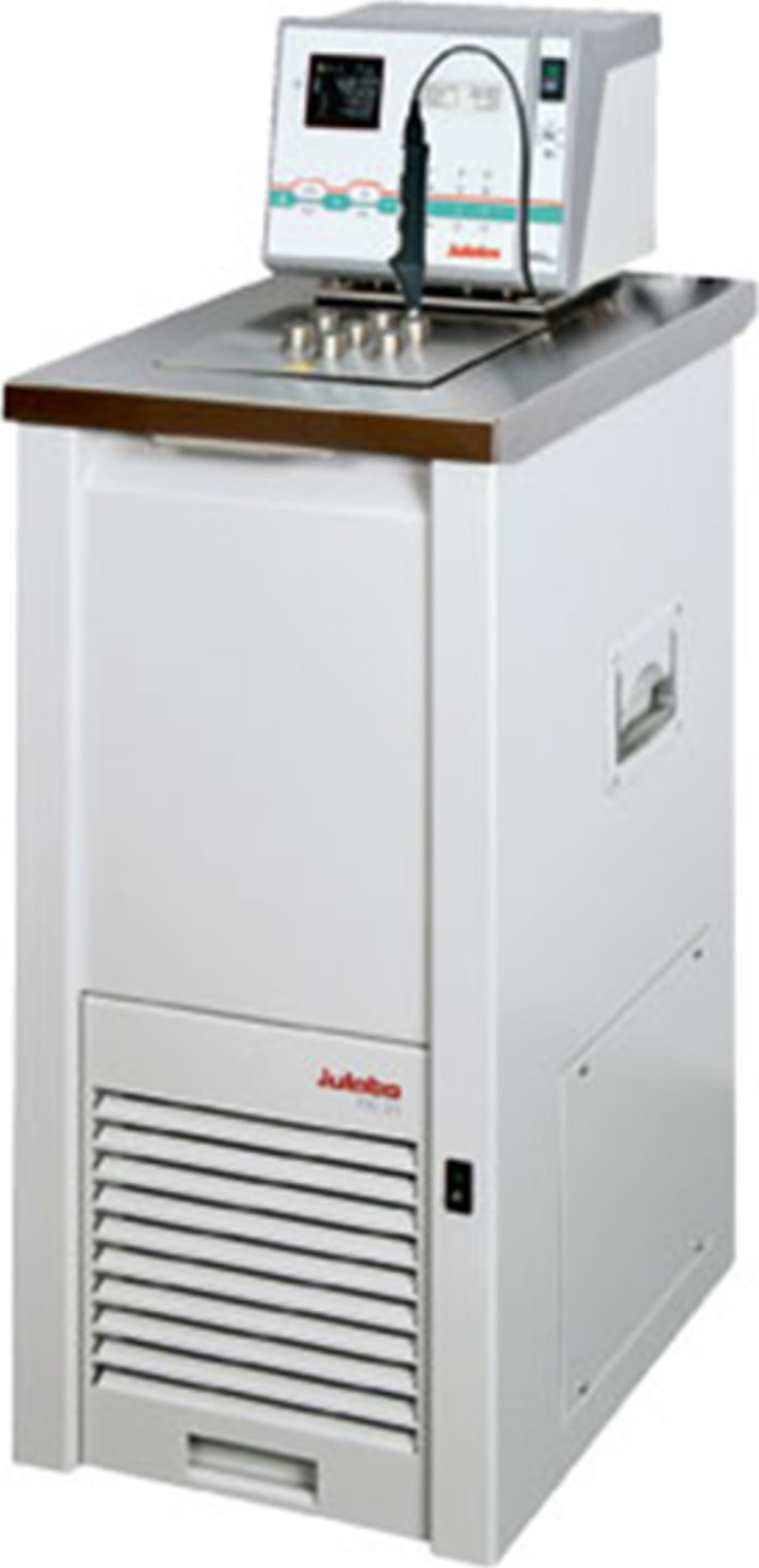

Julabo 9352627.02 - FK30-SL Calibration Bath, 115 VAC 60 Hz

Name: Julabo 9352627.02 - FK30-SL Calibration Bath, 115 VAC 60 Hz
Brand: Julabo
SKU: Julabo9352627.02
Price: 14400.48 USD
Availability: InStock

0 reviews | Catalog: 9352627.02 | Model: Julabo 9352627.02

Compare

FK30-SL Calibration bath, -30 to +200 deg C; highest stability +/-0.005 deg C (+/-0.02 deg C at 200 deg C); Uniformity better than +/-0.01 deg C; depth 17 cm; lid w 7 openings; 115 VAC 60 Hz

Cannot Ship Air

9352627.02 Calibration Bath
VFD COMFORT DISPLAY
LCD DIALOG DISPLAY backlit for convenient interactive operation
Keypad for setpoints, warning/safety values and menu functions
TCF Temperature Control Features to optimize the control behavior
Pt100 External sensor connection for measurement and control

View Product Details

List Price: $16,972.00

Your Price: $14,400.48

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Julabo 9352627.02 FK30-SL Calibration bath, -30 to +200 deg C; highest stability +/-0.005 ...	Julabo 9352508.33 SL-8K Calibration bath, 50...300 deg C; highest stability 0.005 deg C (0 ...	Julabo 9352514.33 SL-14K Calibration bath, 50...300 deg C; highest stability 0.005 deg C ( ...	Julabo 9352628.02 FK31-SL Calibration bath, 50...300 deg C; highest stability +/-0.005 deg ...	Julabo SL-14K SL-14K 230V/50-60Hz
Price
In Stock
Type	Liquid	Liquid	Liquid	Liquid	Dry, Liquid
Min Temp (Calibration Baths)	50 C	50 C	50 C	50 C	50 C
Max Temp (Calibration Baths)	300 C	300 C	300 C	300 C	300 C
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Julabo 9352627.02 - FK30-SL Calibration Bath, 115 VAC 60 Hz

The calibration baths in this category feature an integrated refrigeration unit and are suitable for calibration applications to -30 °C. The bath cover with openings and Viton® sleeves is already included in delivery for all models.

Julabo 9352627.02 Specifications
Order No.	9352628
Model series	HighTech
Category	Calibration Baths
Working temperature range (°C)	-30 ... +200
Temperature stability (°C)	±0.005
Setting / display resolution	0.01
Integrated programmer	6x60 steps
Temperature Display	VFD , LCD
Heating capacity (kW)	2
Cooling capacity (Medium: JULABO Thermal \| Ethanol)	°C 20 0 -20 kW 0.46 0.34 0.15
Pump capacity flow rate (l/min)	22-26
Pump capacity flow pressure (bar)	0.4-0.7
Pump capacity flow suction (bar)	0.2-0.4
Bath opening / bath depth (W x L / D cm)	Ø = 12 / 31 cm
Filling volume (liters)	24
Refrigerant	R134a
External Pt100 sensor connection	integrated
Digital interfaces	RS232 Optional Profibus
Ambient temperature	5...40 °C
Dimensions W x L x H (cm)	32 x 45 x 91
Weight (kg)	51
Classification according to DIN12876-1	Classification III (FL)
Included with each unit	Including bath cover with 7 openings.
Bath cover	integrated
Cooling of compressor	Air
Available voltage versions	230 V / 50 Hz 115 V / 60 Hz

Tech Specs

Water Baths Recirculating Heating Chillers Coolers
Heating Capacity (Baths)	2 kW (2000 Watts)
Voltage (Life Science)	100-120 VAC Only
Max Temp (Chillers/Baths)	200 C
Min Temp (Chillers/Baths)	-30 C
Calibration Baths
Type	Liquid
Min Temp (Calibration Baths)	50 C
Max Temp (Calibration Baths)	300 C
Accuracy (Calibration Baths)	0.005 C
Voltage (Calibration Baths)	115 VAC
Special Features (Calibration Baths)	Reference Temperature Probe
Test Equipment General Attributes
Unique Features	Optional Pt100 sensor for reference temperature measurements
Interfaces I/O	RS-232
Product Weight	51 KILOS (112.44 LBS)
Product Height	91 CM (35.83 IN)
Product Length	45 CM (17.72 IN)
Product Width	32 CM (12.60 IN)
Shipping Weight	212.00 LBS
HTS/Schedule B Number	8418.69.0180
ECCN Number	EAR99
Country of Origin	Germany
