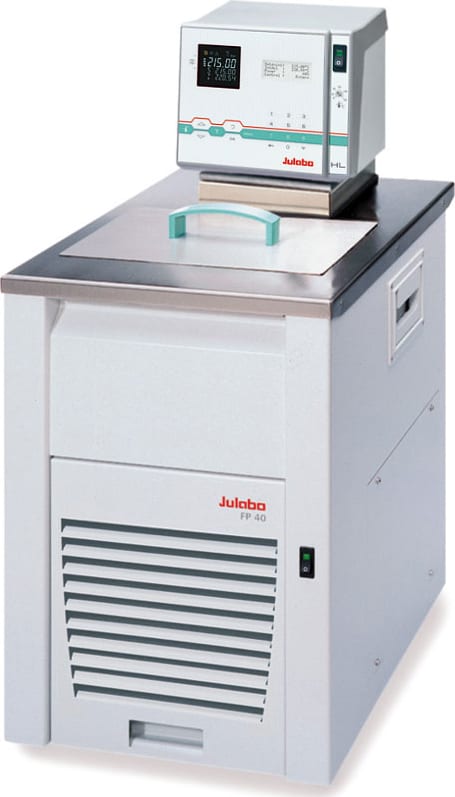

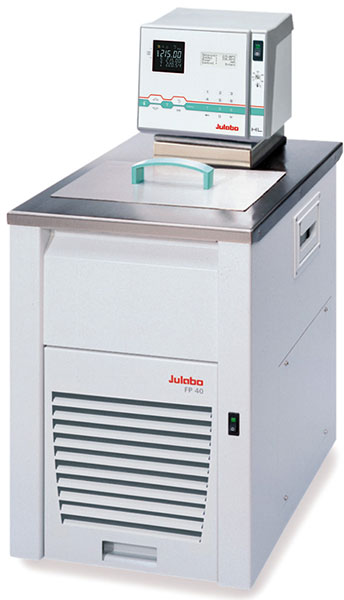

Julabo FP40-HL Refrigerated/Heating Circulator

Julabo FP40-HL Refrigerated/Heating Circulator ×

Refrigerated/heating circulator -40 to +200 deg C; 680W cooling at 20 deg C; 2 kW heater VFD Comfort Display Voltage 230V/60Hz Heating Capacity 2 LCD Dialog Display backlit for convenient interactive operation


Superior models for most demanding applications

Julabo Refrigerated & Heating Circulators for heating and cooling are suitable for external temperature tasks and for temperature applications directly in the bath. A model from three different series’ with different capacities can be selected. Powerful circulating pump systems and high heating and cooling capacities guarantee short heat-up and cool-down times. The inevitable dust accumulation that occurs in refrigeration systems is solved by means of an easily removed venting grill, which allows for easy cleaning. Depending on the model, the units are equipped with handles or castors for an easy transportation. All models have a drain tap on the front allowing the fluid to be drained easily. The compact assembly of each unit enables a space to be saved in the laboratory.


Characteristics

Display
	A perfect view Ample, easy to read VFD Comfort display for simultaneous display of 3 values, warning functions, high temperature cut-off, pump stages (resolution 0.01 °C)
	Additional plain text information Comfortable LCD dialog display for interactive operation with plain text display
	Pump stage and liquid level A Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT
Operation
	Comfortable and detailed Comfortable keypad with additional menu functions for pump stages, calibration, control parameters, programmer, warnings, etc.
Temperature Control
	For perfect results ‘Intelligent Cascade Control’, automatic & self optimizing adjustment of PID control parameters, temperature stability ±0.005 °C internal, <±0.05 °C external
	Full control ‘Temperature Control Features’ for individual optimization, access to all important control parameters, additional settings for band limit, limits, Co-Speedfactor etc.
	Highest measuring accuracy ‘Absolute Temperature Calibration’ for manual compensation of a temperature
Refrigeration Technology
	Energy saving cooling Proportional cooling control for automatic adjustment of cooling power or temporary switch-off of compressor as needed to save up to 90 % energy in comparison to unregulated cooling machines
	Consistent cooling capacity Easily removable venting grid for quick and easy cleaning
	100 % Cooling capacity 'Active Cooling Control' for cooling available throughout the entire working temperature range, fast cool-down even at higher temperatures
	Condensation and ice protection A heated cover plate prevents condensation or ice build-up in the bath
	For flammable bath fluids Classification III (FL) according to DIN 12876-1
Technical Features
	Clever pump system Reliable and consistent pump capacity, electronically adjustable pump stages
	Control from the external application External Pt100 sensor connection for precise measurement and control directly in the external application
	Serial connection RS232 interface for PC connection, e.g. for data communication and recording of measured values
	Optimal program control For the execution of time and temperature dependant profiles, 6 temperature profiles with 60 steps max., with real time clock
	Connection of additional equipment Stakei connections for solenoid valve, HSP booster pump and HST booster heater
Warning & Safety Functions
	Early warning system for low liquid level Maximum safety for applications, optical and audible alarm, allows user to refill bath fluid before the unit shuts down
	Early warning system for high/low temperature limits Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function
	Enhanced protective functions Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and precise adjustments
