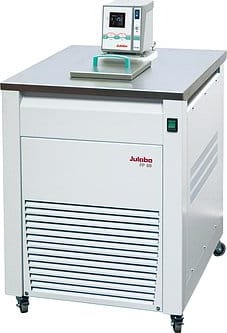

Julabo FP89-ME Refrigerated-Heating Circulator Ultra-Low

Name: Julabo FP89-ME Refrigerated-Heating Circulator Ultra-Low
Brand: Julabo
SKU: Julabo9162689.13
Price: 24038.79 USD
Availability: InStock

0 reviews | Catalog: 9162689.13 | Model: Julabo 9162689.13

Julabo FP89-ME Ultra-Low Refrigerated-Heating Circulator

Compare

FP89-ME Refrigerated/heating circulator -90...+100 deg C; 1kW cooling at 20 deg C; 1.3 kW heater 230V/60Hz

Cannot Ship Air

FP89-ME Ultra-Low Refrigerated-Heating Circulator
Voltage 230V/60Hz. Requires 2 single phase power outlets
VFD COMFORT DISPLAY
Keypad for setpoints, warning/safety values and menu functions
PID3 cascade temperature control
ATC3 3-Point-Calibration
Active Cooling Control
Pt100 External sensor connection for measurement and control
SMART PUMP, electronically adjustable pump stages
Early warning system for low liquid level (DBGM 203 06 059.8)
Adjustable high temperature cut-out, visible via display
RS232 interface for online communication
Integrated programmer for 10 program steps

View Product Details

List Price: $24,790.00

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

Julabo FP89-ME Ultra-Low Refrigerated-Heating Circulator

FP89-ME Ultra-Low Refrigerated-Heating Circulator
Keypad for setpoints, warning/safety values and menu functions
Pt100 External sensor connection for measurement and control
SMART PUMP, electronically adjustable pump stages
Adjustable high temperature cut-out, visible via display
Integrated programmer for 10 program steps

FP89-ME Ultra-Low Refrigerated-Heating Circulator

Upper middle class with ext. Pt100 sensor connection

Ultra-low Refrigerated Circulator with 2-stage cascade-cooling

JULABO Ultra-Low Refrigerated Circulators for heating and cooling are suitable for external temperature tasks. Powerful circulating pump systems and high heating and cooling capacities guarantee short heat-up and cool-down times. ACC ‘Active Cooling Control' provides active cooling control across the whole temperature range. An energy saving feature with only minor loss of heat is provided by the proportional cooling capacity control in the 'FP' refrigeration units. The inevitable dust accumulation that occurs in refrigeration systems is solved by means of an easily removed venting grill, which allows for easy cleaning. The units are equipped with handles or castors for an easy transportation. All models have a drain tap on the front allowing the fluid to be drained easily. Additionally the instruments are equipped with an improved insulation to help avoid ice-formation, and have a visual liquid level display.

Characteristics

Display	A perfect view Ample, easy to read VFD Comfort display for simultaneous display of 3 values, warning functions, high temperature cut-off, pump stages (resolution 0.01 °C)
	Pump stage and liquid level Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT
Operation	Comfortable and detailed Comfortable keypad with additional menu functions for pump stages, calibration, control parameters, programmer, warnings, etc.
Temperature Control	For higher demands PID Temperature control with drift compensation and adjustable parameters, improved temperature stability for external applications, temperature stability ±0.01 °C internal, <±0.1 °C external
	Highest measuring accuracy 'Absolute Temperature Calibration' for manual compensation of a temperature difference, 3-point calibration
Refrigeration Technology	Consistent cooling capacity Easily removable venting grid for quick and easy cleaning
	100 % Cooling capacity 'Active Cooling Control' for cooling available throughout the entire working temperature range, fast cool-down even at higher temperatures
Technical Features	Clever pump system Reliable and consistent pump capacity, electronically adjustable pump stages
	Control from the external application External Pt100 sensor connection for precise measurement and control directly in the external application
	Serial connection RS232 interface for PC connection, e.g. for data communication and recording of measured values
	Easy program control Integrated programmer for the execution of time and temperature dependant profiles, 1 temperature profile with 10 steps max., with real time clock
Warning & Safety Functions	Early warning system for low liquid level Maximum safety for applications, optical and audible alarm, allows user to refill bath fluid before the unit shuts down
	Early warning system for high/low temperature limits Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function
	Enhanced protective functions Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and precise adjustments
	For flammable bath fluids Classification III (FL) according to DIN 12876-1

Technical changes without prior notification.
Images may deviate from the original.

Circulator

1	Mains power switch, illuminated
Navigation keys
2	1. Key: >OK< Start / Stop (pump / heater ) 2. >OK< in the menu Menu item / select submenu for setting Save set value Save selected parameter A beep signals the end of setting
After the actions Start, Stop and change from VFD Display to standard display the key ok is locked for a short time. The above graph "front side" shows an example for standard display.
3	1. Key: >Return< Stop (pump / heater ) 2. >Return< in the menu one menu level down Correction function for parameters or values (prior to OK) immediately back to standard display
4	1. Key: >Up / Down Push key quickly for single steps, Keep key pressed for fast change. 2. >Up/Down< in the menu selection of menu items / parameters
Menu keys
5	Key: start the menu > warning and safety values<
6	Key: start the menu >temperature setpoints<
7	Key: display of MENU structure
10	VFD COMFORT-DISPLAY
11	Control indicators in the header
12	Control indicators in the header Temperature indication Internal or External actual value Temperature indication in °C (°F not possible on this unit)
13	Display of set pump pressure stage
14	Adjustable excess temperature protection according to IEC 61010 - 2-010
15	Socket: control cable of J ULABO refrigerated circulator or output for alarm messages
16	Interface RS232: remote control via personal computer
17	Socket for external measurement and control sensor or external setpoint programming
18	Mains circuit breakers (resettable) 15 A
20	Mains power cable with plug

Julabo FP89-ME Specifications
Order No.	9162689
Model series	TopTech
Category	Ultra-Low Refrigerated-Heating Circulators
Working temperature range (°C)	-90 ... +100
Temperature stability (°C)	±0.02
Setting / display resolution	0.01 °C
Integrated programmer	1x10 steps
Temperature Display	VFD
Heating capacity (kW)	1.3
Cooling capacity (Medium: JULABO Thermal \| Ethanol)	°C 20 0 -20 -40 -60 -80 kW 1 0.92 0.88 0.75 0.58 0.2
Pump capacity flow rate (l/min)	11-16
Pump capacity flow pressure (bar)	3.3-6.5
Bath opening / bath depth (W x L / D cm)	5.1 x 5.9 / 6.3
Pump connections	M16x1
Barbed fittings diameter (inner dia. / mm)	8 / 10
Filling volume (liters)	8
Refrigerant	R404A, R508B
External Pt100 sensor connection	integrated
Digital interfaces	RS232 Optional Profibus
Ambient temperature	5...40 °C
Dimensions W x L x H (cm)	21.7 x 23.6 x 35.4
Weight (lbs)	293
Classification according to DIN12876-1	Classification III (FL)
Included with each unit	2 barbed fittings suitable for tubing 8 and 10 mm inner dia. (pump connections M10x1 female)
Cooling of compressor	Air
Power requirement V / Hz / A	230/60/16
Available voltage versions	230 V / 50 Hz 230 V / 60 Hz

Tech Specs

Water Baths Recirculating Heating Chillers Coolers
Cooling Capacity (Baths)	1 kW
Heating Capacity (Baths)	1300 Watts
Voltage (Life Science)	208-240 VAC Only Voltage (Life Science) 60 Hz
Type (Chillers/Baths)	Refrigerated and Heating Circulator
Special Features (Chillers/Baths)	Advanced Programming (profile/recipe), External Temperature Probe Available, Pump Included, Temperature Controller
Max Temp (Chillers/Baths)	100 C
Min Temp (Chillers/Baths)	-90 C
Test Equipment General Attributes
Interfaces I/O	RS-232
Product Weight	293 LBS
Product Height	35.4 IN
Product Length	23.6 IN
Product Width	21.7 IN
HTS/Schedule B Number	8418.69.0180
ECCN Number	EAR99
Country of Origin	Germany
