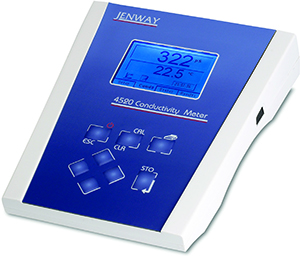

Jenway 452201 4520 Bench Conductivity/TDS Meter

Name: Jenway 452201 4520 Bench Conductivity/TDS Meter
Brand: Jenway
SKU: Jenway452201
Price: 1463.14 USD
Availability: InStock

0 reviews | Catalog: 35440-12 | Model: Jenway 452201

Jenway 4520 Bench Conductivity/TDS Meter

Compare

COND MTR 4520 W/ CELL 230VEU

230V EU, with cell
Simultaneous display of conductivity or TDS and temperature
Automatic selection of range for best resolution
Calibration by cell constant or standard solutions
Automatic standard recognition
Storage of up to 32 results
Bi-directional RS232 link to printer or PC
3 year warranty

View Product Details

List Price: $1,493.00

Your Price: $1,463.14

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non US Voltage Item

Items in This Series



Product	Jenway 452201 COND MTR 4520 W/ CELL 230VEU	Jenway 451001 COND MTR 4510 W/ CELL 230VUK	Jenway 451101 COND MTR 4510 W/ CELL 120V	Jenway 452001 COND MTR 4520 W/ CELL 230VUK	Jenway 452101 COND MTR 4520 W/ CELL 120V	Jenway 451200 COND MTR 4510 W/O CELL 230VEU	Jenway 451201 COND MTR 4510 W/ CELL 230VEU	Jenway 452000 COND MTR 4520 W/O CELL 230VUK	Jenway 452200 COND MTR 4520 W/O CELL 230VEU
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Jenway 452201 Accessories

Choose a Category

for the Jenway 452201

Jenway 037551 PH METER RS232-USB CONVERTER

Catalog: 99959-79

(0)

In Stock!

Add to Cart

Jenway 037801 9 way serial cable for connection to PC

Catalog: 99956-04

(0)

In Stock!

Add to Cart

Jenway 037702 Roll of paper for thermal printer

Catalog: 99959-81

(0)

In Stock!

Add to Cart

Jenway 037701 THERMAL PRINTER WITH IDRA

Catalog: 99959-80

(0)

In Stock!

Add to Cart

Jenway 050501 DATAWAY PC SOFTWARE F/JENWAY

Catalog: 83061-23

(0)

In Stock!

Add to Cart

Jenway 027013 CONDUCTIVITY PROBE WITH ATC

Catalog: 99968-36

(0)

In Stock!

Add to Cart

Jenway 027113 CONDUCTIVITY CELL WITH ATC

Catalog: 99959-64

(0)

In Stock!

Add to Cart

Jenway 027211 CONDUCTIVITY CELL W/ATC K=0.1

Catalog: 99959-66

(0)

In Stock!

Add to Cart

Jenway 027212 CONDUCTIVITY CELL EPOXY BODY

Catalog: 99959-67

(0)

In Stock!

Add to Cart

Jenway 027213 EPOXY CONDUCTIVITY CELL K=10

Catalog: 99959-68

(0)

In Stock!

Add to Cart

Jenway 027900 PURE WATER CONDUCTIVITY PROBE

Catalog: 99959-74

(0)

In Stock!

Add to Cart

Jenways 4520 Bench Conductivity/TDS Meter

Conductivity, resistivity, TDS and salinity modes

Special pure water mode for ultra low conductivity measurements

Storage of 500 results with built in data logger

Infra-red data link (IrDA) for connection to printer and RS232 link to connect to printer or PC via DataWay software

Bench Conductivity/TDS Meter

4520 conductivity meter supplied with glass conductivity probe with ATC (K=1) (027 013), electrode holder, 230v.

The 4520 is a high specification laboratory conductivity /resistivity/TDS/salinity and temperature meter that offers additional accuracy with 1, 2 or 3 point conductivity calibration across the wide measurement range of 0 to 19.99S. The dedicated "pure water" mode ensures the optimum accuracy for this difficult application.

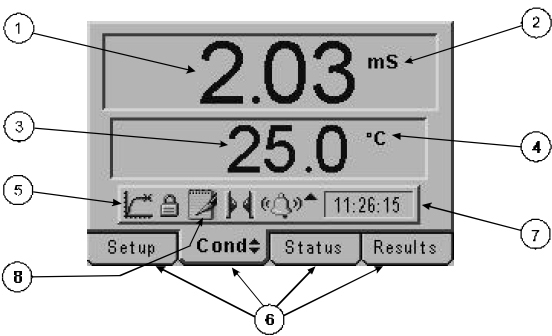

Display

Primary display – 4½ digit. Provides direct readout in Conductivity and TDS of samples and standards.
Mode annunciators – shows selected measurement mode; Conductivity or TDS.
Secondary display – 3½ digit display. Provides direct readout of automatic or manual temperature.
Mode annunciators – indicates temperature in °C or °F and whether the measurements are manually temperature compensated (MAN symbol).
Endpoint symbol – this symbol is displayed when an endpoint has been detected.
Mode tags – Each mode tag is highlighted when selected; SETUP, MODE, STATUS or RESULTS. If a double headed arrow symbol is present this indicates that the mode can be changed to an alternative option (pH/mV).
Real time clock - will display either date or time.
The following symbols will appear along the display:

Padlock - Set up parameters security locked
Notepad symbol - data logging to internal memory
IrDA status
Alarm indication - an Up arrow refers to Hi alarm / a Down arrow refers to Low alarm

Keypad

ESC used to switch the instrument on and to place into standby mode (only if power supply lead remains connected to the instrument). Also used to escape/exit a mode.
CAL / CLR used to select and perform a calibration sequence. This key is also used to clear readings from Memory. Used to select Abs/Rel mV in mV mode.
Print key used to initiate a print.
Up Arrow used for adjustment during set up, to scroll results and to toggle between mV and pH modes.
Down Arrow used for adjustment during set up, to scroll results and to toggle between mV and pH modes.
Left Arrow used for adjustment during set up and to move between mode tags.
Right Arrow used for adjustment during set up and to move between mode tags.
STO used to accept an entered value in set-up mode and to instigate a stored reading. This key can also be used as a CAL key during calibration.

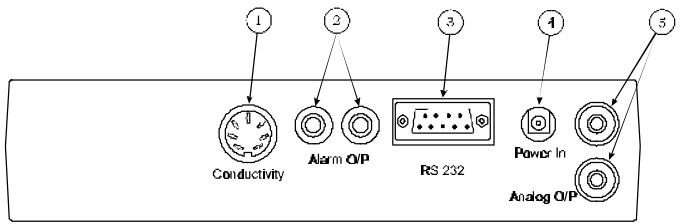

Rear panel layout

ESC used to switch the instrument on and to place into standby mode (only if power supply lead remains connected to the instrument). Also used to escape/exit a mode.
CAL / CLR used to select and perform a calibration sequence. This key is also used to clear readings from Memory. Used to select Abs/Rel mV in mV mode.
Print key used to initiate a print.
Up Arrow used for adjustment during set up, to scroll results and to toggle between mV and pH modes.
Down Arrow used for adjustment during set up, to scroll results and to toggle between mV and pH modes.
Left Arrow used for adjustment during set up and to move between mode tags.
Right Arrow used for adjustment during set up and to move between mode tags.
STO used to accept an entered value in set-up mode and to instigate a stored reading. This key can also be used as a CAL key during calibration..

Model	4510	4520
Conductivity range	6 auto–selected from 0 to 1999mS*	6 auto–selected from 0 to 1999mS*
Conductivity resolution	0.01µS to 1mS	0.01µS to 0.01S
Conductivity accuracy	±0.5% ±2 digits	±0.5% ±2 digits
Automatic standard recognition	10µS, 84µS, 1413µS, 12.88mS	10µS, 84µS, 1413µS, 12.88mS
Cell constant	0.010 to 19.999	0.010 to 19.999
TDS range	6 auto-selected from 0 –1999g/l*	6 auto selected ranges from 0 –1999g/l*
TDS resolution	0.01mg/l to 1g/l	0.01mg/l to 1g/l
TDS accuracy	±0.5% ±2 digits	±0.5% ±2 digits
EC Ratio	0.50 to 0.80	0.50 to 0.80
Resistivity range	NA	0–20Mohm
Resistivity resolution	NA	0.01Mohm
Resistivity accuracy	NA	±0.5% ±2 digits
Salinity range	NA	0–99.9g/l
Salinity resolution	NA	0.1g/l
Salinity accuracy	NA	0–35 ±1g/l, 35–99.9 ±3g/l
Temperature range	–10 to 105°C	–10 to 105°C
Temperature resolution	0.1°C	0.1°C
Temperature accuracy	±0.5°C	±0.5°C
ATC and manual	0 to 100°C	0 to 100°C
Temperature coefficient	0.00% to 4.00%/°C	0.00% to 4.00%/°C
Reference temperature	18, 20 or 25°C	18, 20 or 25°C
GLP	NA	Calibration reminder interval, alarm outputs and security code protected data
Outputs	Analogue and RS232	Analogue, RS232 and IrDA interface
Connector	7-pin DIN	7-pin DIN
Power	9V AC ±10% @ 50/60Hz	9V AC ±10% @ 50/60Hz
Size (l x w x d)	210 x 250 x 55mm	210 x 250 x 55mm
Weight	850g	850g
