Jenway 451000 4510 Bench Conductivity/TDS Meter

Name: Jenway 451000 4510 Bench Conductivity/TDS Meter
Brand: Jenway
SKU: Jenway451000
Price: 493.68 USD
Availability: InStock

0 reviews | Catalog: 35440-00 | Model: Jenway 451000

Compare

COND MTR 4510 W/O CELL 230VUK

230V UK, without electrode
Simultaneous display of conductivity or TDS and temperature
Automatic selection of range for best resolution
Calibration by cell constant or standard solutions
Automatic standard recognition
Storage of up to 32 results
Bi-directional RS232 link to printer or PC
3 year warranty

View Product Details

List Price: $503.75

In Stock:

View Payment Options

Non US Voltage Item

Recommended for you

Accessories

Choose a Category

for the Jenway 451000

Jenway 037551 PH METER RS232-USB CONVERTER

Catalog: 99959-79

(0)

In Stock!

Add to Cart

Jenway 037801 9 way serial cable for connection to PC

Catalog: 99956-04

(0)

In Stock!

Add to Cart

Jenway 037702 Roll of paper for thermal printer

Catalog: 99959-81

(0)

In Stock!

Add to Cart

Jenway 037701 THERMAL PRINTER WITH IDRA

Catalog: 99959-80

(0)

In Stock!

Add to Cart

Jenway 050501 DATAWAY PC SOFTWARE F/JENWAY

Catalog: 83061-23

(0)

In Stock!

Add to Cart

Jenway 027013 CONDUCTIVITY PROBE WITH ATC

Catalog: 99968-36

(0)

In Stock!

Add to Cart

Jenway 027113 CONDUCTIVITY CELL WITH ATC

Catalog: 99959-64

(0)

In Stock!

Add to Cart

Jenway 027211 CONDUCTIVITY CELL W/ATC K=0.1

Catalog: 99959-66

(0)

In Stock!

Add to Cart

Jenway 027212 CONDUCTIVITY CELL EPOXY BODY

Catalog: 99959-67

(0)

In Stock!

Add to Cart

Jenway 027213 EPOXY CONDUCTIVITY CELL K=10

Catalog: 99959-68

(0)

In Stock!

Add to Cart

Jenway 027900 PURE WATER CONDUCTIVITY PROBE

Catalog: 99959-74

(0)

In Stock!

Add to Cart

Jenways 4510 Bench Conductivity/TDS Meter

Automatic selection of range for best resolution

Simultaneous display of conductivity or TDS and temperature

Automatic standard recognition

Calibration by cell constant or standard solutions

Storage of up to 32 results

Bi-directional RS232 link to printer or PC

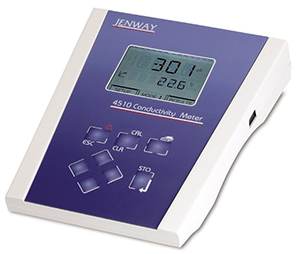

Bench Conductivity/TDS Meter

4510 conductivity meter supplied with glass conductivity probe with ATC (K= 1) (027 013), electrode holder, 120v

The 4510 is easy to use but with the flexibility to meet the broadest range of applications and for those where greater accuracy is required the 4510 has automatic conductivity standard recognition and endpoint detection. Set-up options include cell constant, temperature coefficient and reference temperature. The instrument can store up to 32 readings, which can also be sent to a printer or transferred to computer via DataWay and the RS232 interface.

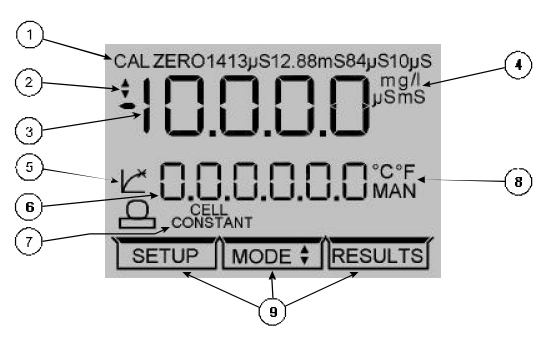

Display

Standard selection - indicates which type of standard is being used. Also indicates when a calibration is being performed.
Symbol - displayed during set-up of instrument parameters.
Primary display - 4½ digit. Provides direct readout in Conductivity or TDS of samples and standards.
Mode annunciators - shows selected measurement mode; Conductivity (µS or mS) and TDS (mg/l or g/l).
Endpoint symbol
Secondary display - 6 digit display. Provides direct readout of automatic or manual temperature. Scrolls and displays selected parameter information in set-up mode.
Status display - 2½ digit.
Mode annunciators - indicates temperature in °C or °F and whether the measurements are manually or automatically temperature compensated.
Mode tags - Each mode tag is highlighted when selected; SETUP, MODE or RESULTS.

Keypad

ESC used to switch the instrument on and to place into standby mode (only if power supply lead remains connected to the instrument). Also used to escape/exit a mode.
CAL / CLR used to select and perform a calibration sequence. This key is also used to clear readings from Memory. Used to select Abs/Rel mV in mV mode.
Print key used to initiate a print.
Up Arrow used for adjustment during set up, to scroll results and to toggle between mV and pH modes.
Down Arrow used for adjustment during set up, to scroll results and to toggle between mV and pH modes.
Left Arrow used for adjustment during set up and to move between mode tags.
Right Arrow used for adjustment during set up and to move between mode tags.
STO used to accept an entered value in set-up mode and to instigate a stored reading. This key can also be used as a CAL key during calibration.

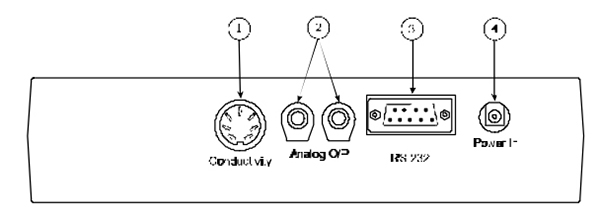

Rear panel layout

Conductivity Socket 7 pin DIN socket which allows the conductivity cell to be connected.
Analog Out 2 x 4mm sockets. Analogue output (buffered electrode potential).
Output Socket 9 way socket for RS232 connection.
Power In AC 9V I/P socket. 2.1 x 5.5mm socket allowing the power supply to be connected to the instrument.

Model	4510	4520
Conductivity range	6 auto–selected from 0 to 1999mS*	6 auto–selected from 0 to 1999mS*
Conductivity resolution	0.01µS to 1mS	0.01µS to 0.01S
Conductivity accuracy	±0.5% ±2 digits	±0.5% ±2 digits
Automatic standard recognition	10µS, 84µS, 1413µS, 12.88mS	10µS, 84µS, 1413µS, 12.88mS
Cell constant	0.010 to 19.999	0.010 to 19.999
TDS range	6 auto-selected from 0 –1999g/l*	6 auto selected ranges from 0 –1999g/l*
TDS resolution	0.01mg/l to 1g/l	0.01mg/l to 1g/l
TDS accuracy	±0.5% ±2 digits	±0.5% ±2 digits
EC Ratio	0.50 to 0.80	0.50 to 0.80
Resistivity range	NA	0–20Mohm
Resistivity resolution	NA	0.01Mohm
Resistivity accuracy	NA	±0.5% ±2 digits
Salinity range	NA	0–99.9g/l
Salinity resolution	NA	0.1g/l
Salinity accuracy	NA	0–35 ±1g/l, 35–99.9 ±3g/l
Temperature range	–10 to 105°C	–10 to 105°C
Temperature resolution	0.1°C	0.1°C
Temperature accuracy	±0.5°C	±0.5°C
ATC and manual	0 to 100°C	0 to 100°C
Temperature coefficient	0.00% to 4.00%/°C	0.00% to 4.00%/°C
Reference temperature	18, 20 or 25°C	18, 20 or 25°C
GLP	NA	Calibration reminder interval, alarm outputs and security code protected data
Outputs	Analogue and RS232	Analogue, RS232 and IrDA interface
Connector	7-pin DIN	7-pin DIN
Power	9V AC ±10% @ 50/60Hz	9V AC ±10% @ 50/60Hz
Size (l x w x d)	210 x 250 x 55mm	210 x 250 x 55mm
Weight	850g	850g
