0 reviews | Catalog: TESE-2A | UPC: 8427327434899 | Model: JBC TESE-2A
Precision Hot Air Station 230 Volt
List Price: $2,620.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(7)
(1)
(3)
(4)

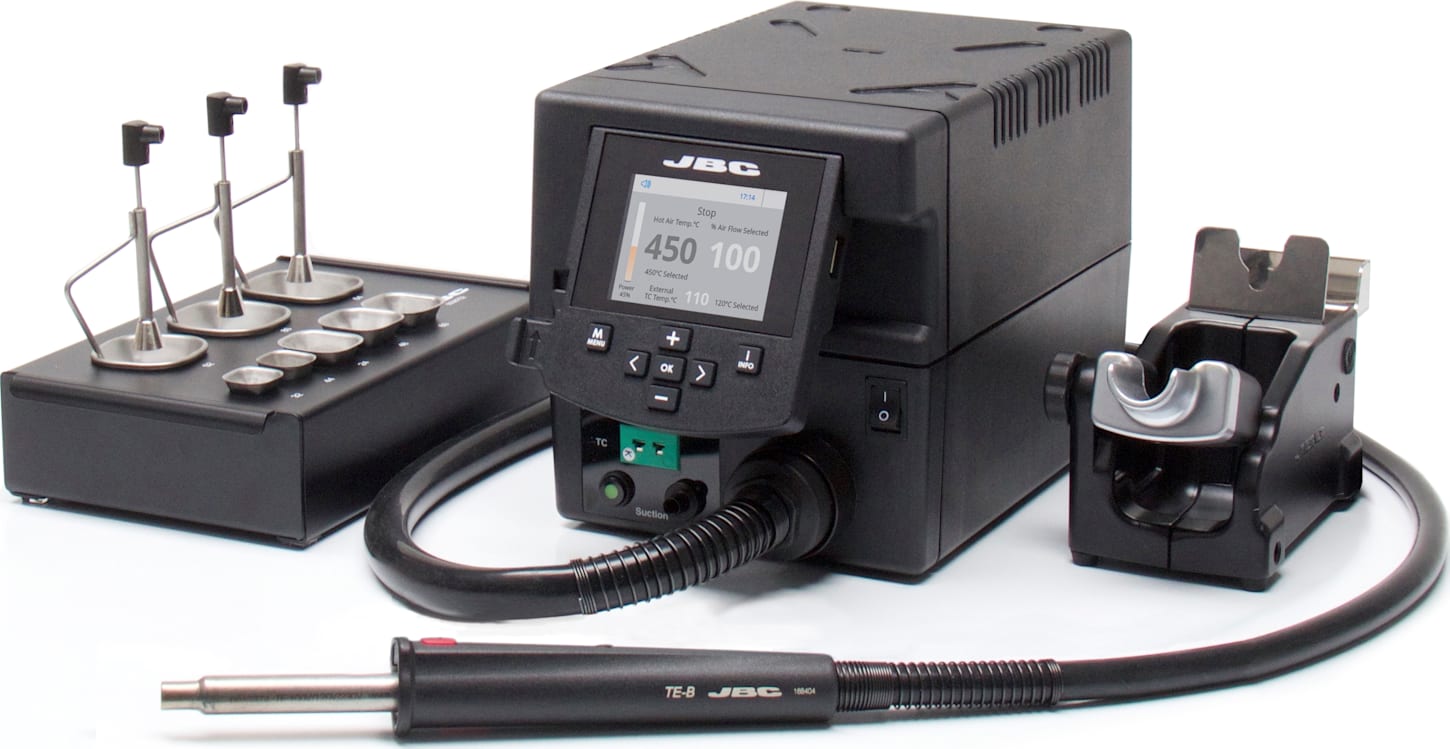

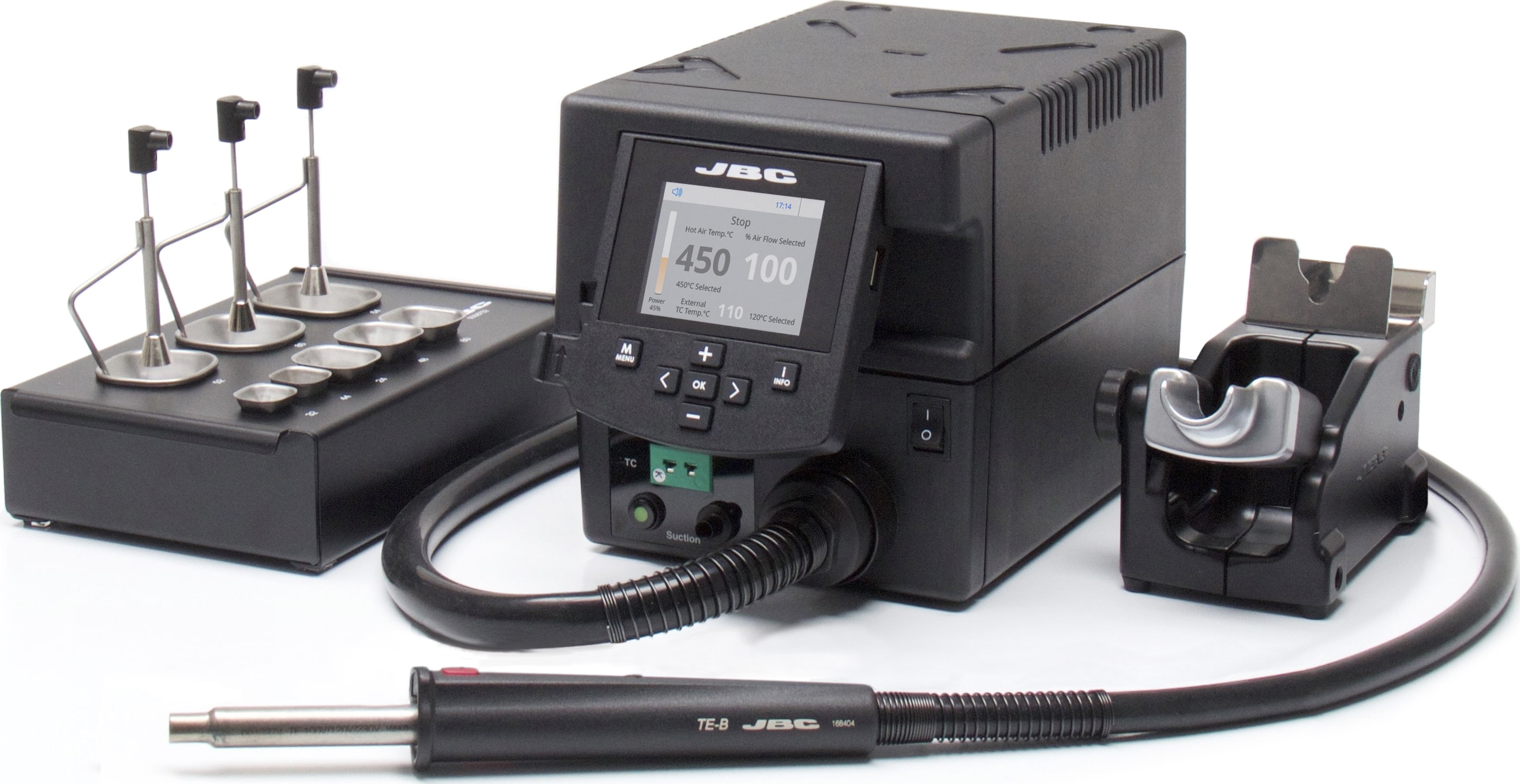

The JBC TESE-2A is a precision hot air station for repairing small and medium size surface mount components.
There are two work modes to choose from - manual and profile. In manual mode, the operator can set temperature values and air flow rate depending on the task. In profile model, the operator can set up and edit as many as 25 profiles for temperature and airflow.
In manual mode the operator can set temperature values and air flow rate depending on the task.
In this mode the operator can set up or edit as many as 25 profiles of temperature and air flow.
Users can read the temperature at a specific point on the PCB with the control thermocouple. This helps protect components or a specific area on the PCB, and provides greater precision when regulating the temperature. There are two work modes available for use with the control thermocouple:
The auto-stop function is a safety measure which guarantees the heat is automatically cut off when the tool is in the stand. This also means you save power and extend the life of the tip. There is also an auto start feature. When selected, the tool automatically heats up when lifted from the stand.
The JBC TESE-2A comes with a complete extractor desk, containing tripods, protectors and extractors. This enables users to quickly desolder, while simultaneously protecting adjacent components by concentrating heat on the selected area.
Choose the extractor, tripod or protector which best fits the component.
While you apply the heat to the component, the surrounding elements are protected.
Automatic withdrawal of the desoldered component.
Answers (1) - Asked by Anonymous
I have this question too (0)
The TESE-2A uses TE nozzles.
