0 reviews | Catalog: SRWS-1SB | UPC: 8427327487475 | Model: JBC SRWS-1SB
SMD Rework System Sm 120V Exc.
List Price: $5,400.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(7)
In Stock!
(0)
(1)
(4)
The JBC SRWS-1SB is a complete SMD rework system with multiple components. It includes the following:
The JBC JTSE-1A is a high powered hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs. Profiles mode There are two work modes to choose from - manual and profile. In manual mode, the operator can set temperature values and air flow rate depending on the task. In profile model, the operator can set up and edit as many as 25 profiles for temperature and airflow.
Manual mode In manual mode the operator can set temperature values and air flow rate depending on the task.
Profile mode In this mode the operator can set up or edit as many as 25 profiles of temperature and air flow.
Control thermocouple Users can read the temperature at a specific point on the PCB with the control thermocouple. This helps protect components or a specific area on the PCB, and provides greater precision when regulating the temperature. There are two work modes available for use with the control thermocouple:
Regulation: the station regulates the air temperature automatically to maintain the External Thermocouple (TC) temperature.
Protection: the station cuts the air supply off when the External Thermocouple (TC) temperature is reached.

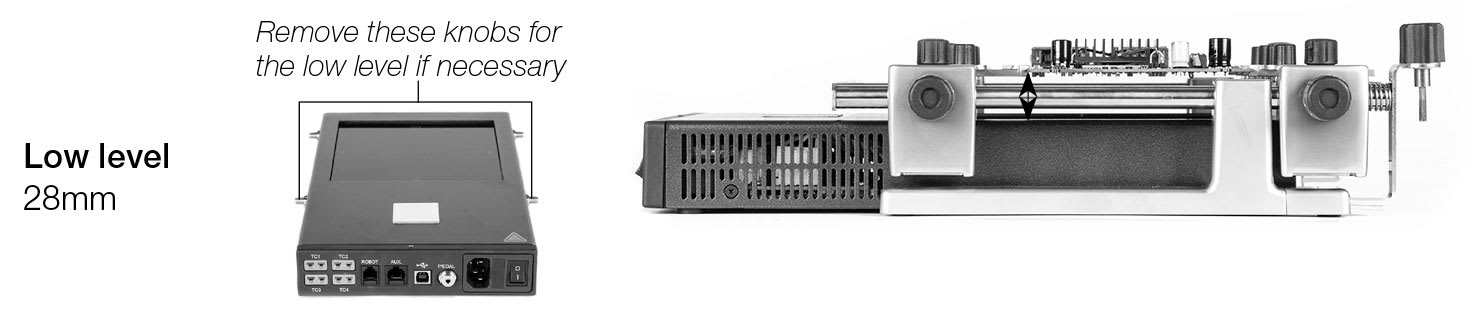

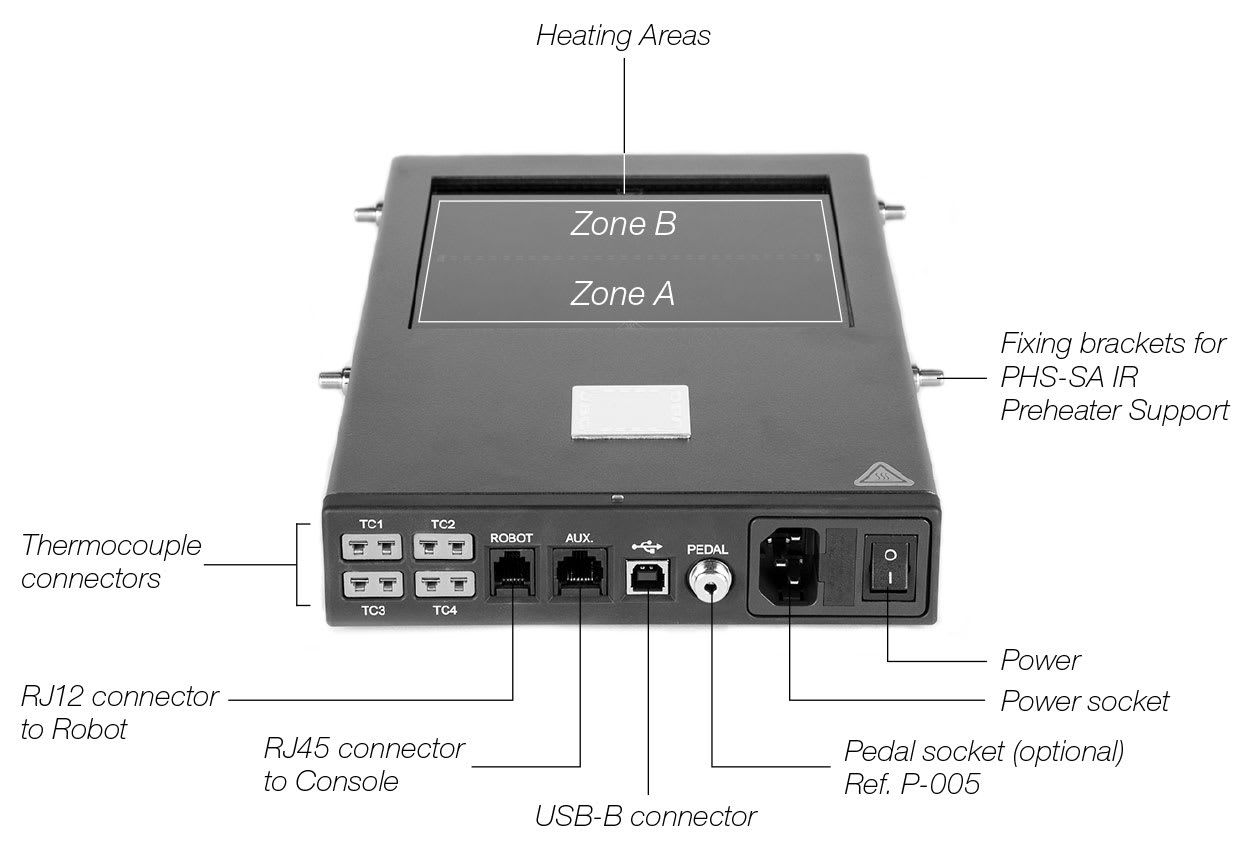

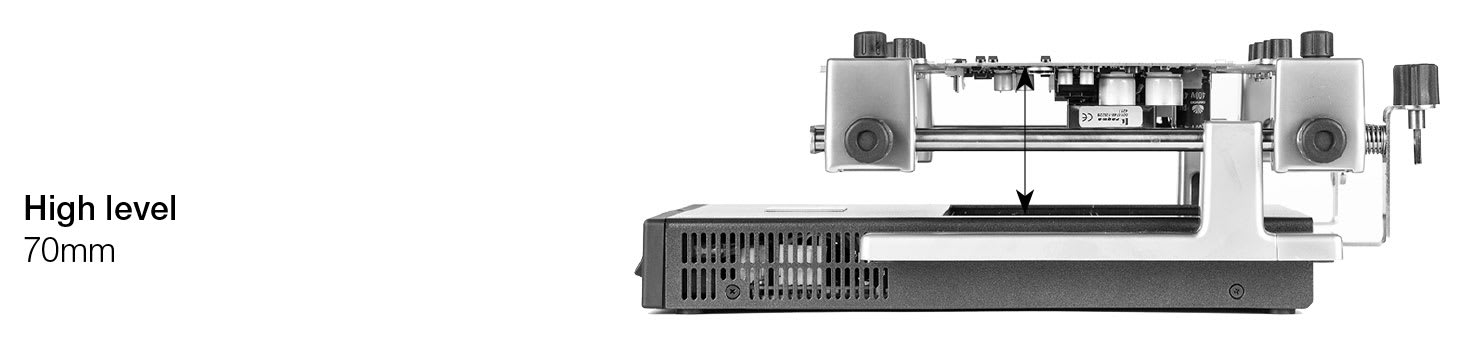

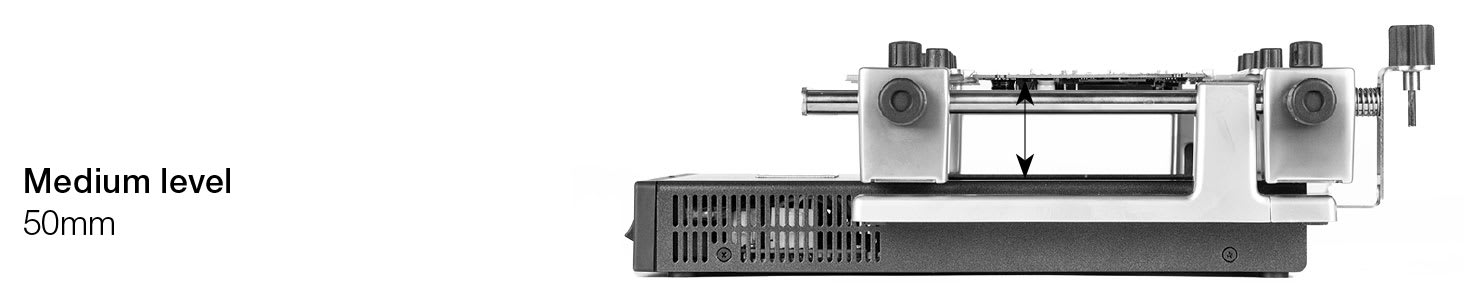

The JBC PHSE-K is a complete system for preheating multilayer PCBs and ideal for repetitive soldering jobs. It comes with a close loop thermocouple controlled Infrared Preheater Unit and with a PCB Support. The Infrared Preheater PHSE is used as a secondary heat source to reduce the amount of heat supplied by the main soldering tool, reducing thermal shock to components and PCBs. The PCB Support PHS-S is perfectly adapted to any type of PCBs by means of its many adjustable parts and its 3 adjustable clearance positions 28, 50 or 70 mm (1.1, 2 or 2.8 in).
It allows adjustment for 3 heights between the PCB and the Heating Area of the PHSE-A Heater Unit.
